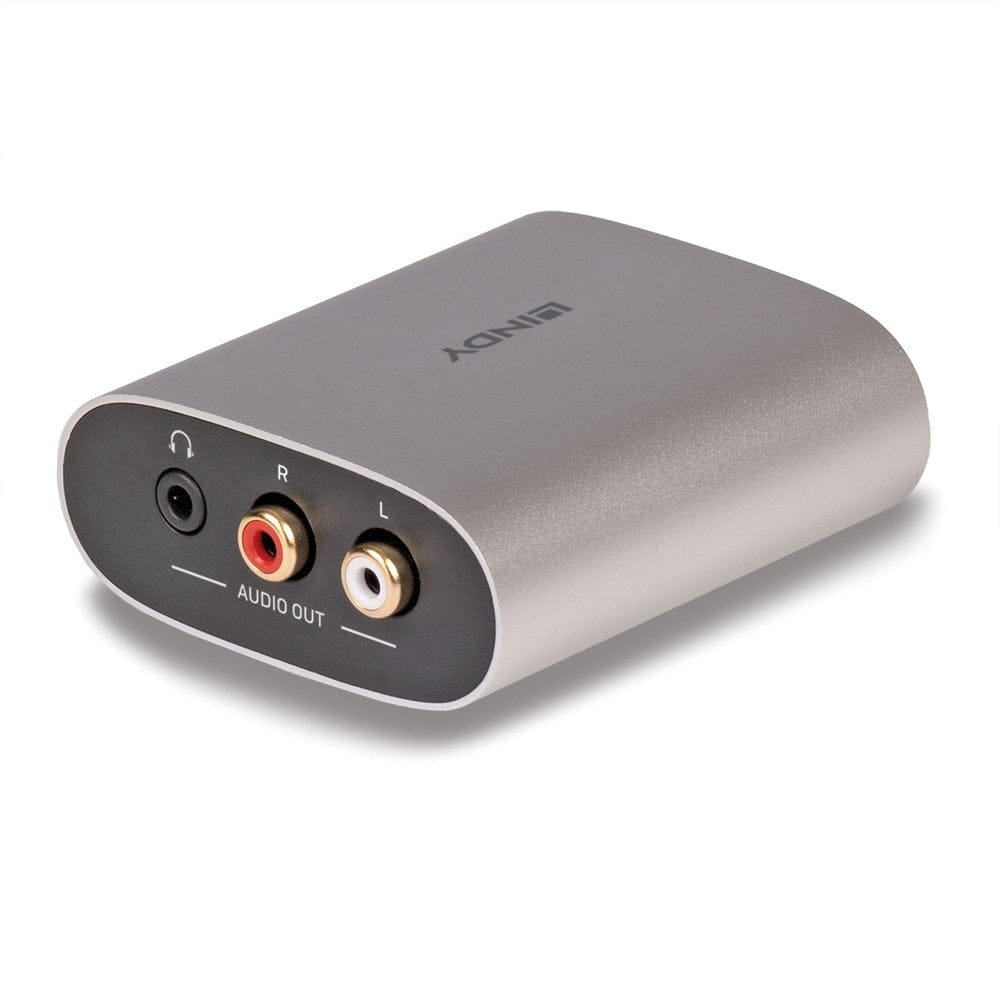

Lindy HDMI ARC Audio Downmix Decoder, Micro-USB, 5 V, 70 mm, 65 mm, 27 mm, 0 - 40 DegC
The Lindy HDMI ARC Audio Downmix Decoder of high quality audio signal to be simultaneously extracted and split to both digital and analog audio outputs, providing high quality audio and video performance, for a high quality audio experience of movies, music and games. Effortlessly adjust TV sound and speaker sound synchronously with CEC passthrough allowing you to increase or decreases the TV volume with your regular remote. The separate micro-USB port is used for power, via connection to a source devices USB port, avoiding the need for a separate PSU.
The converter s Dolby® Digital Decoder function ensures that Dolby® Digital audio signals are down-mixed to analogue stereo without any compression or loss in audio quality, and with support for PCM sample rates up to 192kHz and Dolby digital sample rates up to 48kHz, music and movies can be heard how the artist and sound engineers intended, with greater detail and clarity. Featuring flexible operation between all audio formats, and status LEDs, to indicate a Dolby Digital encoded audio source or for power, ensures simple, fuss-free installation and use.
The converter s Dolby® Digital Decoder function ensures that Dolby® Digital audio signals are down-mixed to analogue stereo without any compression or loss in audio quality, and with support for PCM sample rates up to 192kHz and Dolby digital sample rates up to 48kHz, music and movies can be heard how the artist and sound engineers intended, with greater detail and clarity. Featuring flexible operation between all audio formats, and status LEDs, to indicate a Dolby Digital encoded audio source or for power, ensures simple, fuss-free installation and use.
| Inputs | |
| USB connector type The type of USB connector/port that this product has. | Micro-USB |
| HDMI in Port (socket) for HDMI input. | 1 |
| Outputs | |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| Headphone out The socket for connecting headphones to the device. |
 |
| Technical details | |
| Frequency range The lowest and the hightest frequencies that can be inputted/produced. | 20 - 20000 Hz |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | SPHE8107S-AD |
| HDMI version | 1.3 |
| CEC pass-through |
|
| Output impedance | 100 Ω |
| Supported sample rates | 192 kHz |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Housing material What the casing of the product is made of. | Plastic |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Warranty period | 2 year(s) |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | 101 dB |
| Certification | California Proposition 65 |
| Power | |
| Operating voltage Defines the range of operating voltages available | 5 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 70 mm |
| Depth The distance from the front to the back of something. | 65 mm |
| Height The measurement of the product from head to foot or from base to top. | 27 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Cables included | USB Type-A to Micro-USB Type-B |
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 146 mm |
| Package depth The distance from the front to the back of the packaging. | 105 mm |
| Package height The distance from the top to the bottom of the packaging. | 65 mm |
| Package weight Weight of the packaged product. | 175 g |
| Package type The type of product package e.g. box. | Box |
| SKU | 788711 |
| MPN | 38362 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter, Audio Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
