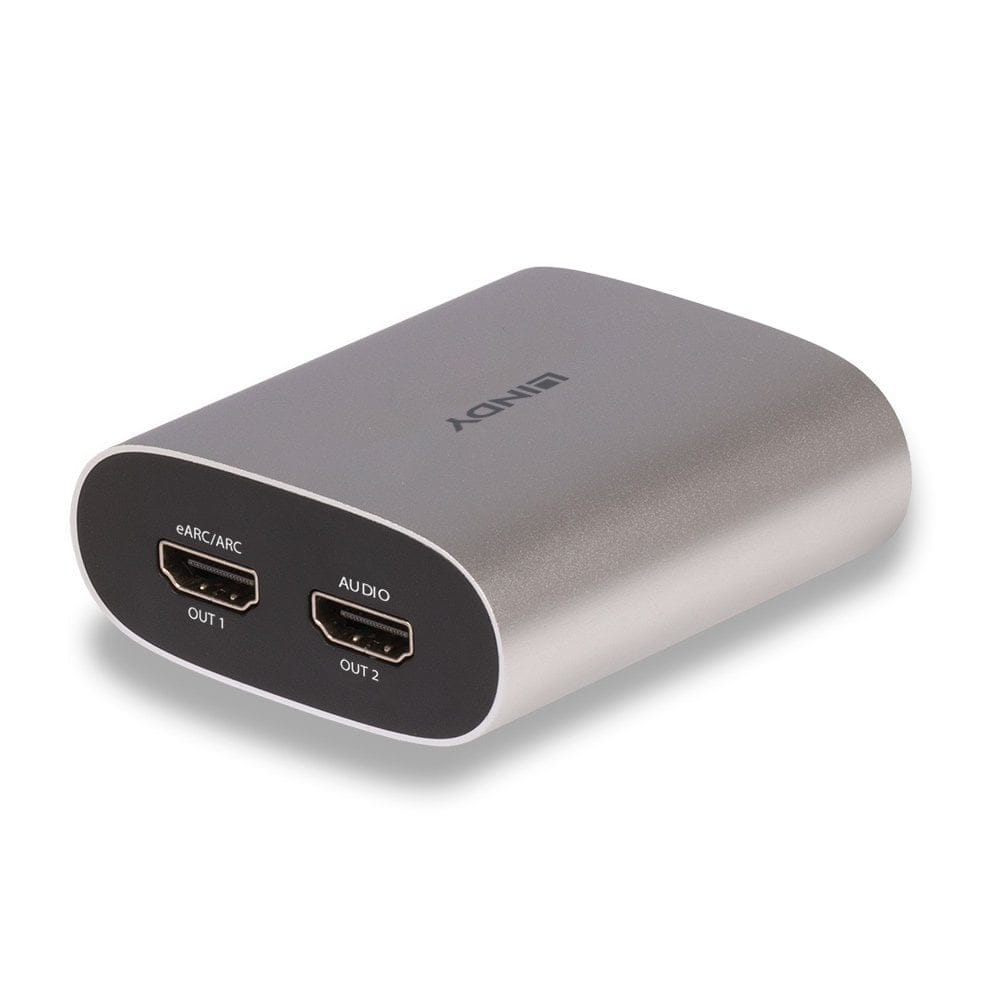

Lindy 4K60 HDMI eARC Extractor, Micro-USB B, 65 mm, 70 mm, 27 mm, 83 g, 0 - 40 DegC
The Lindy 4K HDMI extractor allows users to seamlessly extract digital audio from an HDMI Source and HDMI eARC display, while sending the video signal to a 4K UHD display. This is a perfect solution for separating audio signals too your AV Receiver or sound bar.
This extractor supports the full 18G HDMI 2.0 bandwidth to display 4K UHD 4096x2160@60Hz resolutions with additional pass-through support for the REC.2020 colour space that covers the wider colour gamut required for HDR (high dynamic range) content, for enhanced contrast and more lifelike colour. Featuring support for HDCP 2.2, this is ideal for use with the latest source devices including set-top boxes, games consoles and media players.
With support for multi-channel audio including 7.1 Channel audio this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to the audio device. HDMI High Bit Rate audio pass through also allows high-resolution audio files to playback without compression for a flawless music listening experience.
This extractor supports the full 18G HDMI 2.0 bandwidth to display 4K UHD 4096x2160@60Hz resolutions with additional pass-through support for the REC.2020 colour space that covers the wider colour gamut required for HDR (high dynamic range) content, for enhanced contrast and more lifelike colour. Featuring support for HDCP 2.2, this is ideal for use with the latest source devices including set-top boxes, games consoles and media players.
With support for multi-channel audio including 7.1 Channel audio this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to the audio device. HDMI High Bit Rate audio pass through also allows high-resolution audio files to playback without compression for a flawless music listening experience.
| Inputs | |
| USB 1.1 ports quantity Number of USB 1.1 ports (connecting interfaces) in the device. USB 1.1 was released in August 1998, fixing problems identified in 1.0, mostly related to using hubs. USB 1.1 was the earliest revision that was widely adopted. Usually coloured white. | 1 |
| USB connector type The type of USB connector/port that this product has. | Micro-USB B |
| HDMI in Port (socket) for HDMI input. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Outputs | |
| Number of HDMI outputs Port (socket) for HDMI output. | 2 |
| Technical details | |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 2.2 |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Sil9437CNUC |
| HDMI version | 2.0b |
| Supported sample rates | 192 kHz |
| Bit rate | 24 bit |
| Audio codecs | PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Audio playback formats | LPCM, PCM |
| Housing material What the casing of the product is made of. | Aluminium |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 65 mm |
| Depth The distance from the front to the back of something. | 70 mm |
| Height The measurement of the product from head to foot or from base to top. | 27 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 83 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Cables included | USB Type-A to Micro-USB Type-B |
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 65 mm |
| Package depth The distance from the front to the back of the packaging. | 70 mm |
| Package height The distance from the top to the bottom of the packaging. | 27 mm |
| Package weight Weight of the packaged product. | 191.6 g |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Power cable length | 1 m |
| SKU | 788723 |
| MPN | 38368 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
