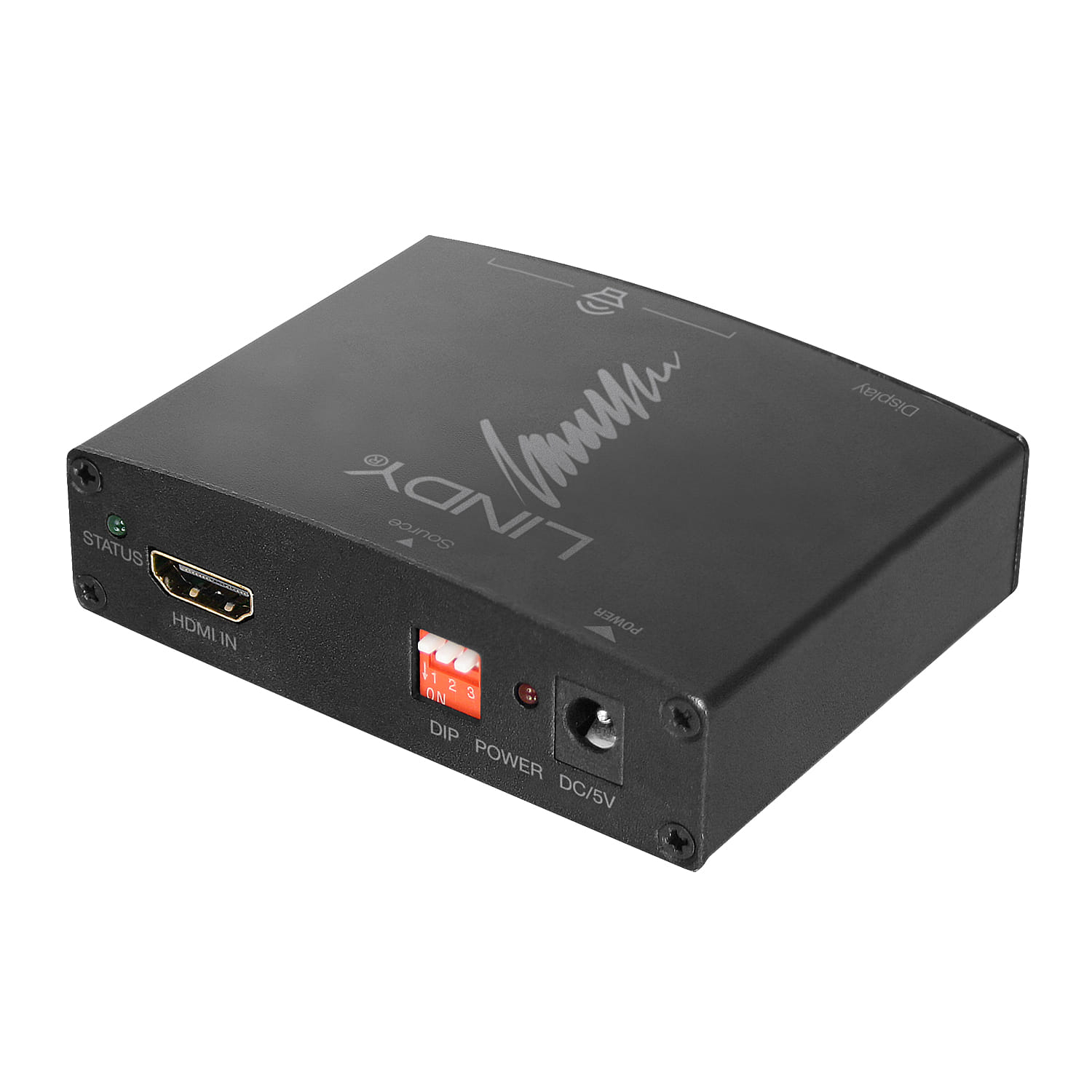

LINDY HDMI 4K Audio Extractor allows you to extract audio from your HDMI or MHL signal while sending the video signal to your HD display or projector
| Inputs | |
| HDMI in Port (socket) for HDMI input. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Outputs | |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| Digital audio coaxial out The socket in the device for the digital audio output. The signal is carried via a coaxial cable with an RCA connector. | 1 |
| Digital audio optical out The socket in the device for the digital audio output. The signal is carried via an optical cable with an TOSLINK connector. | 1 |
| S/PDIF out port S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors. |
|
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| Technical details | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 10200 Mbit/s |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 1.4 |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | EP91A2E |
| HDMI version | 1.4 |
| HDMI pass-through |
|
| CEC pass-through |
|
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| Supported sample rates | 192 kHz |
| Supported chroma subsampling | 4:4:4 |
| Audio codecs | Dolby Digital 2/5.1, DTS-HD |
| Accuracy | 0.1 dB |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Audio recording formats | LPCM |
| Housing material What the casing of the product is made of. | Metal |
| Sustainability certificates | REACH, RoHS |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5 W |
| Power note | 5.5/2.1mm DC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 65 mm |
| Depth The distance from the front to the back of something. | 88 mm |
| Height The measurement of the product from head to foot or from base to top. | 24 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 118 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -15 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Cables included | DC to USB Type-A |
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 202 mm |
| Package depth The distance from the front to the back of the packaging. | 144 mm |
| Package height The distance from the top to the bottom of the packaging. | 55 mm |
| Package weight Weight of the packaged product. | 250 g |
| Package type The type of product package e.g. box. | Box |
| SKU | 556493 |
| MPN | 38167 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
