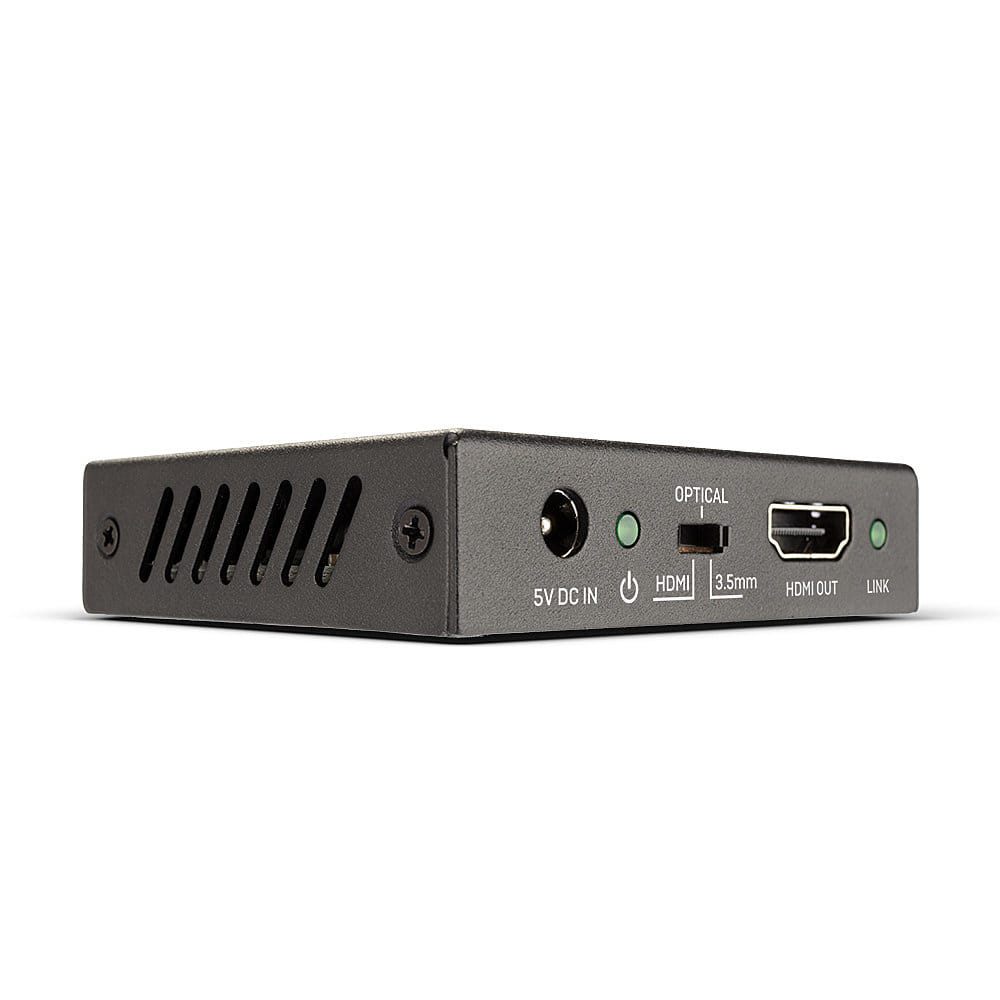

Lindy HDMI 18G Audio Embedder, 73.5 mm, 60.7 mm, 17 mm, 235 g, 0 - 40 DegC, -20 - 60 DegC
Embeds digital or analogue audio into an HDMI signal
TosLink (Optical) & 3.5mm audio inputs
4K UHD 4096x2160 @60Hz video pass-through, with additional support for HDR
CEC and High Bit Rate Audio Pass-through
2 year warranty
HDMI audio embedders are a great solution for connecting digital or analogue audio inputs and overlay a separate audio signal to the HDMI video content.
The Lindy HDMI 18G Audio Embedder allows the user to seamlessly embed both digital and analogue audio from a TosLink (Optical) or 3.5mm device and output to the HDMI signal, while also sending the video signal to a 4K UHD display or projector. This is a great solution for connecting separate audio inputs to compliment the video content such as in sports bars when playing alternative commentary over a live event or playing external music over digital advertising in a retail setup.
This embedder supports full 18G HDMI 2.0 bandwidth to display 4K UHD 4096x2160@60Hz resolutions with additional pass-through support for the REC.2020 colour space that covers the wider colour gamut required for HDR (high dynamic range) content, providing enhanced contrast and more lifelike colour.
Featuring support for HDCP 2.2, this device is ideal for use with the latest source devices including set-top boxes, games consoles and media players.
With support for multi-channel audio including Dolby Digital 5.1 via Optical and analogue stereo via a 3.5mm connection, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music.
HDMI High Bit Rate audio pass through also allows high-resolution audio files to playback without compression for a flawless music listening experience.
TosLink (Optical) & 3.5mm audio inputs
4K UHD 4096x2160 @60Hz video pass-through, with additional support for HDR
CEC and High Bit Rate Audio Pass-through
2 year warranty
HDMI audio embedders are a great solution for connecting digital or analogue audio inputs and overlay a separate audio signal to the HDMI video content.
The Lindy HDMI 18G Audio Embedder allows the user to seamlessly embed both digital and analogue audio from a TosLink (Optical) or 3.5mm device and output to the HDMI signal, while also sending the video signal to a 4K UHD display or projector. This is a great solution for connecting separate audio inputs to compliment the video content such as in sports bars when playing alternative commentary over a live event or playing external music over digital advertising in a retail setup.
This embedder supports full 18G HDMI 2.0 bandwidth to display 4K UHD 4096x2160@60Hz resolutions with additional pass-through support for the REC.2020 colour space that covers the wider colour gamut required for HDR (high dynamic range) content, providing enhanced contrast and more lifelike colour.
Featuring support for HDCP 2.2, this device is ideal for use with the latest source devices including set-top boxes, games consoles and media players.
With support for multi-channel audio including Dolby Digital 5.1 via Optical and analogue stereo via a 3.5mm connection, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music.
HDMI High Bit Rate audio pass through also allows high-resolution audio files to playback without compression for a flawless music listening experience.
| Inputs | |
| Digital audio optical in The socket in the device for the digital audio input. The signal is inputted via an optical cable with an TOSLINK connector. | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Outputs | |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| Technical details | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Certification | CE, FCC, RoHS, REACH |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 73.5 mm |
| Depth The distance from the front to the back of something. | 60.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 17 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 235 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Package width The distance from one side of the packaging to the other. | 115 mm |
| Package depth The distance from the front to the back of the packaging. | 85 mm |
| Package height The distance from the top to the bottom of the packaging. | 70 mm |
| Package weight Weight of the packaged product. | 306 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 788588 |
| MPN | 38203 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter, Audio Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
