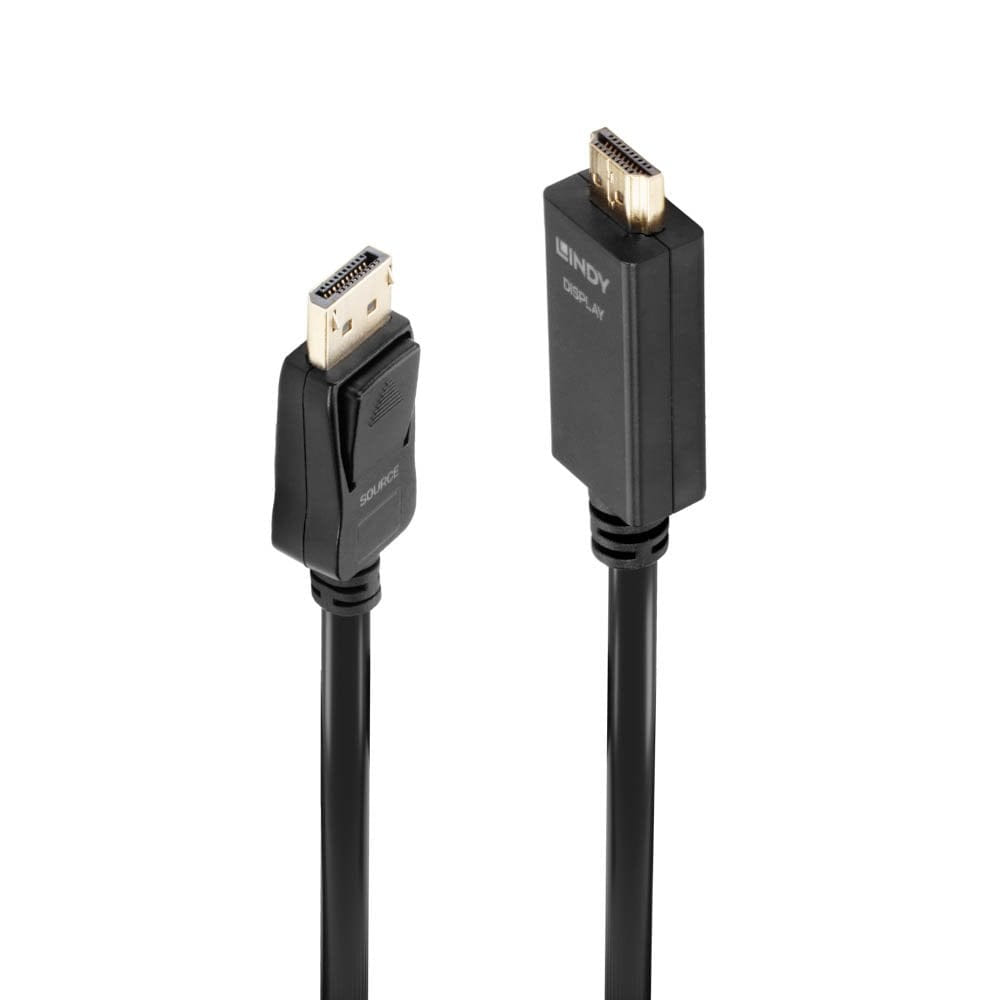

The Lindy DisplayPort to HDMI Cable is ideal for connecting a DisplayPort equipped source to an HDMI display. Supporting 4K UHD resolutions up to 3840x2160@30Hz, this cable is ideal for ensuring video is displayed in superior clarity.
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Cable length How long the cable is. | 1 m |
| Connector 1 This is the first connector in the device. | DisplayPort |
| Connector 2 This is the second connector in the device. | HDMI Type A (Standard) |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 10.2 Gbit/s |
| Bend radius (min) | 7.3 cm |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Conductor material | Tinned copper |
| Nominal attenuation | 100MHz~450MHz -2.44--5.099dB 450MHz~8100MHz -5.094~32.906dB |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Connector housing material | Polyvinyl chloride (PVC) / Acrylonitrile butadiene styrene (ABS) |
| Contact material | Copper |
| AWG wire size | 28 |
| Colour depth | 8 bit |
| Colour sampling | 4:4:4 |
| Cable shielding The protective layer for the cable, typically made of plastic. | Aluminum braid |
| Certification | CE, UKCA, FCC, RoHS, REACH, UL, California Proposition 65 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 80 °C |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 7.3 mm |
| Connector 1 dimensions (WxDxH) | 36.4 x 20.5 x 9.4 mm |
| Connector 2 dimensions (WxDxH) | 37.5 x 20.5 x 10.5 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package type The type of product package e.g. box. | Polybag |
| SKU | 556430 |
| MPN | 36921 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
