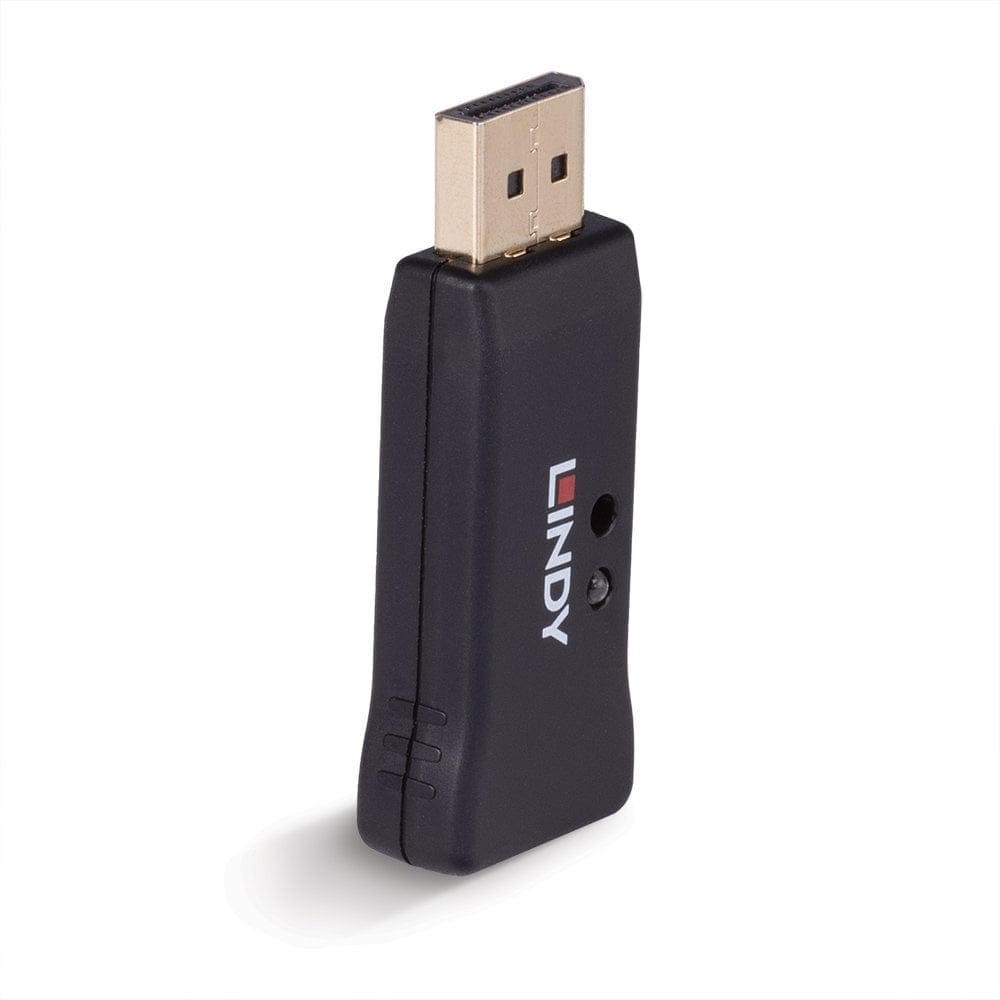

Lindy DisplayPort 1.4 EDID Emulator, 7680 x 4320 pixels, 800 x 600,1024 x 768,1280 x 1024,1280 x 720,1280 x 960,1366 x 768,1600 x 1200,1680 x 1050,1920 x..., 32.4 Gbit/s, 2.0 channels, LPCM, Black
The Lindy DisplayPort 1.4 EDID Emulator Adapter is designed for systems that require an uninterrupted signal to overcome EDID related issues that commonly occur when using AV equipment such KVM s, Extenders, Splitters and Switches.
The Emulator also features LED indicators to ensure a quick simple installation process and with support for resolutions up to 7620x4320@30Hz or 3840x2160@144Hz HDR (Via cloning), HDCP 2.2 and DPCP 2.0 pass-through, this emulator is perfect for use with Ultra HD 4K monitors, Displays and source equipment.
A headless EDID adapter enables a simulated connection on the video source device without requiring an actual monitor to be connected.
With the small-scale and minimalistic design, this is a handy connectivity solution for both AV and IT installers to ensure legacy and new DPequipmentworks seamlessly with no compromise onperformance.
This adapter can be used to quickly and easily clone the EDID data from the DP display so that the graphics card has direct access to the correct data from the display, the cloning process takes less than 10 seconds;Alternativelythe EDID Emulator is configured with a preset EDID which uses the most common resolutions/timing combinations. Please see the technical information section for a full breakdown.
Note: When EDID emulator is in headless mode rebooting/restarting will cause the resolution to default to 3840x2160@60Hz, 4:2:2, 8-bit.
The Emulator also features LED indicators to ensure a quick simple installation process and with support for resolutions up to 7620x4320@30Hz or 3840x2160@144Hz HDR (Via cloning), HDCP 2.2 and DPCP 2.0 pass-through, this emulator is perfect for use with Ultra HD 4K monitors, Displays and source equipment.
A headless EDID adapter enables a simulated connection on the video source device without requiring an actual monitor to be connected.
With the small-scale and minimalistic design, this is a handy connectivity solution for both AV and IT installers to ensure legacy and new DPequipmentworks seamlessly with no compromise onperformance.
This adapter can be used to quickly and easily clone the EDID data from the DP display so that the graphics card has direct access to the correct data from the display, the cloning process takes less than 10 seconds;Alternativelythe EDID Emulator is configured with a preset EDID which uses the most common resolutions/timing combinations. Please see the technical information section for a full breakdown.
Note: When EDID emulator is in headless mode rebooting/restarting will cause the resolution to default to 3840x2160@60Hz, 4:2:2, 8-bit.
| Features | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 7680 x 4320 pixels |
| Video resolutions The amount of detail that can be seen in the video image. | 800 x 600,1024 x 768,1280 x 1024,1280 x 720,1280 x 960,1366 x 768,1600 x 1200,1680 x 1050,1920 x 1080,1920 x 1200,2048 x 1536,2560 x 1440,3840 x 2160 |
| Bandwidth | 32.4 Gbit/s |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 2.0 channels |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | LPCM |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DisplayPort |
| Number of video inputs | 1 |
| Number of video outputs | 1 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), UKCA |
| Warranty period | 2 year(s) |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 25.2 mm |
| Depth The distance from the front to the back of something. | 51.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 12.1 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 12 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 136 mm |
| Package depth The distance from the front to the back of the packaging. | 138 mm |
| Package weight Weight of the packaged product. | 26 g |
| SKU | 787802 |
| MPN | 32118 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | DisplayPort Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
