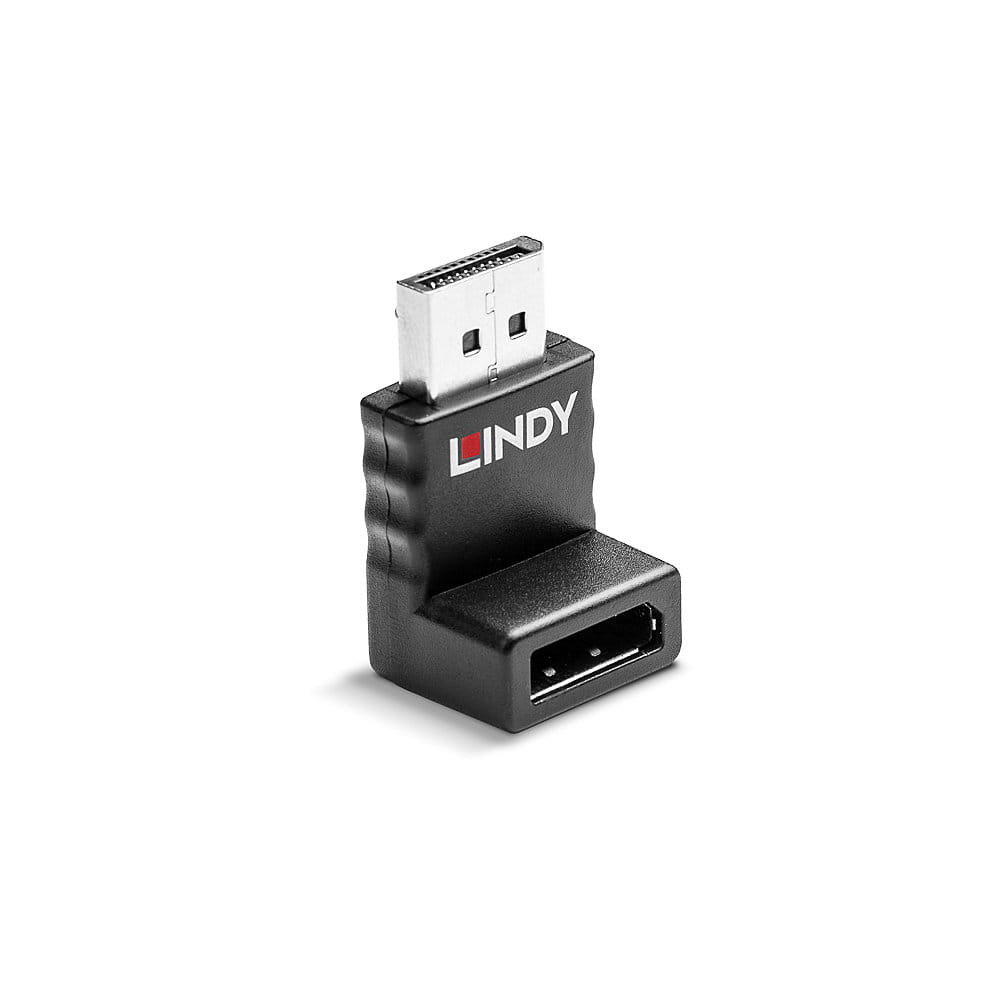

Lindy DisplayPort 1.2 Upward Angled Adapter, DisplayPort, DisplayPort, Black
The Lindy DisplayPort 1.2 upward angled adapter is a compact solution for connecting DisplayPort cables to DP displays or devices with recessed ports, or within limited space where cable connector sizing may affect installation. This adapter allows for a 90Deg connection from ports that are situated at the bottom of a display, recessed within the housing and require a connection away from the display, or for an upward connection if ports are situated on the back of the display or PC.
With DisplayPort 1.2 support, this adapter can be used with DisplayPort 1.2 cables, devices and monitors while also being backwards compatible with previous DisplayPort specifications. 4K UHD 3840x2160@60Hz 4:4:4 8bit resolutions are supported by the adapter, ensuring this is an ideal tool within wall mounted digital signage installations, gaming setups or educational spaces, with no lasting impact on a connected cables strain relief or lifespan.
Please note: it is common for desktop PCs to have DP ports function in the opposite configuration. If this is applicable, please check whether this or the opposing adapter (41366) is required.
With DisplayPort 1.2 support, this adapter can be used with DisplayPort 1.2 cables, devices and monitors while also being backwards compatible with previous DisplayPort specifications. 4K UHD 3840x2160@60Hz 4:4:4 8bit resolutions are supported by the adapter, ensuring this is an ideal tool within wall mounted digital signage installations, gaming setups or educational spaces, with no lasting impact on a connected cables strain relief or lifespan.
Please note: it is common for desktop PCs to have DP ports function in the opposite configuration. If this is applicable, please check whether this or the opposing adapter (41366) is required.
| Ports & interfaces | |
| Connector 1 This is the first connector in the device. | DisplayPort |
| Connector 2 This is the second connector in the device. | DisplayPort |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Polyvinyl chloride (PVC) |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 21.6 Gbit/s |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Certification | RoHS, REACH & California Proposition 65 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 75 °C |
| Relative humidity | 20 - 75% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 28 mm |
| Depth The distance from the front to the back of something. | 23.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 19.9 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 10 g |
| Packaging data | |
| Package type The type of product package e.g. box. | Polybag |
| SKU | 789071 |
| MPN | 41365 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | DisplayPort Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
