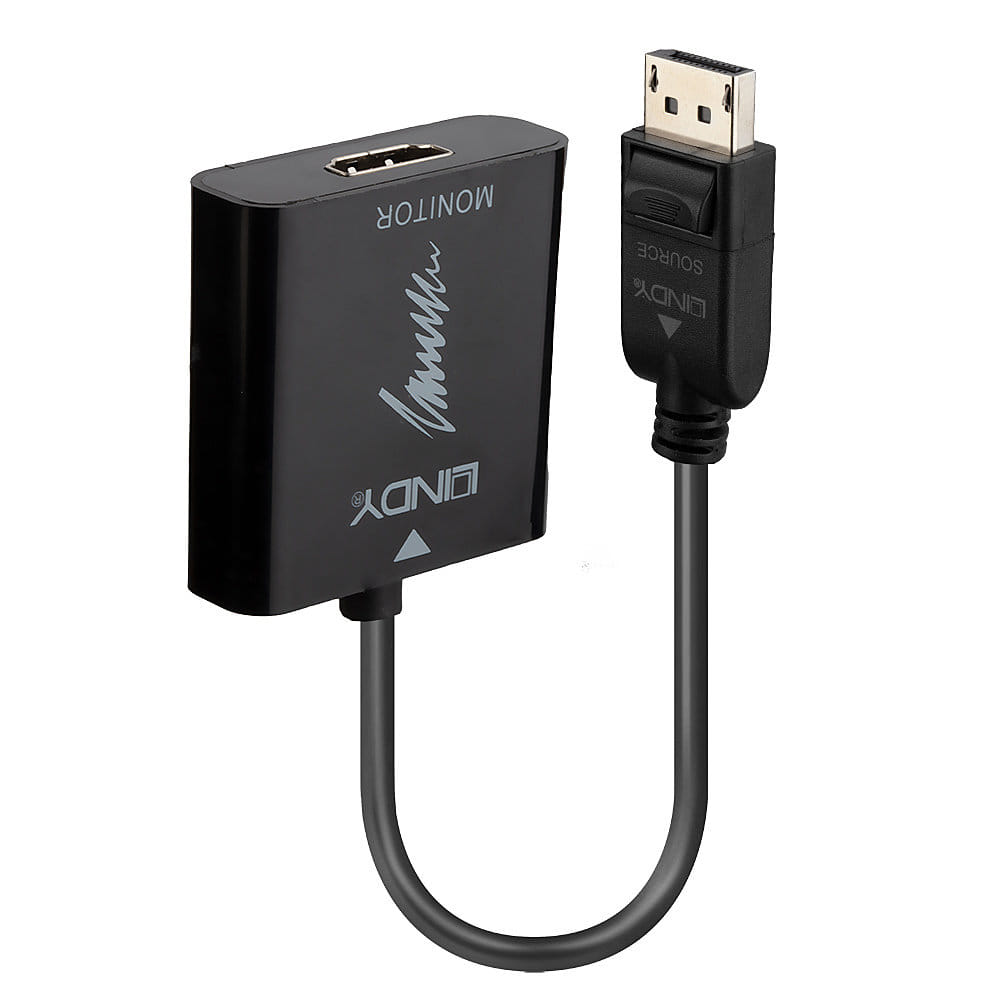

This DisplayPort 1.2 to HDMI 4K Adapter allows you to connect a DisplayPort 1.2 equipped computer to a 4K HDMI monitor, TV or projector
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Cable length How long the cable is. | 1.5 m |
| Connector 1 This is the first connector in the device. | DisplayPort |
| Connector 2 This is the second connector in the device. | HDMI Type A (Standard) |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| HDMI version | 2.0a |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| HDCP version | 2.2 |
| DisplayPort version | 1.2 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Supported video modes The video modes that can be displayed by the device. | 2160p |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 18 Gbit/s |
| Bend radius (min) | 5.5 cm |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | PS176 |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Thermoplastic elastomer (TPE) |
| Colour depth | 8 bit |
| Colour sampling | 4:4:4 |
| Converter type | Active video converter |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 5 mm |
| Connector 1 dimensions (WxDxH) | 31.5 x 20 x 9 mm |
| Connector 2 dimensions (WxDxH) | 45 x 45 x 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 20 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 160 mm |
| Package depth The distance from the front to the back of the packaging. | 160 mm |
| Package height The distance from the top to the bottom of the packaging. | 20 mm |
| Package type The type of product package e.g. box. | Polybag |
| Package weight Weight of the packaged product. | 45 g |
| SKU | 556703 |
| MPN | 41068 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter, DisplayPort Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
