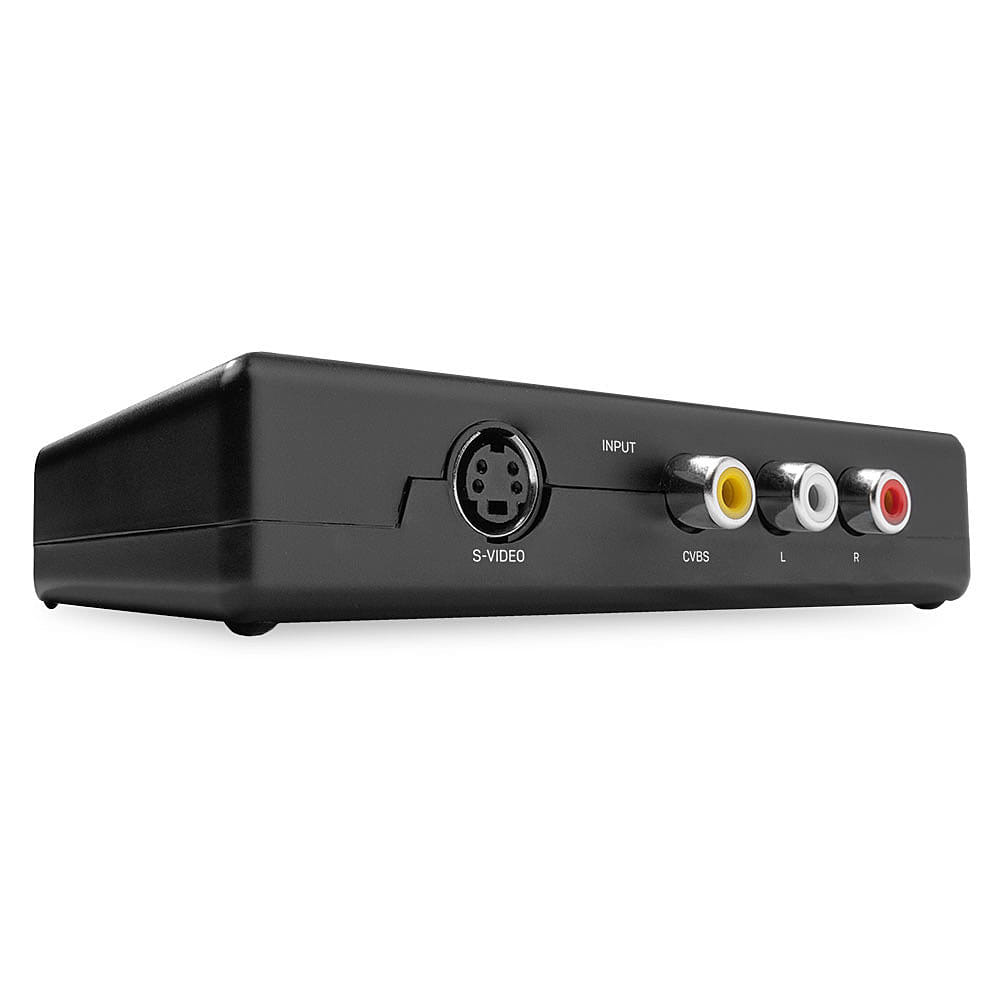

Lindy Composite / S-Video to HDMI Converter with Audio, CE, FCC, RoHS, REACH, 576i, 720p, 1080p, NTSC, PAL, Composite + S-Video, HDMI + RCA, 0 - 70 DegC
Easily connect legacy Composite, S-Video & Audio source devices to modern HDMI displays
Upscales low resolution video to crisp 720 or 1080p
Supports both PAL & NTSC input devices
Connects to external audio devices via a 3.5mm audio output
2 Year warranty
The Lindy Composite / S-Video to HDMI Converter with Audio is a compact device which allows the connection of legacy analogue AV equipment with modern HDMI displays or projectors.
The converter features a built in up-scaler which enhances low resolution video, providing the option to output both Standard, or High definition HDMI signals, creating a high quality viewing experience, perfect for home office, security, and CCTV applications.
Compatibility is maximised with support for both PAL & NTSC source devices while a low power requirement through USB creates greater flexibility with installation.
Please Note: Audio through the HDMI connection is not supported on HDMI 2.0 displays.
Upscales low resolution video to crisp 720 or 1080p
Supports both PAL & NTSC input devices
Connects to external audio devices via a 3.5mm audio output
2 Year warranty
The Lindy Composite / S-Video to HDMI Converter with Audio is a compact device which allows the connection of legacy analogue AV equipment with modern HDMI displays or projectors.
The converter features a built in up-scaler which enhances low resolution video, providing the option to output both Standard, or High definition HDMI signals, creating a high quality viewing experience, perfect for home office, security, and CCTV applications.
Compatibility is maximised with support for both PAL & NTSC source devices while a low power requirement through USB creates greater flexibility with installation.
Please Note: Audio through the HDMI connection is not supported on HDMI 2.0 displays.
| Features | |
| Certification | CE, FCC, RoHS, REACH |
| Video | |
| Supported video modes The video modes that can be displayed by the device. | 576i, 720p, 1080p |
| Analog signal format system The supported protocols for exchanging analog signals. | NTSC, PAL |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | Composite + S-Video |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | HDMI + RCA |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 113 mm |
| Depth The distance from the front to the back of something. | 71 mm |
| Height The measurement of the product from head to foot or from base to top. | 24 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 84 g |
| Packaging data | |
| Manual |
|
| Quantity The number of products there are. | 1 |
| Package width The distance from one side of the packaging to the other. | 190 mm |
| Package depth The distance from the front to the back of the packaging. | 145 mm |
| Package height The distance from the top to the bottom of the packaging. | 60 mm |
| Package weight Weight of the packaged product. | 294 g |
| SKU | 698522 |
| MPN | 38394 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
