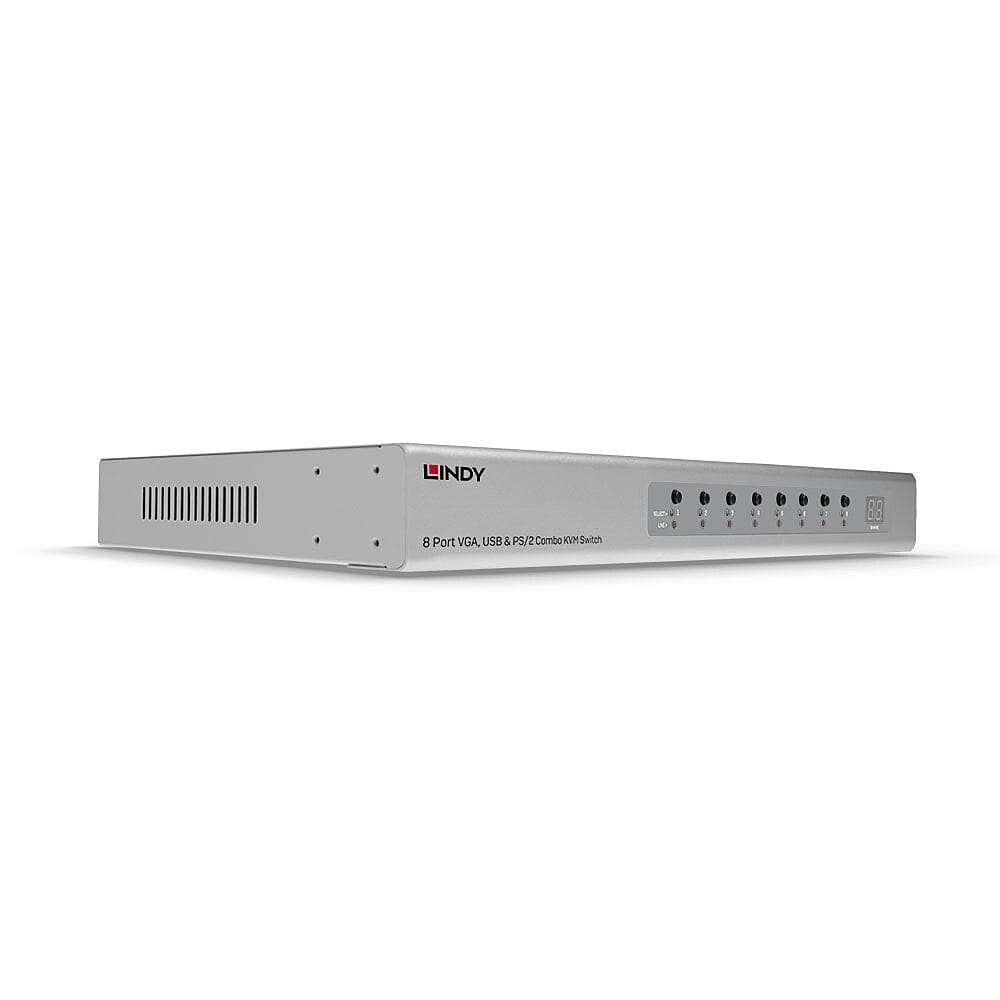

Lindy 8 Port VGA and USB Combo KVM Switch, 2048 x 1536 pixels, Full HD, Rack mounting, 1U, Silver
The Lindy Combo KVM Switch is a hardware solution that allows direct control of multiple computers using a single keyboard, mouse and VGA monitor. It s ideal for system administrators who want to control multiple computers or servers from a single, centralised location.
The switch occupies only a single 1U space in a 19andrdquo; rack and supports screen resolutions of up to 2048x1536@60Hz, great for ensuring optimum clarity if used in digital media or graphic design scenarios. It provides 3 simple switching modes, via keyboard hotkeys, front panel buttons and On-Screen Display; setup and management options can be access only via the OSD.
A local console can be connected to the 2 USB and VGA ports on the rear panel while Daisy Chain VGA ports can be used to connect up to 8 Lindy Combo series switches in order to manage to up to 128 multi platform computers with security features and password access, perfect for large-scale control systems in transport hubs or surveillance centres. All the functions are accessible from the administrator through a simple to use On-Screen Display while LEDs on the front panel show the online and selected PC to ensure continuous control and monitoring.
PCs and connected KVM switches can be remove easily with hot plug support, allowing for maintenance to take place without the need for powering down all connected devices, essential within always on environments such as data centres or traffic management setups.
Computers or servers can be connected to the 8 host ports on the rear panel via dedicated VGA and USB KVM cables (not included).These are available in different lengths:
1m - 32185
2m - 32186
3m - 32187
The switch occupies only a single 1U space in a 19andrdquo; rack and supports screen resolutions of up to 2048x1536@60Hz, great for ensuring optimum clarity if used in digital media or graphic design scenarios. It provides 3 simple switching modes, via keyboard hotkeys, front panel buttons and On-Screen Display; setup and management options can be access only via the OSD.
A local console can be connected to the 2 USB and VGA ports on the rear panel while Daisy Chain VGA ports can be used to connect up to 8 Lindy Combo series switches in order to manage to up to 128 multi platform computers with security features and password access, perfect for large-scale control systems in transport hubs or surveillance centres. All the functions are accessible from the administrator through a simple to use On-Screen Display while LEDs on the front panel show the online and selected PC to ensure continuous control and monitoring.
PCs and connected KVM switches can be remove easily with hot plug support, allowing for maintenance to take place without the need for powering down all connected devices, essential within always on environments such as data centres or traffic management setups.
Computers or servers can be connected to the 8 host ports on the rear panel via dedicated VGA and USB KVM cables (not included).These are available in different lengths:
1m - 32185
2m - 32186
3m - 32187
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 8 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 8 |
| Console ports | VGA (D-Sub) |
| Console USB ports quantity | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1536 pixels |
| Video bandwidth | 60 Hz |
| Daisy chain |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Housing material What the casing of the product is made of. | Metal |
| Cascadable |
|
| Certification | CE, FCC, California Proposition 65 |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| DC input voltage | 9 V |
| Input current | 2 A |
| External power adapter |
|
| Sustainability | |
| Sustainability certificates | REACH, RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 220 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.5 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 570 mm |
| Package depth The distance from the front to the back of the packaging. | 250 mm |
| Package height The distance from the top to the bottom of the packaging. | 110 mm |
| Package weight Weight of the packaged product. | 3.3 kg |
| Packaging content | |
| Cables included | Daisy chain cable |
| Manual |
|
| AC adapter included |
|
| Rack mount kit |
|
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| SKU | 788876 |
| MPN | 39526 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
