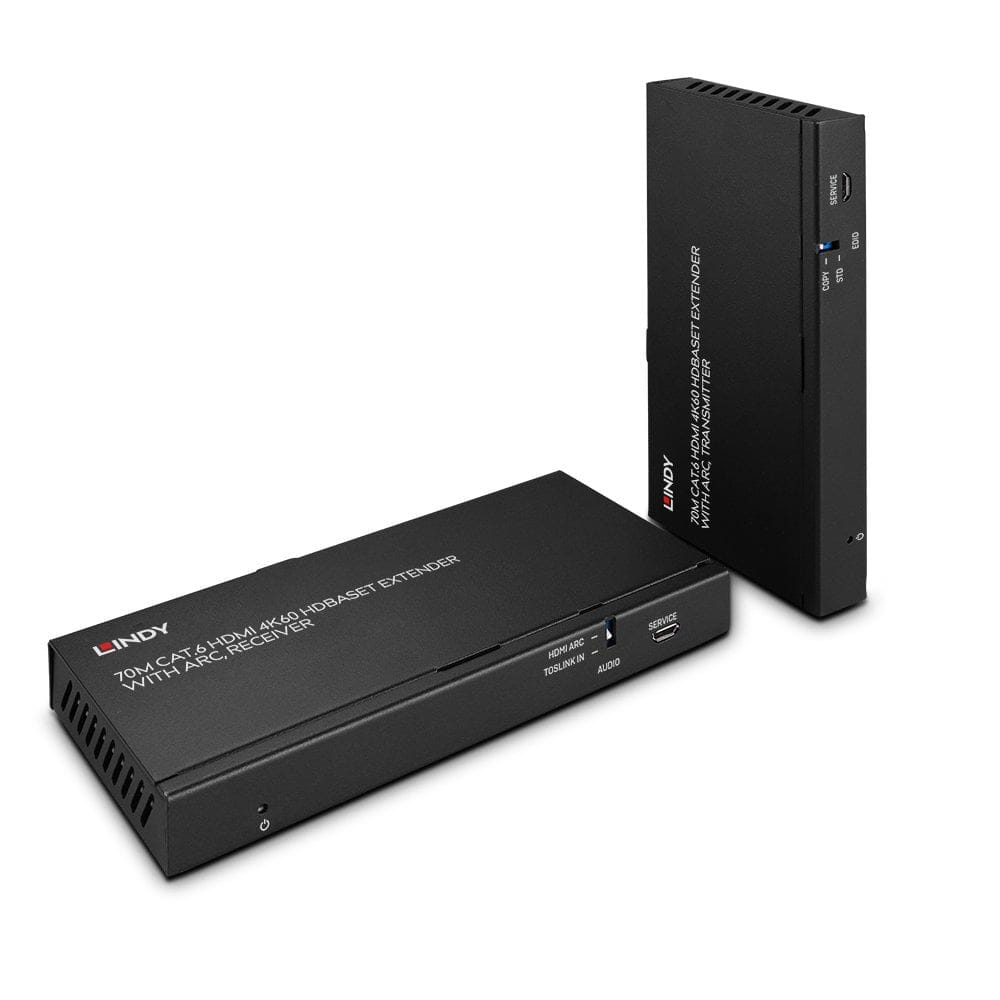

Lindy 70m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Extender with ARC, 3840 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
The Lindy 70m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
ARC support over HDMI allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the dip-switch on the receiver unit.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit. Ideal for example when power outlets are limited at the receiver end of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above cable. Using a different cable type, introducing couplers, wall plates or patch panels may result in a reduction of possible distances.
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
ARC support over HDMI allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the dip-switch on the receiver unit.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit. Ideal for example when power outlets are limited at the receiver end of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above cable. Using a different cable type, introducing couplers, wall plates or patch panels may result in a reduction of possible distances.
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | VS010-A0 |
| Maximum refresh rate | 60 Hz |
| RS-232 pass-through |
 |
| Bidirectional Bidirectional script support is the capability of a computer system to correctly display bi-directional text. The term is often shortened to BiDi or bidi. Bi-directional text is text containing text in both text directionalities, both right-to-left (RTL) and left-to-right (LTR). It generally involves text containing different types of alphabets. |
|
| Infrared (IR) frequency range | 20 - 60 kHz |
| Bandwidth | 18 Gbit/s |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| HDCP version | 2.2 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | California Proposition 65 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| HDMI version | 2.0 |
| Digital audio optical input type | TOSLINK |
| Digital audio optical output type | TosLink |
| 3.5 mm (1/8-inch) in |
|
| 3.5 mm (1/8-inch) out |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power requirements | 24VDC 1A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 140 mm |
| Depth The distance from the front to the back of something. | 65 mm |
| Height The measurement of the product from head to foot or from base to top. | 18 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 760 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 245 mm |
| Package depth The distance from the front to the back of the packaging. | 75 mm |
| Package height The distance from the top to the bottom of the packaging. | 185 mm |
| Package weight Weight of the packaged product. | 940 g |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Manual |
|
| Packaging content | HDBaseT HDMI Extender, Transmitter HDBaseT HDMI Extender, Receiver IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m 4 x Mounting Ears & 8 x Screws 2 x 3-Pin Terminal Block Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual |
| Technical details | |
| Special features | PoC, ARC |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Warranty period | 2 year(s) |
| SKU | 788696 |
| MPN | 38349 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter, HDMI Adapter |
