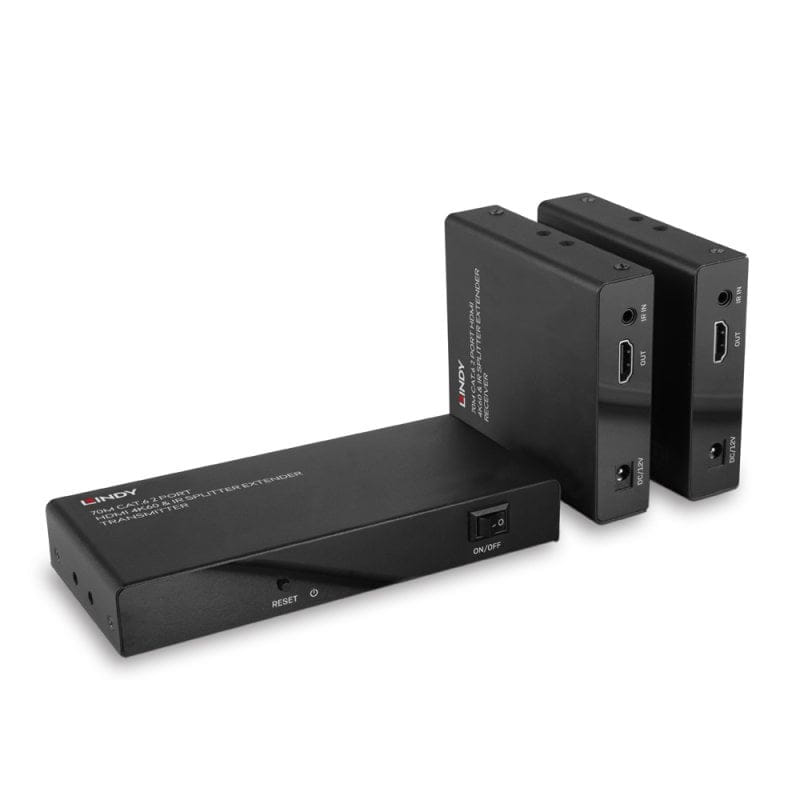

Lindy 70m Cat.6 2 Port HDMI 4K60 & IR Splitter Extender, 3840 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
The Lindy 70m Cat.6 2 Port HDMI 4K60 Splitter Extender is a simple, professional solution for distribution of 4K HDMI® signals to multiple displays using standard Cat.6 network cables.
Scalable Content Distribution
This Cat.6 splitter allows for distribution to up 2 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters (same unit or the 4 port version 38262) for even larger scale content distribution.
Immersive 4K and HDR Support
With support for resolutions up to 3840x2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs.
Seamless IR Control
The included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup.
Simultaneous PoC Distribution
The Cat.6 HDMI 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations.
Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.
Scalable Content Distribution
This Cat.6 splitter allows for distribution to up 2 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters (same unit or the 4 port version 38262) for even larger scale content distribution.
Immersive 4K and HDR Support
With support for resolutions up to 3840x2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs.
Seamless IR Control
The included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup.
Simultaneous PoC Distribution
The Cat.6 HDMI 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations.
Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | GSV2006 & GSV5100 |
| EDID management |
 |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Bandwidth | 18 Gbit/s |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | LPCM |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| HDCP version | 2.2 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Propositon 65 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 2 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 2 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 100 x 88 x 23 mm |
| Receiver weight | 199 g |
| Transmitter dimensions (WxDxH) | 154 x 103 x 23 mm |
| Transmitter weight | 263 g |
| Packaging data | |
| Quantity per pack | 3 pc(s) |
| Package width The distance from one side of the packaging to the other. | 292 mm |
| Package depth The distance from the front to the back of the packaging. | 238 mm |
| Package height The distance from the top to the bottom of the packaging. | 55 mm |
| Package weight Weight of the packaged product. | 1.26 kg |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Cables included | IR |
| Manual |
|
| Mounting brackets included |
|
| Packaging content | 70m Cat.6 2 Port HDMI® 4K60 Splitter Extender 2 x Receivers IR Emitter Cable, 1.2m 2 x IR Receiver Cable, 1.2m 2 x Transmitter Mounting Brackets & Screws 4 x Receiver Mounting Brackets & Screws Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual |
| SKU | 828469 |
| MPN | 38385 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter, HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
