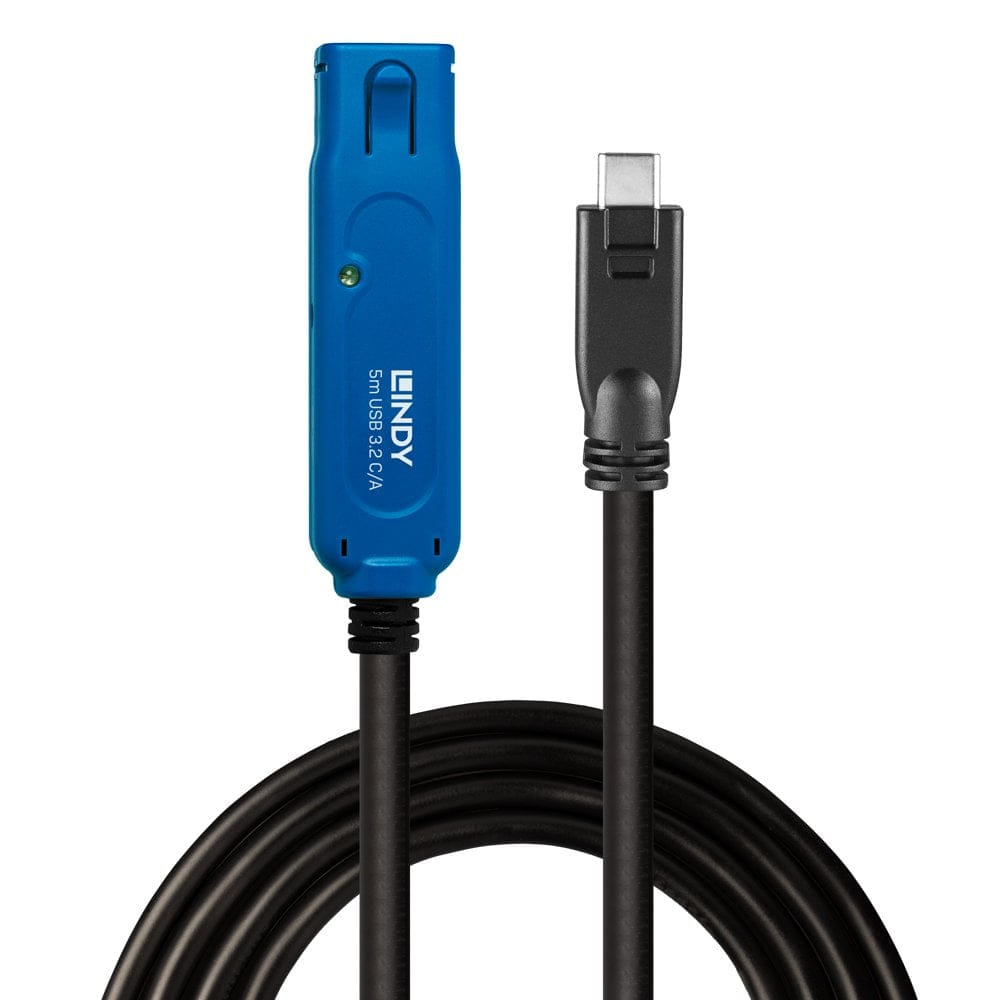

Lindy 5m USB 3.2 Gen 1 C/A Active Extension Pro, 5 m, USB C, USB A, USB 3.2 Gen 1 (3.1 Gen 1), Black
The Lindy USB 3.2 Gen 1 C/A Active Extension Cable Pro is a high performance active cable that allows access to USB peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.
This 5m USB 3.2 C/A Active Extension Cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at about 40m (depending on the cable configurations used).
Please note that only the USB 3.2 C/A Active Extension Pro 5m (Nr. 43380) or the 8m version (Nr. 43381) can be connected directly to your computer. Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any segment of the Extension Pro System (Nr. 43157, 43158, 43229, 43361). If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it s power supply as the final part of the extension.
If a USB Type C device is to be connected, a USB 3.0 Active Extension Type A to C (no. 43375 or 43376) can also be used as the last segment.
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
This 5m USB 3.2 C/A Active Extension Cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at about 40m (depending on the cable configurations used).
Please note that only the USB 3.2 C/A Active Extension Pro 5m (Nr. 43380) or the 8m version (Nr. 43381) can be connected directly to your computer. Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any segment of the Extension Pro System (Nr. 43157, 43158, 43229, 43361). If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it s power supply as the final part of the extension.
If a USB Type C device is to be connected, a USB 3.0 Active Extension Type A to C (no. 43375 or 43376) can also be used as the last segment.
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Features | |
| Cable length How long the cable is. | 5 m |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 This is the first connector in the device. | USB C |
| Connector 2 This is the second connector in the device. | USB A |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 28/28/24 |
| Connector material | Nickel |
| Contact material | Brass |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shielding |
 |
| Connector shield material | Aluminium |
| Connector housing material | Plastic |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Transmission medium | Twisted pair |
| Nominal attenuation | 0.064MHz - <0.08dB 0.256MHz - <0.11dB 0.512MHz - <0.13dB 0.772MHz - <0.15dB 1.0MHz - <0.20dB 4MHz - <0.39dB 8MHz - <0.57dB 12MHz - <0.67dB 24MHz - <0.95dB 48MHz - <1.35dB 96MHz - <1.90dB 200MHz - <3.20dB 400MHz - <5.80dB |
| Certification | California Proposition 65 |
| Power | |
| Power note | 2.5/0.7mm DC |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 5 mm |
| Bend radius (min) | 5.5 cm |
| Connector 1 dimensions (WxDxH) | 12.4 x 39.7 x 9 mm |
| Connector 2 dimensions (WxDxH) | 20 x 80 x 13 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 220 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 230 mm |
| Package depth The distance from the front to the back of the packaging. | 198 mm |
| Package height The distance from the top to the bottom of the packaging. | 63 mm |
| Package weight Weight of the packaged product. | 420 g |
| Package type The type of product package e.g. box. | Carton |
| Packaging content | |
| Manual |
|
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Technical details | |
| Warranty period | 2 year(s) |
| SKU | 789416 |
| MPN | 43380 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
