Lindy 5m CAT.6A S/FTP Locking Cable - Grey

Item No:
758915
MPN:
47606
$17.95
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
  • Unavailable at Northmead Store
Lindy 47606, 5 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45

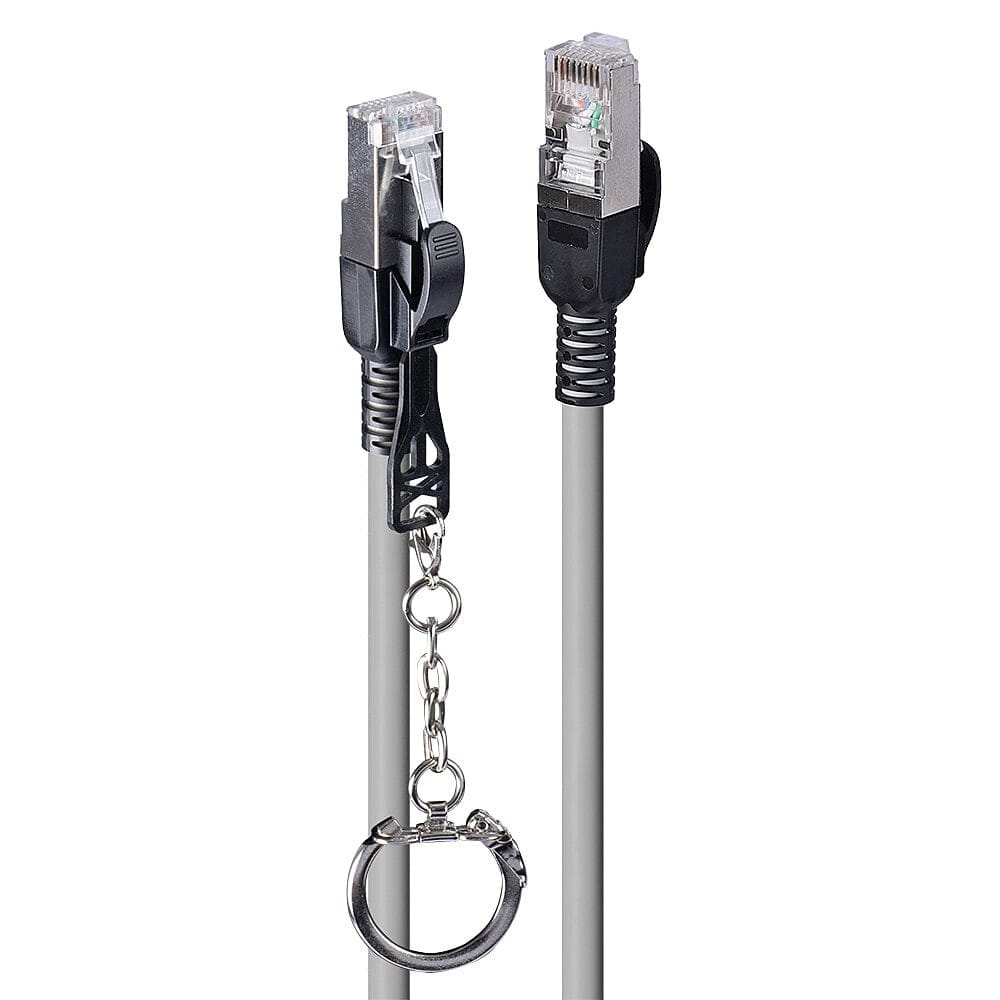

5m Cat.6A S/FTP LSZH Network Security Cable, Grey

Twisted Pair Patch Cable with RJ45 connectors
Cat.6A S/FTP PIMF, LSZH
Locking connectors to prevent unauthorized access only accessible with the included key
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

The Lindy Cat.6A Security Network Cable is a simple yet highly effective way of preventing accidental or malicious removal of cables on your network. Fully tamper resistant, Security key locks in the plug for added physical security allowing for removal only with the supplied key.

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Features
Product colour The colour e.g. red, blue, green, black, white. Grey
Cable length How long the cable is. 5 m
Cable standard The category of the cable, which is determined by performance characteristics and test requirements. Cat6a
Cable shielding The protective layer for the cable, typically made of plastic. S/FTP (S-STP)
Connector 1 This is the first connector in the device. RJ-45
Connector 2 This is the second connector in the device. RJ-45
Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. Male
Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. Male
Connector 1 form factor Straight
Connector 2 form factor Straight
Connector contacts plating What the connector contacts are covered with (layer on top). Nickel
Connector shielding
Connector shield material Aluminium
Jacket material Low smoke zero halogen (LSZH)
Conductor material Copper
AWG wire size 26
Frequency 500 MHz
Bend radius (min) 7.2 cm
Nominal attenuation 49.3dB/100m @ 500MHz
Certification RoHS, REACH, UL
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. -10 - 60 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -10 - 60 °C
Weight & dimensions
Connector 1 dimensions (WxDxH) 11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH) 11.6 x 21.5 x 8.5 mm
Packaging data
Package type The type of product package e.g. box. Polybag
More Information
SKU 758915
MPN 47606
Brand Lindy
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Product Use General
Warranty Period 10 Years Warranty
Warranty Contact https://www.lindy.com.au/
