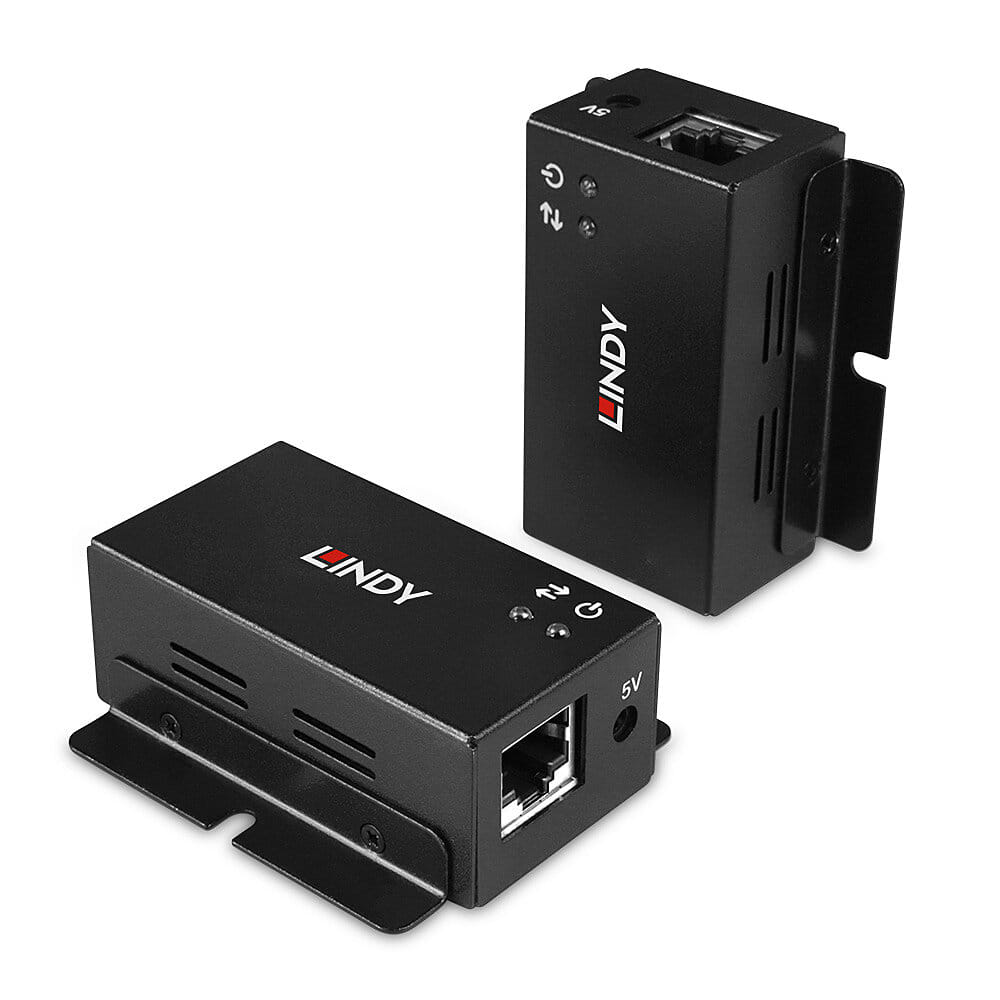

Lindy 50m 2 Port USB 2.0 Cat. 6 Extender, Network transmitter & receiver, 50 m, 480 Mbit/s, Cat5e, Cat6, NS1021, Black
This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 50m. A standard, low cost Cat.6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
| Performance | |
| Type Characteristics of the device. | Network transmitter & receiver |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 50 m |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 480 Mbit/s |
| Cable types supported | Cat5e, Cat6 |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | NS1021 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 3 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Quantity per pack | 1 pc(s) |
| Power | |
| Input current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 125 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Transmitter width | 6.02 cm |
| Transmitter depth | 6.7 cm |
| Transmitter height | 2.37 cm |
| Transmitter weight | 195 g |
| Receiver width | 6.02 cm |
| Receiver depth | 6.7 cm |
| Receiver height | 2.6 cm |
| Receiver weight | 195 g |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Packaging content | |
| Cables included | USB |
| Manual |
|
| AC adapter included |
|
| SKU | 789425 |
| MPN | 43386 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter, USB Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
