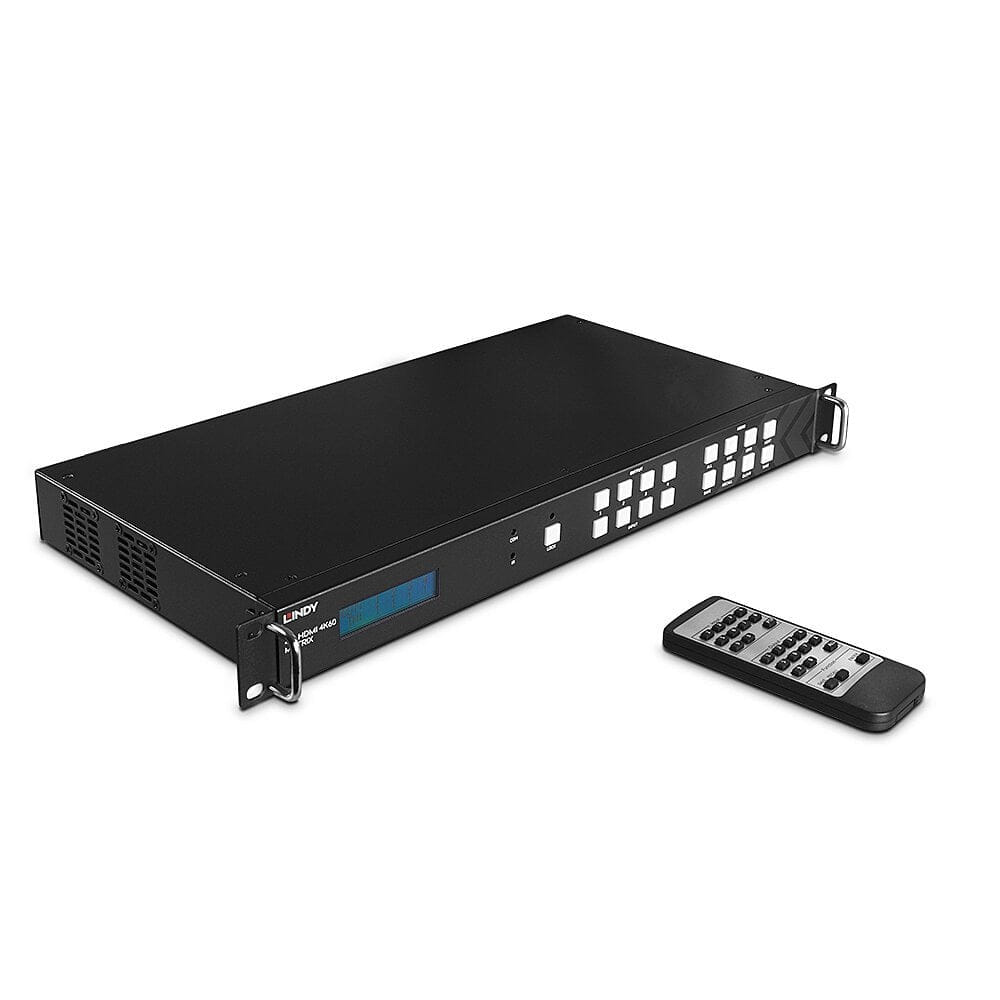

Lindy 4x4 HDMI 4K60 Matrix with Video Wall Scaling, Black, 3840 x 2160, Metal, LED, Buttons, 100 - 240 V
The Lindy 4x4 HDMI 4K60 Matrix with Video Wall Scaling is the professional solution for distributing content from several source devices to many HDMI displays, or for creating eye-catching video wall setups. Supporting resolutions up to 4K@60Hz, content can be shown in excellent clarity, great for ensuring a high-quality video experience in sports bars, retail stores or multiple consecutive locations in larger installations. Resolutions can easily be scaled and controlled by the user to ensure the optimum, or consistent, resolution is always displayed.
As well as providing a professional 4x4 matrix switching function, this device can create customisable wall displays in a variety of layouts. This provides the user with a range of flexible display options for their installation and allows the device to be used in a range of specialised environments; including transport hubs, points of sale and hospitality. Analogue audio ports also allow for 2-channel audio extraction, to add immersive stereo audio to the content on screen.
The matrix also provides instant seamless switching between source devices and displays, a crucial feature for use in real time operation centre scenarios such as traffic monitoring, stock market floors or security setups. Controlled via independent IR as well as LAN and push button switching, this matrix ensures minimum effort is required of the user when creating their installation, while RS-232 control also allows for integration into larger control systems.
Professional EDID management ensures maximum compatibility with both the source devices and displays.
As well as providing a professional 4x4 matrix switching function, this device can create customisable wall displays in a variety of layouts. This provides the user with a range of flexible display options for their installation and allows the device to be used in a range of specialised environments; including transport hubs, points of sale and hospitality. Analogue audio ports also allow for 2-channel audio extraction, to add immersive stereo audio to the content on screen.
The matrix also provides instant seamless switching between source devices and displays, a crucial feature for use in real time operation centre scenarios such as traffic monitoring, stock market floors or security setups. Controlled via independent IR as well as LAN and push button switching, this matrix ensures minimum effort is required of the user when creating their installation, while RS-232 control also allows for integration into larger control systems.
Professional EDID management ensures maximum compatibility with both the source devices and displays.
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Scaled resolutions | 3840 x 2160 |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Display type Type of display (screen) e.g. LCD. | LED |
| EDID management |
|
| LED indicators |
|
| Control type The way in which the device is controlled. | Buttons |
| Video | |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 1.4 |
| Ports & interfaces | |
| HDMI in Port (socket) for HDMI input. | 4 |
| Number of HDMI outputs Port (socket) for HDMI output. | 4 |
| HDMI version | 2.0 |
| Audio output The type of audio output that the device produces, and the connector(s). | 4 |
| RS-232 input ports | 1 |
| RJ-45 ports quantity | 1 |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| Power consumption (max) The maximum amount of power used by the device. | 60 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 430 mm |
| Depth The distance from the front to the back of something. | 220 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.18 kg |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Warranty period | 2 year(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 50% |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 565 mm |
| Package depth The distance from the front to the back of the packaging. | 83 mm |
| Package height The distance from the top to the bottom of the packaging. | 413 mm |
| Package weight Weight of the packaged product. | 5 kg |
| Package type The type of product package e.g. box. | Box |
| SKU | 788606 |
| MPN | 38238 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
