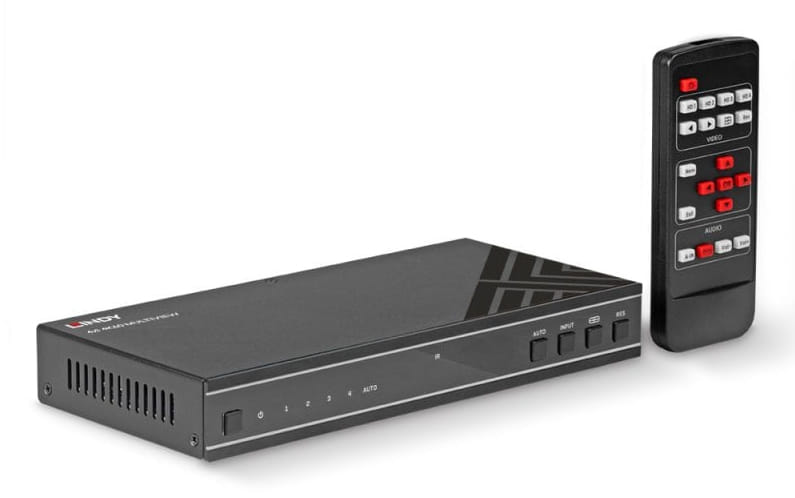

Lindy 4x1 4K60 HDMI Seamless Multiview Switch, HDMI, Metal, Black, 60 Hz, 3840 x 2160, 18 Gbit/s
This HDMI® 4x1 Multi-View Switch is a high-performance video switch designed for 4K displays, enabling signals from up to four different Ultra HD sources to be seamlessly integrated for simultaneous display on a single monitor. With four distinct viewing modes (Quad-View, Full Screen, Picture in Picture, and Dual Video), this Multi-View switch accommodates the monitoring of multiple video sources in various configurations supporting Ultra HD 4K resolutions on both input and output.
In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different applications such as;
Digital Presentations
CCTV Surveillance & Control
Video Conference & Meeting rooms;
The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other.
In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different applications such as;
Digital Presentations
CCTV Surveillance & Control
Video Conference & Meeting rooms;
The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other.
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 5 |
| HDMI in Port (socket) for HDMI input. | 4 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| Features | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160 |
| Bandwidth | 18 Gbit/s |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| HDCP version | 2.2 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 12 V |
| AC adapter input voltage | 2.5 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 219 mm |
| Depth The distance from the front to the back of something. | 111 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 610 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 280 mm |
| Package depth The distance from the front to the back of the packaging. | 179 mm |
| Package height The distance from the top to the bottom of the packaging. | 78 mm |
| Package weight Weight of the packaged product. | 1.08 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Manual |
|
| Cables included | HDMI |
| Screws included |
|
| Packaging content | 1 x 4K60 HDMI 4x1 Multiview Seamless UHD Video Switcher 1 x IR Remote Control 1 x 3pin-3.81mm Phoenix connector (male) 1 x 38KHz IR Wideband Receiver cable (1.5 Meters) 2 x Mounting Ears 4 x Machine Screws (KM3*4) 4 x Rubber Feet 1 x 12v/2.5A Locking Power Adapter 1 x User Manual |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -4 - 140 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Technical details | |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| SKU | 828460 |
| MPN | 38228 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
