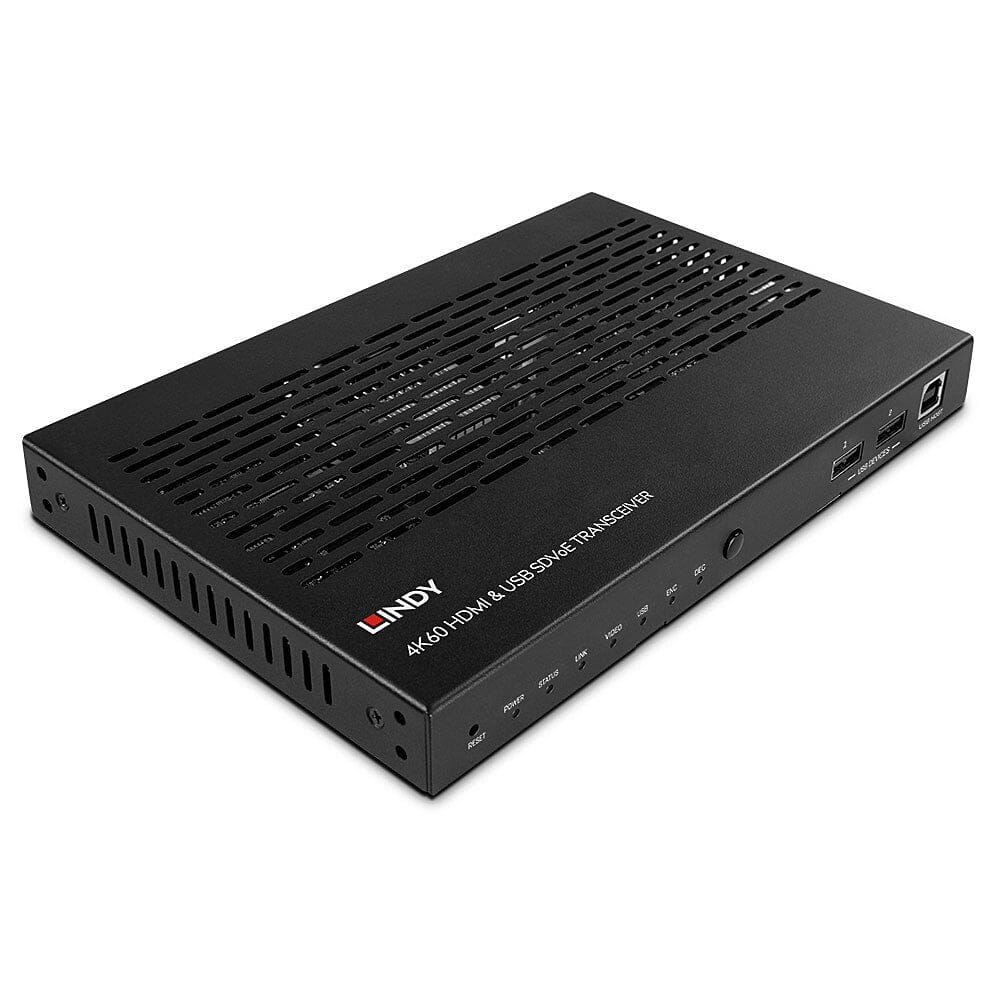

Lindy 4K60 HDMI and USB SDVoE Transceiver, 3840 x 2160 pixels, AV transmitter, 100 m, Wired, Black, HDCP
SDVoE is a globally recognised standard for high quality distribution of AV content with other features, including control, matrix, video wall and multi view over longer distances via 10G Network with no compressions and latency.
The Lindy 4K60 HDMI and USB SDVoE Transceiver is a high performance AV over IP Extender for HDMI 4K60, USB, Audio, IR and RS-232 signals. It can be set either as Encoder and Decoder in order to manage a full SDVoE installation while the connection with a 10G Network Switch can be done via copper with a standard Cat.6 or above cable, or adding a SFP+ fiber optic module (not included).
Supporting resolutions up to 4K Ultra HD, uncompressed video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut.
This unit provides different features connecting in multicast mode such as seamless switching, Video Wall up to 9x9 and Muiltiview up to 25 windows.
Device management can be done with Lindy SDVoE Controller (No.38364) providing a web based visual interface with signal preview and drag-and-drop operations making setup of the installation fast and intuitive. The management can be done also through any SDVoE codec, enabling compatibility with other software and hardware streaming platforms.
In addition to HDMI signal, this Transceiver supports bi-directional IR control, USB 2.0 to connect mouse, keyboard and other USB devices, 3.5mm analog stereo for embedding end extracting audio, RS-232 control and PoE.
Please note: this unit works only when connected to a 10Gigabit network. It can be controlled with any SDVoE controller system with API support.
The Lindy 4K60 HDMI and USB SDVoE Transceiver is a high performance AV over IP Extender for HDMI 4K60, USB, Audio, IR and RS-232 signals. It can be set either as Encoder and Decoder in order to manage a full SDVoE installation while the connection with a 10G Network Switch can be done via copper with a standard Cat.6 or above cable, or adding a SFP+ fiber optic module (not included).
Supporting resolutions up to 4K Ultra HD, uncompressed video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut.
This unit provides different features connecting in multicast mode such as seamless switching, Video Wall up to 9x9 and Muiltiview up to 25 windows.
Device management can be done with Lindy SDVoE Controller (No.38364) providing a web based visual interface with signal preview and drag-and-drop operations making setup of the installation fast and intuitive. The management can be done also through any SDVoE codec, enabling compatibility with other software and hardware streaming platforms.
In addition to HDMI signal, this Transceiver supports bi-directional IR control, USB 2.0 to connect mouse, keyboard and other USB devices, 3.5mm analog stereo for embedding end extracting audio, RS-232 control and PoE.
Please note: this unit works only when connected to a 10Gigabit network. It can be controlled with any SDVoE controller system with API support.
| Features | |
| Type Characteristics of the device. | AV transmitter |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Maximum refresh rate | 60 Hz |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 2.0 channels |
| Bandwidth | 18 Gbit/s |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| HDCP version | 1.4/2.2 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| RJ-45 input ports | 2 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| HDMI version | 2.0b |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP+ |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 1 |
| USB ports quantity | 3 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-B |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Serial interface type | RS-232 |
| 3.5 mm (1/8-inch) in |
|
| 3.5 mm (1/8-inch) out |
|
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power source type What the power source is. | DC |
| Operating voltage Defines the range of operating voltages available | 12 V |
| Output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 204 mm |
| Depth The distance from the front to the back of something. | 134 mm |
| Height The measurement of the product from head to foot or from base to top. | 21.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 980 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 245 mm |
| Package depth The distance from the front to the back of the packaging. | 185 mm |
| Package height The distance from the top to the bottom of the packaging. | 75 mm |
| Package weight Weight of the packaged product. | 1.3 kg |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| AC adapter included |
|
| Cables included | IR |
| Included power plug types | AU, EU, UK, US |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Mounting kit |
|
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS |
| SKU | 788720 |
| MPN | 38365 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
