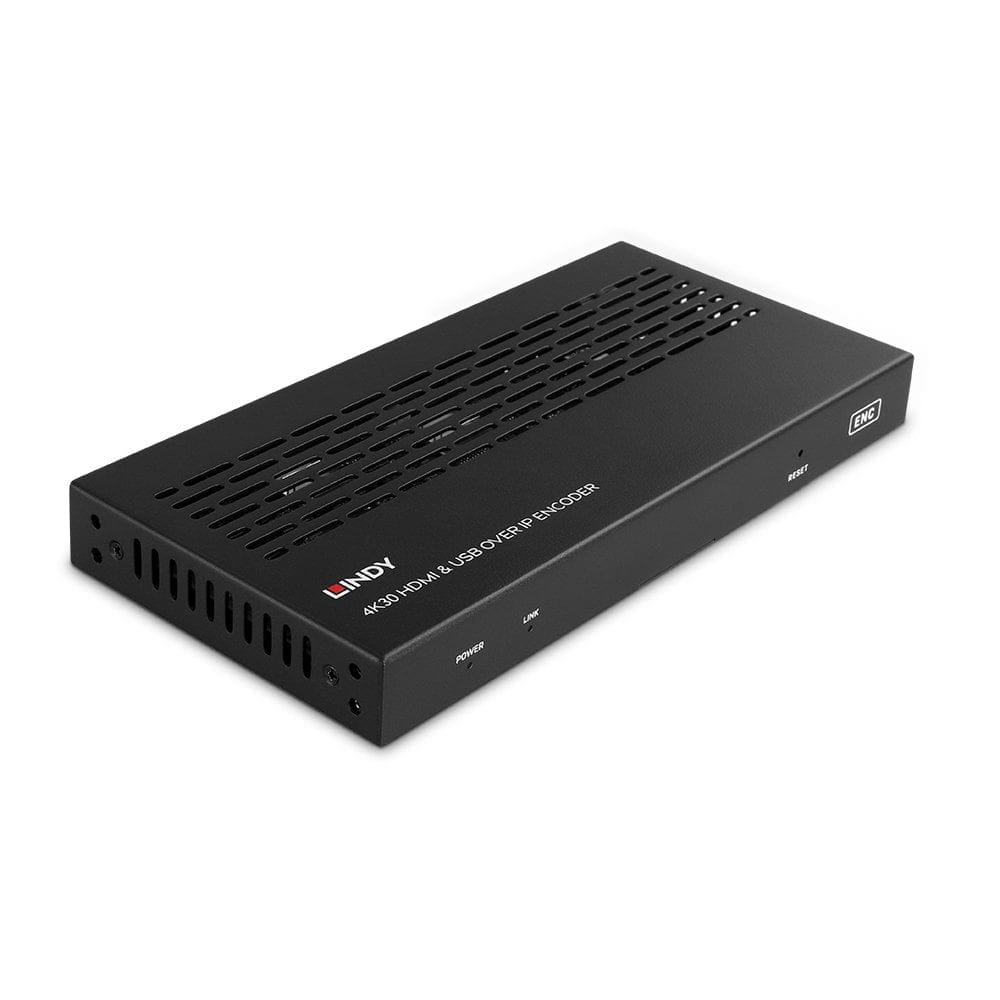

Lindy 4K30 HDMI and USB over IP System - Encoder, 3840 x 2160 pixels, AV transmitter, 100 m, Wired, Black, HDCP
The Lindy 4K30 HDMI and USB over IP system is a powerful solution for creating a wide range of bespoke, distributed AV and KVM installations. The system comprises Encoder (No. 38396) and Decoder (No. 38397) modules and a separate Controller module (No. 38395).
Please note: All modules are sold separately so you can build and scale according to your requirements.
One HDMI source, such as a PC or Media Player, connects to a single Encoder module; one HDMI display connects to a single Decoder module (No. 38397). Multiple Encoders and Decoders can be combined for a variety of multicast distribution options. The controller module is used to manage the full installation and direct the multiple sources to the multiple displays giving maximum creative freedom and customisation options. All the modules can be connected to a 1G managed switch to create a network of connected devices.
Additionally, the system supports USB KVM control access for each connected module, so connected PCs at the Encoder end can be controlled by KVM consoles at the remote Decoder end.
As well as single display options, combining multiple Decoders and their connected displays allows the user to create impressive video wall and matrix solutions.
This extender system provides JPEG2000 main stream and H.264/H265 codec secondary stream which supports API commands to achieve flexible configurations including from third party control apps.
The system requires a layer3 1G managed network switch supporting IGMP snooping and 8K Jumbo frame. With the PoE function it is also possible to power the unit without a PSU.
Please note: All modules are sold separately so you can build and scale according to your requirements.
One HDMI source, such as a PC or Media Player, connects to a single Encoder module; one HDMI display connects to a single Decoder module (No. 38397). Multiple Encoders and Decoders can be combined for a variety of multicast distribution options. The controller module is used to manage the full installation and direct the multiple sources to the multiple displays giving maximum creative freedom and customisation options. All the modules can be connected to a 1G managed switch to create a network of connected devices.
Additionally, the system supports USB KVM control access for each connected module, so connected PCs at the Encoder end can be controlled by KVM consoles at the remote Decoder end.
As well as single display options, combining multiple Decoders and their connected displays allows the user to create impressive video wall and matrix solutions.
This extender system provides JPEG2000 main stream and H.264/H265 codec secondary stream which supports API commands to achieve flexible configurations including from third party control apps.
The system requires a layer3 1G managed network switch supporting IGMP snooping and 8K Jumbo frame. With the PoE function it is also possible to power the unit without a PSU.
| Features | |
| Type Characteristics of the device. | AV transmitter |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Maximum refresh rate | 30 Hz |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IP |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Bandwidth | 18 Gbit/s |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| HDCP version | 2.2 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| RJ-45 input ports | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| HDMI version | 2.0 |
| USB ports quantity | 1 |
| USB connector type The type of USB connector/port that this product has. | USB Type-B |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Serial interface type | RS-232 |
| 3.5 mm (1/8-inch) in |
|
| 3.5 mm (1/8-inch) out |
|
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power source type What the power source is. | DC |
| Operating voltage Defines the range of operating voltages available | 12 V |
| Output current | 1 A |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 204 mm |
| Depth The distance from the front to the back of something. | 134 mm |
| Height The measurement of the product from head to foot or from base to top. | 21.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 780 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 245 mm |
| Package depth The distance from the front to the back of the packaging. | 185 mm |
| Package height The distance from the top to the bottom of the packaging. | 75 mm |
| Package weight Weight of the packaged product. | 1.02 kg |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| AC adapter included |
|
| Cables included | IR |
| Included power plug types | AU, EU, UK, US |
| Manual |
|
| Mounting kit |
|
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| SKU | 788741 |
| MPN | 38396 |
| Brand | Lindy |
