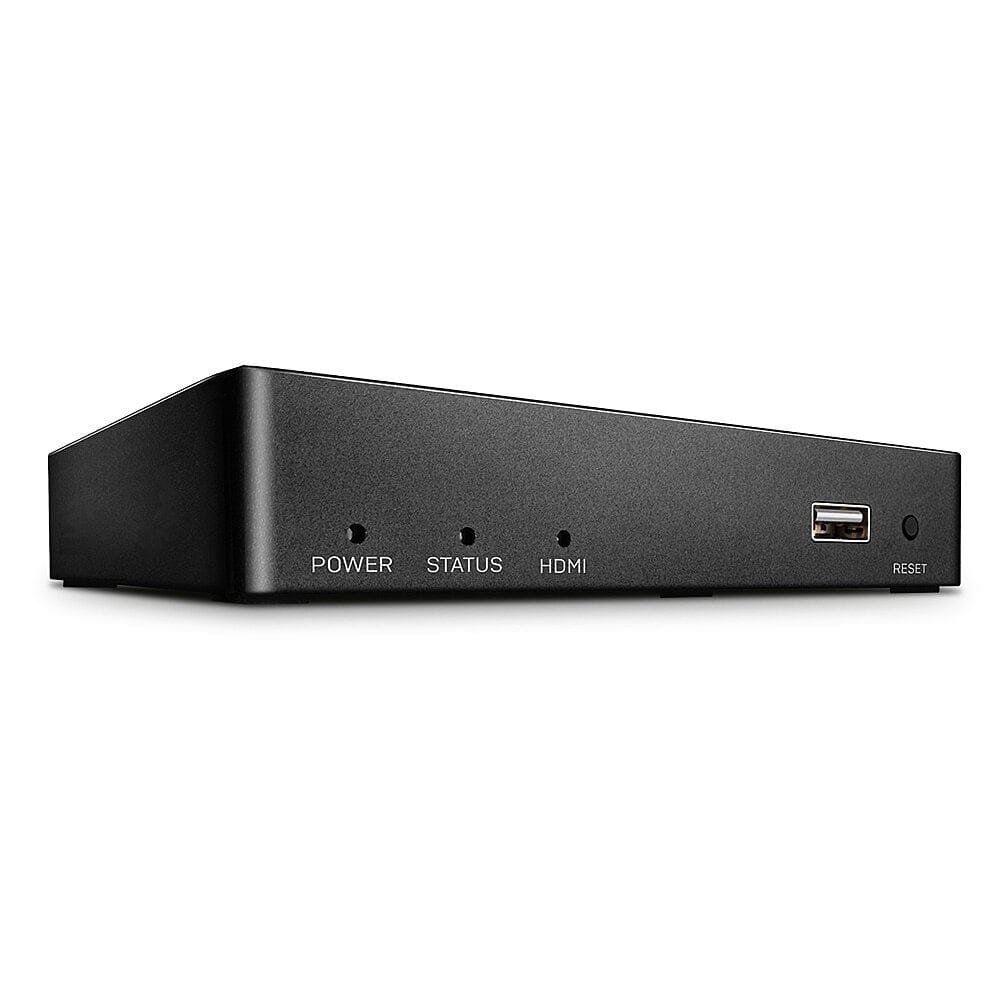

Lindy KVM Over IP Extender - Transmitter, Transmitter, Wired, 150 m, Cat5e, Cat6, 3840 x 2160 pixels, Black
The Lindy KVM Over IP Extender system allows users to control a source device such as a PC or PVR through a standard IP network. This transmitter unit must be connected to one or more receiver units (No. 38265 not included) to create a standard point to point control system, with a maximum distance of 150m (492,12ft). It s also possible to set up a distributed control system (One to Many configuration) which allows a single device connected to a Transmitter to be controlled by several consoles each connected to a receiver unit (No. 38265 - not included) via a dedicated Ethernet switch or VPN.
This extender system includes a convenient IR (25 to 56kHz) repeating system to allow for the dedicated use of a remote control from the console side. This is a typical solution for security system management (PVR management or control rooms), or remote server administration (KVM switch remote control) as well as AV signals over IP extension for distributed monitoring of industrial facilities.
This extender system includes a convenient IR (25 to 56kHz) repeating system to allow for the dedicated use of a remote control from the console side. This is a typical solution for security system management (PVR management or control rooms), or remote server administration (KVM switch remote control) as well as AV signals over IP extension for distributed monitoring of industrial facilities.
| Features | |
| Type Characteristics of the device. | Transmitter |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 150 m |
| Cable types supported | Cat5e, Cat6 |
| Maximum digital resolution | 3840 x 2160 pixels |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Transmitter | |
| Transmitter video port type | HDMI |
| RJ-45 ports quantity (transmitter) | 1 |
| Power | |
| Power plug type | Type A |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 5 V |
| Input current | 2 A |
| Operational conditions | |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 75 °C |
| Technical details | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 124 x 85 x 24 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 200 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| SKU | 788621 |
| MPN | 38264 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
