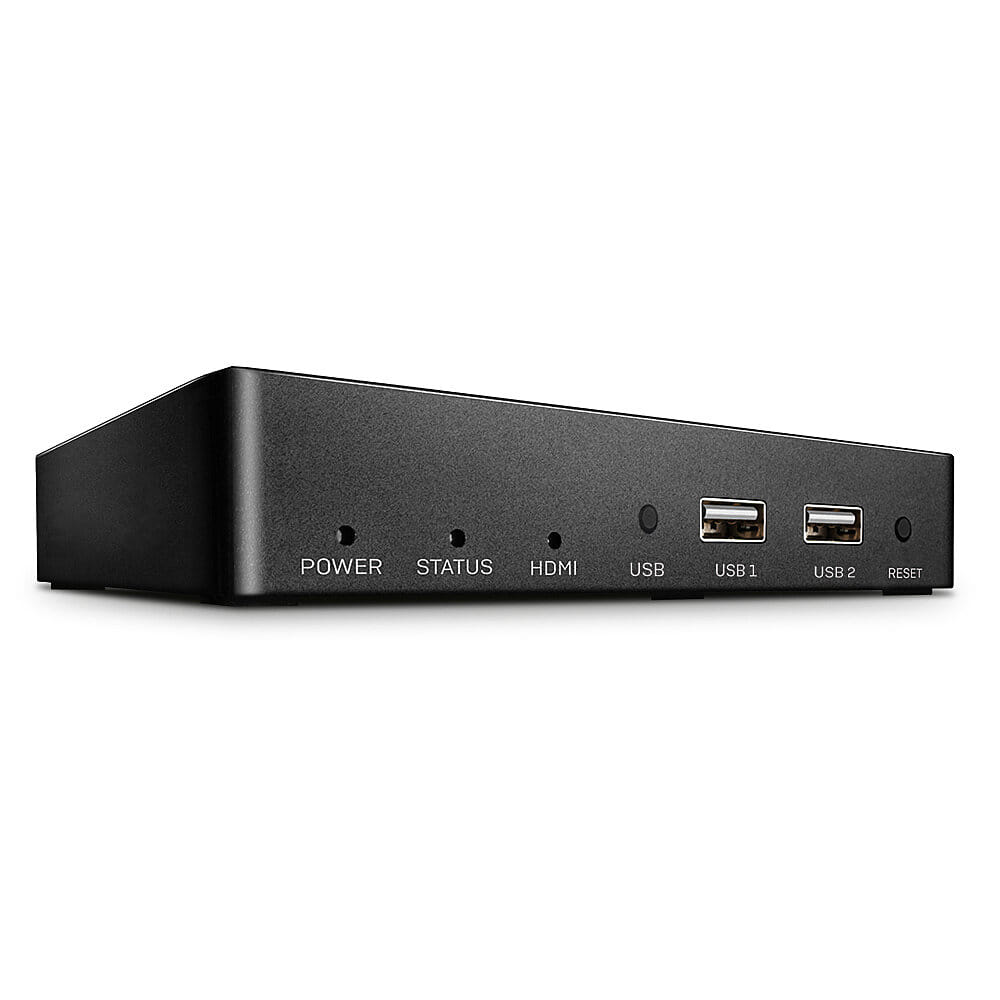

Lindy KVM Over IP Extender - Receiver, 3840 x 2160 pixels, AV receiver, 150 m, Wired, Black, HDCP
The Lindy KVM Over IP Extender system allows users to control a source device such as a PC or PVR through a standard IP network. This receiver unit must be connected to a transmitter unit (No. 38264 not included) to create a standard point to point control system, with a maximum distance of 150m (492,12ft). It s also possible to set up a distributed control system (One to Many configuration) which allows a single device connected to a Transmitter Unit (No. 38264 - not included) to be controlled by several consoles each connected to this receiver via a dedicated Ethernet switch or VPN.
This extender system includes a convenient IR (25 to 56kHz) repeating system to allow for the dedicated use of a remote control from the console side. This is a typical solution for security system management (PVR management or control rooms), or remote server administration (KVM switch remote control) as well as AV signals over IP extension for distributed monitoring of industrial facilities.
This extender system includes a convenient IR (25 to 56kHz) repeating system to allow for the dedicated use of a remote control from the console side. This is a typical solution for security system management (PVR management or control rooms), or remote server administration (KVM switch remote control) as well as AV signals over IP extension for distributed monitoring of industrial facilities.
| Features | |
| Type Characteristics of the device. | AV receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 150 m |
| Maximum refresh rate | 30 Hz |
| Extended display identification data (EDID) |
 |
| LED indicators |
|
| Bandwidth | 10.2 Gbit/s |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | CE, FCC, REACH |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| RJ-45 input ports | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| HDMI version | 1.4 |
| USB ports quantity | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Input current | 2 A |
| Operating voltage (receiver) | 5 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 75 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 124 mm |
| Depth The distance from the front to the back of something. | 85 mm |
| Height The measurement of the product from head to foot or from base to top. | 24 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 200 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 220 mm |
| Package depth The distance from the front to the back of the packaging. | 170 mm |
| Package height The distance from the top to the bottom of the packaging. | 60 mm |
| Package weight Weight of the packaged product. | 800 g |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 788624 |
| MPN | 38265 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
