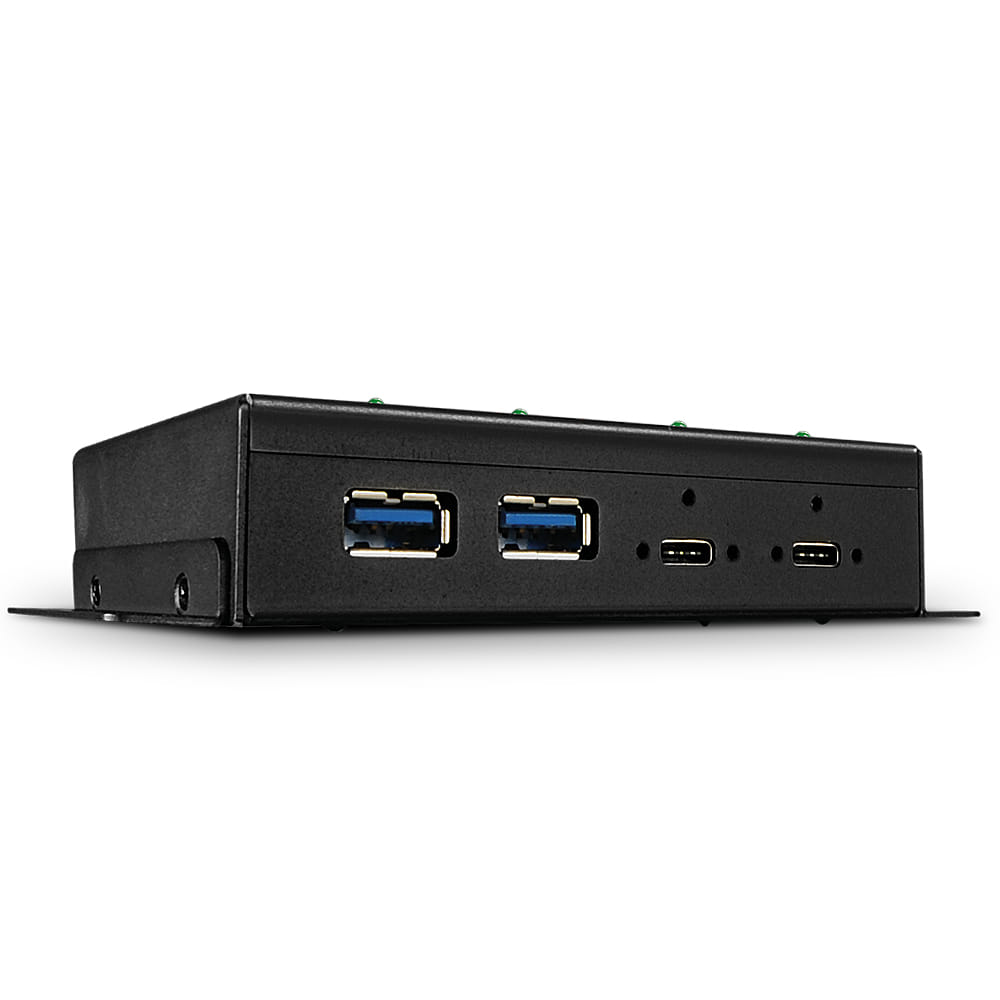

Lindy 4 Port USB 3.2 Gen 2 Type C Metal Hub, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 10000 Mbit/s, Black, Metal, CE, FCC, RoHS, REACH
The Lindy 4 Port USB 3.2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps.
This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.
With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.
Each port features individual short circuit protection - and all 4 USB ports support the Battery Charging specification 1.2 with a total charging power of 17.5 Watt for all 4 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.
With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.
Each port features individual short circuit protection - and all 4 USB ports support the Battery Charging specification 1.2 with a total charging power of 17.5 Watt for all 4 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 2 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| Terminal block port |
 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 10000 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Certification | CE, FCC, RoHS, REACH |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Input current | 4 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 135 mm |
| Depth The distance from the front to the back of something. | 60 mm |
| Height The measurement of the product from head to foot or from base to top. | 24 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 229 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 230 mm |
| Package depth The distance from the front to the back of the packaging. | 198 mm |
| Package height The distance from the top to the bottom of the packaging. | 63 mm |
| Package weight Weight of the packaged product. | 667 g |
| Packaging content | |
| AC adapter included |
|
| Cables included | USB Type-C |
| Manual |
|
| Operational conditions | |
| Operating temperature (T-T) | 32 - 122 °F |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84719000 |
| SKU | 789251 |
| MPN | 43094 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
