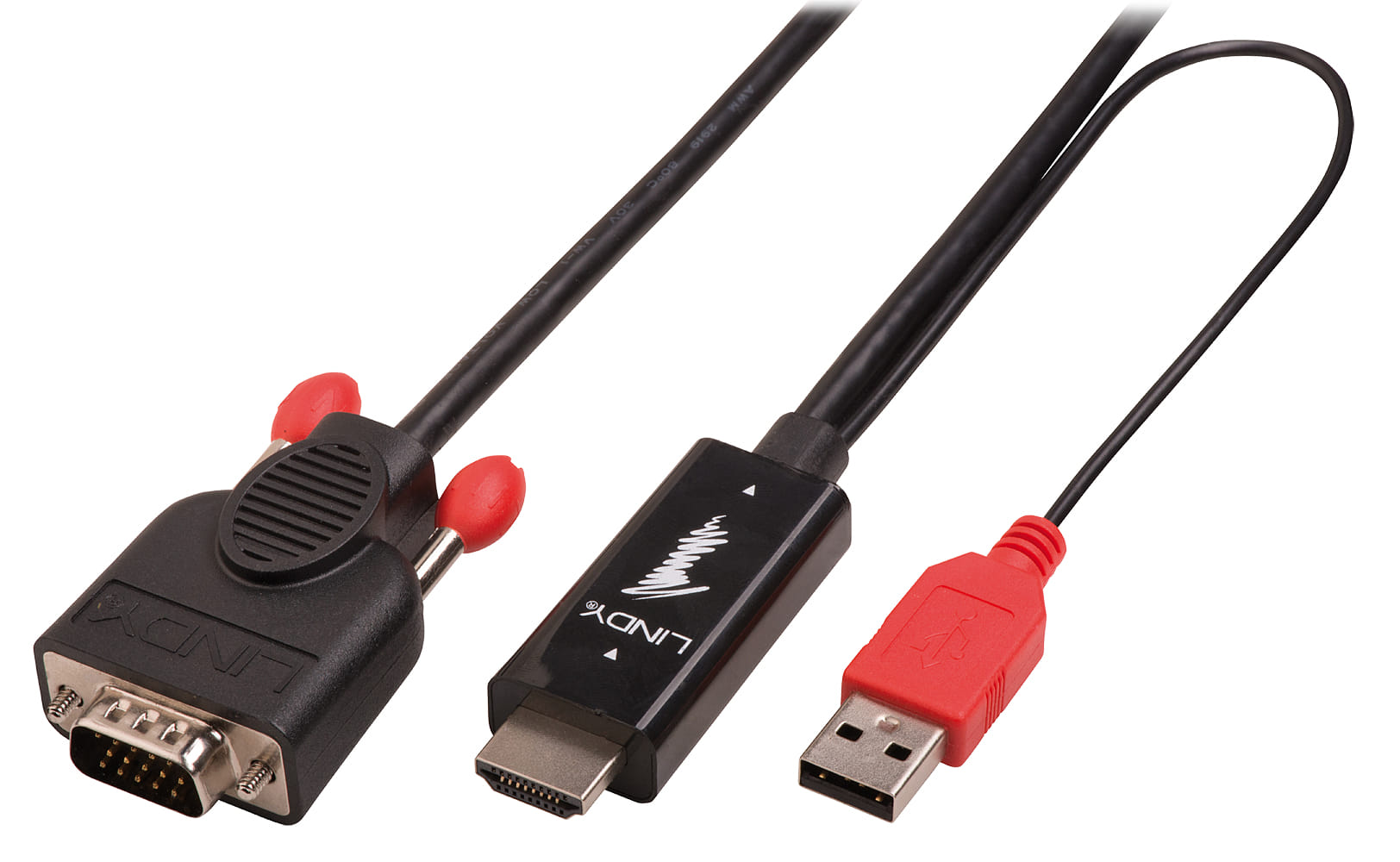

Lindy 3m HDMI to VGA Adapter Cable
Item No:
789089
MPN:
41457
$89.95
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Lindy 3m HDMI to VGA Cable, 3 m, HDMI + USB, VGA (D-Sub), Male, Male, Straight
The Lindy HDMI to VGA Cable is ideal for connecting an HDMI equipped source such as a PC or laptop to a legacy VGA display or projector. It converts the digital signal from the HDMI connection into an analogue VGA signal and supports high definition video resolutions up to 1920x1200@60Hz.
This cable can also be used to add another display to extend available desktop workspace and increase productivity.
Please note that HDCP signals are not supported.
This cable can also be used to add another display to extend available desktop workspace and increase productivity.
Please note that HDCP signals are not supported.
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| Cable length How long the cable is. | 3 m |
| Connector 1 This is the first connector in the device. | HDMI + USB |
| Connector 2 This is the second connector in the device. | VGA (D-Sub) |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| HDMI version | 1.3 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 4.95 Gbit/s |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 8100 MHz |
| Maximum refresh rate | 60 Hz |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Red |
| Conductor material | Tinned copper |
| Nominal attenuation | 100MHz~450MHz -2.44--5.099dB 450MHz~8100MHz -5.094~32.906dB |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Connector housing material | Polyvinyl chloride (PVC) / Acrylonitrile butadiene styrene (ABS) |
| Contact material | Copper |
| AWG wire size | 28 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Cable shielding The protective layer for the cable, typically made of plastic. | Aluminium braid |
| Certification | CE, FCC, RoHS, REACH, UL & California Proposition 65 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 75 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 80 °C |
| Sustainability | |
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UL ECOLOGO |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 6 mm |
| Connector 1 dimensions (WxDxH) | 54.4 x 25 x 10.1 mm |
| Connector 2 dimensions (WxDxH) | 46 x 34 x 20 mm |
| Connector 3 dimensions (WxDxH) | 37 x 16 x 7 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package type The type of product package e.g. box. | Polybag |
| Technical details | |
| Warranty period | 2 year(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| SKU | 789089 |
| MPN | 41457 |
| Brand | Lindy |
| Assembled to Order | No |
| Shipping Latency | None |
| Display In Stock In Frontend | No |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
