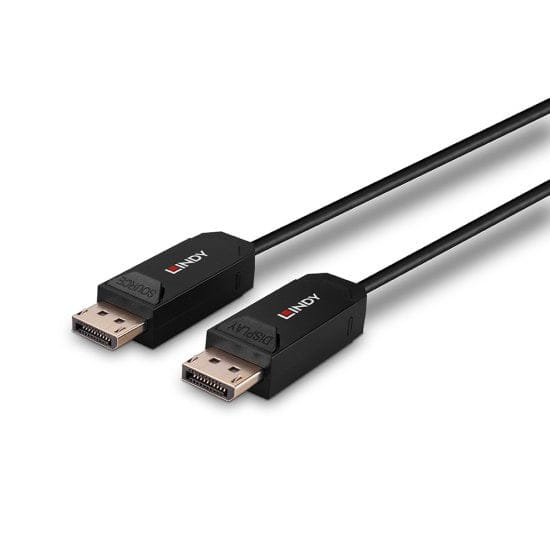

Lindy 30m Fibre Optic Hybrid DP 2.0 UHBR10 Cable, 10 m, DisplayPort, DisplayPort, Male, Male, 7680 x 4320 pixels
Lindy s range of Fibre Optic Hybrid cables are a professional solution for extending DP signals over longer distances.Combining the flexibility and high EMI and RFI resistance of fibre optic cable with standard copper cabling, these hybrid cables are ideal for use in critical AV setups, commercial displays or high-performance residential installations.
The internal technology provides uncompressed amplification of the DP signal, allowing long distance extension of DP 8K content that is simply not possible with passive cables.
With 40Gbps bandwidth (UHBR10), these cables support DisplayPort 2.0 resolutions up to 3840x2160@144Hz, and 7680x4320 / 10240x4320@60Hz. Content can be viewed with incredible detail and clarity at higher refresh rates and supporting static and dynamic HDR for optimum viewing of movies, graphics or imagery.
The internal technology provides uncompressed amplification of the DP signal, allowing long distance extension of DP 8K content that is simply not possible with passive cables.
With 40Gbps bandwidth (UHBR10), these cables support DisplayPort 2.0 resolutions up to 3840x2160@144Hz, and 7680x4320 / 10240x4320@60Hz. Content can be viewed with incredible detail and clarity at higher refresh rates and supporting static and dynamic HDR for optimum viewing of movies, graphics or imagery.
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| DisplayPort version | 2.0 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160, 7680 x 4320 |
| Maximum refresh rate | 60 Hz |
| Connector 1 lockable |
 |
| Connector 2 lockable |
|
| Cable length How long the cable is. | 10 m |
| Connector 1 This is the first connector in the device. | DisplayPort |
| Connector 2 This is the second connector in the device. | DisplayPort |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Jacket material | Polyvinyl chloride (PVC) |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 24 Gbit/s |
| Bandwidth | 40 MB/s |
| Contact material | Gold |
| Bend radius (min) | 5 cm |
| Colour sampling | 4:2:2, 4:4:4, 4:2:0 |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Sustainability | |
| Sustainability compliance |
 |
| Sustainability certificates | CE, REACH, RoHS, UKCA |
| SKU | 788822 |
| MPN | 38523 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
