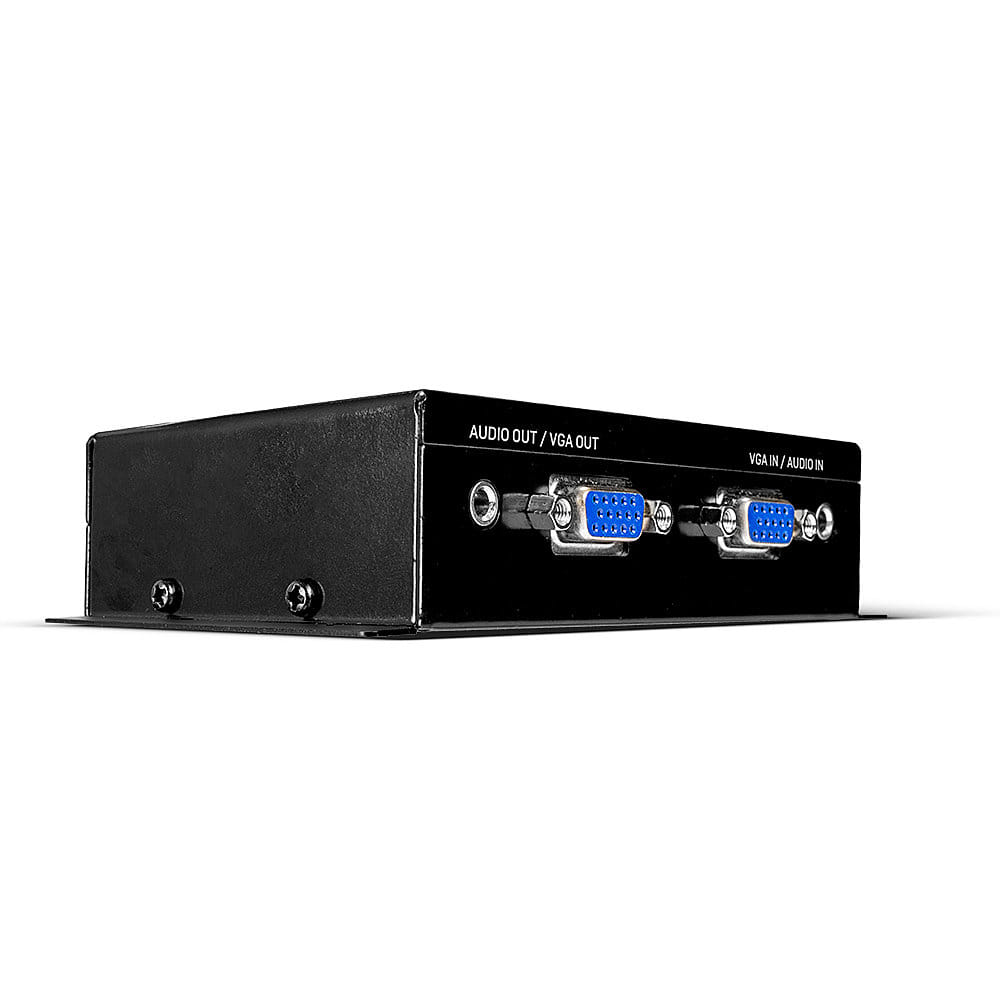

Lindy 300m Cat.6 4 Port VGA Splitter Extender Transmitter, 1920 x 1080 pixels, AV transmitter, 300 m, Wired, Black
VGA splitter extenders distribute analogue video content across longer distances into multiple locations, using standard network cabling.
The Lindy 300m Cat.6 4 Port VGA Splitter is a high-quality solution for extending 4 separate analogue VGA signals over long distances using standard network cables when combined with the compatible receiver unit (35404). Supporting resolutions up to 1920x1080, this extender splitter provides high quality video for up to 4 separate distribution zones, such as classrooms or in security facilities. A 3.5mm female port ensures source devices or embedded audio can be added within the connection.
The VGA loop-out allows for the connection of a local display, great for monitoring and control of the setup. Dual mono audio extraction also provides the possibility of connecting speakers to the local setup.
The transmitter has a robust metal housing with mounting brackets, providing additional protection against accidental damage, ideal for use in industrial installations.
The Lindy 300m Cat.6 4 Port VGA Splitter is a high-quality solution for extending 4 separate analogue VGA signals over long distances using standard network cables when combined with the compatible receiver unit (35404). Supporting resolutions up to 1920x1080, this extender splitter provides high quality video for up to 4 separate distribution zones, such as classrooms or in security facilities. A 3.5mm female port ensures source devices or embedded audio can be added within the connection.
The VGA loop-out allows for the connection of a local display, great for monitoring and control of the setup. Dual mono audio extraction also provides the possibility of connecting speakers to the local setup.
The transmitter has a robust metal housing with mounting brackets, providing additional protection against accidental damage, ideal for use in industrial installations.
| Features | |
| Type Characteristics of the device. | AV transmitter |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 300 m |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | EL4543IUZ |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080) |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 350 MHz |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | CE, FCC, RoHS, REACH |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 output ports | 4 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input The type of audio input that the device requires, and the connection needed. | 1 |
| Audio output The type of audio output that the device produces, and the connector(s). | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Power | |
| Operating voltage Defines the range of operating voltages available | 12 V |
| Input current | 1.2 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 135.4 mm |
| Depth The distance from the front to the back of something. | 73 mm |
| Height The measurement of the product from head to foot or from base to top. | 31 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 484 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 177 mm |
| Package depth The distance from the front to the back of the packaging. | 75 mm |
| Package height The distance from the top to the bottom of the packaging. | 110 mm |
| Package weight Weight of the packaged product. | 547 g |
| SKU | 788054 |
| MPN | 35403 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
