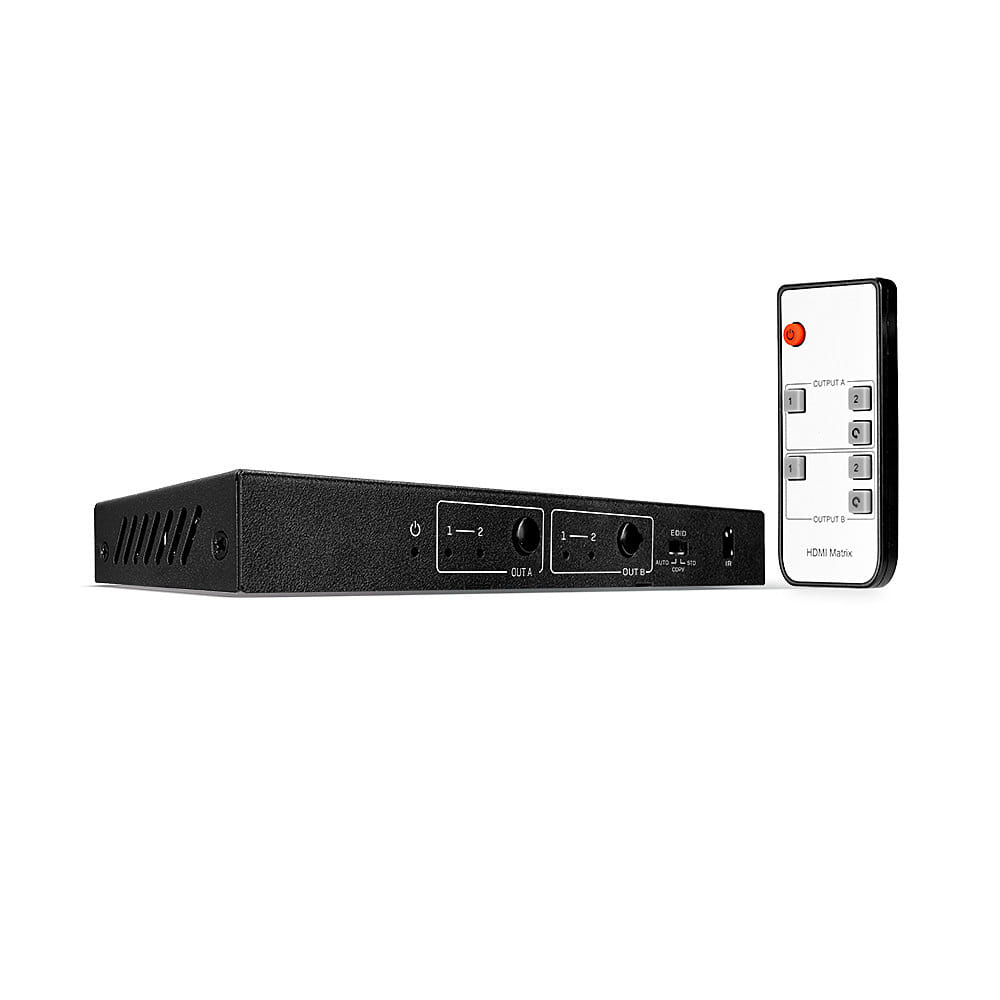

Lindy 2x2 HDMI 18G Matrix, AV matrix switcher, 18 Gbit/s, 4096 x 2160 pixels, TOSLINK, Black, Metal
A matrix switch is a multi-port solution for distributing content from multiple sources to several displays in a variety of configurations.
The Lindy 2x2 HDMI 18G Matrix Switch is a premium, compact solution for distributing content from two devices to two displays. Dual HDMI inputs and outputs provide the ability to switch between 2 separate source devices or 2 connected HDMI displays, or output video simultaneously.
With support for HDMI 18G signals, this matrix allows for the transmission of high quality 4K UHD 4096x2160@60Hz resolutions, while additional support for HDR (High Dynamic Range) ensures video content can be viewed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for high quality residential setups or small scale digital signage installations in retail.
HDCP 2.2 support ensures there are no compatibility issues with 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players. Simple EDID management via an integrated switch allows the user to control and ensure the optimum resolution based on their connected displays.
As well as HDMI audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen.
This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
The Lindy 2x2 HDMI 18G Matrix Switch is a premium, compact solution for distributing content from two devices to two displays. Dual HDMI inputs and outputs provide the ability to switch between 2 separate source devices or 2 connected HDMI displays, or output video simultaneously.
With support for HDMI 18G signals, this matrix allows for the transmission of high quality 4K UHD 4096x2160@60Hz resolutions, while additional support for HDR (High Dynamic Range) ensures video content can be viewed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for high quality residential setups or small scale digital signage installations in retail.
HDCP 2.2 support ensures there are no compatibility issues with 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players. Simple EDID management via an integrated switch allows the user to control and ensure the optimum resolution based on their connected displays.
As well as HDMI audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen.
This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
| Features | |
| Product type The sub-category of the product. | AV matrix switcher |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 18 Gbit/s |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| HDCP version | 2.2 |
| EDID management |
|
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | TOSLINK |
| Design | |
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Ports & interfaces | |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 2 |
| HDMI version | 2.0 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 144 mm |
| Depth The distance from the front to the back of something. | 59.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 18 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 208 g |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 113 mm |
| Package height The distance from the top to the bottom of the packaging. | 70 mm |
| Package weight Weight of the packaged product. | 328 g |
| Packaging content | |
| Manual |
|
| SKU | 788633 |
| MPN | 38302 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
