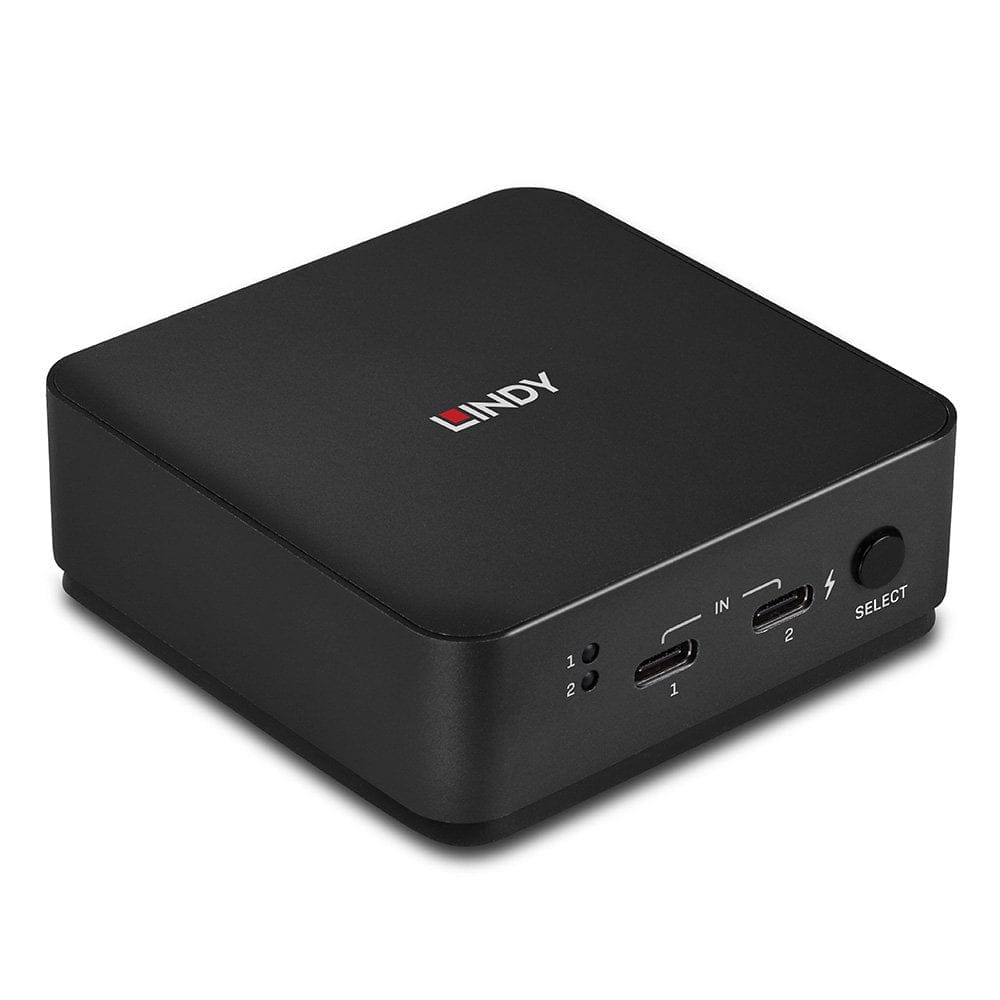

Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch, 3840 x 2160 pixels, 4K Ultra HD, Grey
The Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch is a compact solution for providing access and control over two Type C equipped devices with from a console with keyboard, mouse and two displays. It s an Ideal solution for flexible, plug and play workstations, allowing users to control multiple laptops, or a single laptop and another Type C device such as a mobile phone or tablets with Type C DisplayPort Alt Mode interface.
Support for Ultra HD resolutions up to 4K30Hz connecting both outputs, and 4K60Hz connecting one to ensure optimum image quality, perfect for high fidelity graphics in gaming setups, video editing or dual system control workstations. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts, and a much wider colour gamut. MST and SST functions allow the connection of two displays with extended desktop or in mirror mode while additional USB peripherals can be connected via the 2 ports USB 2.0.
Connecting an additional Type C power supply (optional, not included) ensures host device on port 2 can be powered and charged through the 100W Type C Power Delivery 3.0 input port. Perfect when mains power outlets are in short supply, and improves cable management for minimalist installations.
This device switches automatically when only one active source is connected, while when multiple devices are connected, switching is also possible by pushing the select button on the front panel for simple and reliable control, great for both professional and first-time users.
Please Note: Type C sources must support DisplayPort Alternate mode for video output, smartphones and tablets can only display a mirror image. Fast Role Swap feature is not supported.
Support for Ultra HD resolutions up to 4K30Hz connecting both outputs, and 4K60Hz connecting one to ensure optimum image quality, perfect for high fidelity graphics in gaming setups, video editing or dual system control workstations. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts, and a much wider colour gamut. MST and SST functions allow the connection of two displays with extended desktop or in mirror mode while additional USB peripherals can be connected via the 2 ports USB 2.0.
Connecting an additional Type C power supply (optional, not included) ensures host device on port 2 can be powered and charged through the 100W Type C Power Delivery 3.0 input port. Perfect when mains power outlets are in short supply, and improves cable management for minimalist installations.
This device switches automatically when only one active source is connected, while when multiple devices are connected, switching is also possible by pushing the select button on the front panel for simple and reliable control, great for both professional and first-time users.
Please Note: Type C sources must support DisplayPort Alternate mode for video output, smartphones and tablets can only display a mirror image. Fast Role Swap feature is not supported.
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 2 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 2 |
| Console ports | USB C |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-C |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Automatic switching |
 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 2.2 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Push button |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | USB |
| DC input voltage | 7.5 V |
| USB Power Delivery |
|
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 78 mm |
| Depth The distance from the front to the back of something. | 78 mm |
| Height The measurement of the product from head to foot or from base to top. | 26.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 230 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 183 mm |
| Package depth The distance from the front to the back of the packaging. | 53 mm |
| Package height The distance from the top to the bottom of the packaging. | 138 mm |
| Package weight Weight of the packaged product. | 330 g |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Cables included | USB Type-C |
| Manual |
|
| SKU | 789182 |
| MPN | 42321 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
