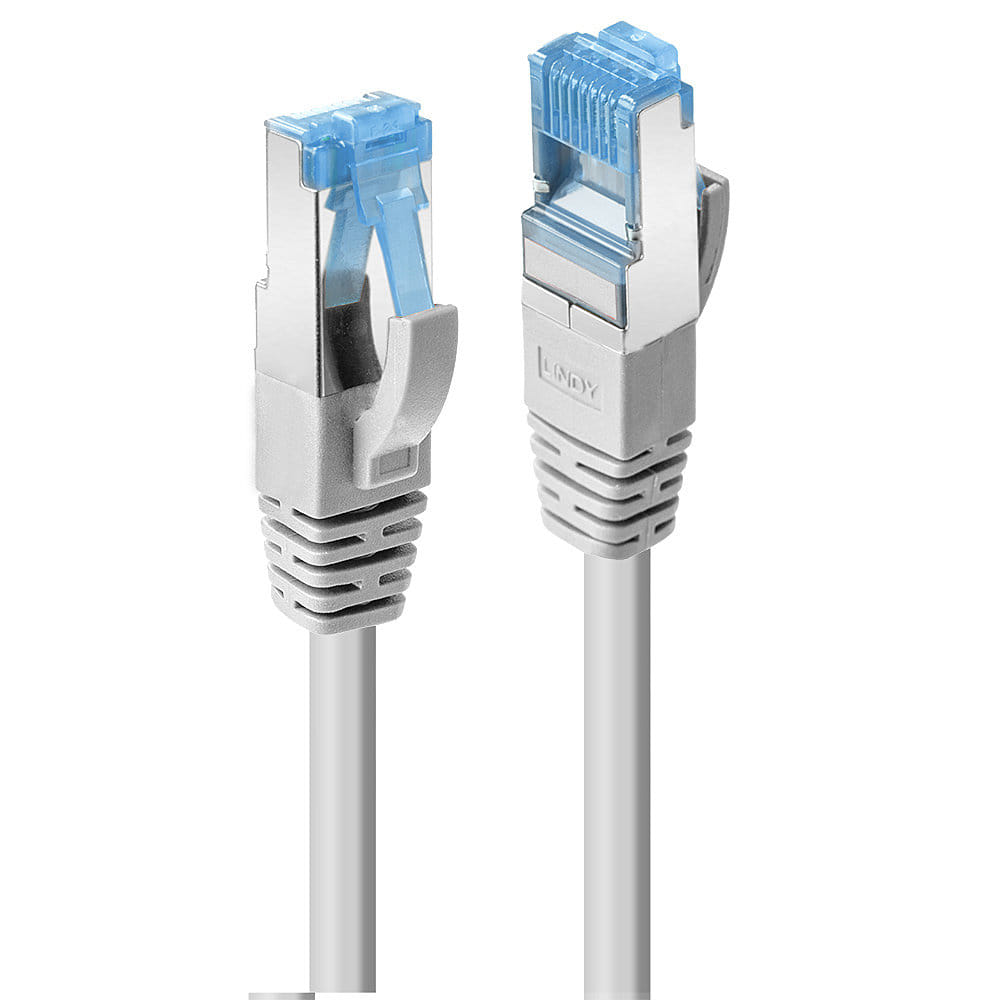

Lindy 1m Cat.6A S/FTP LSZH Network Cable, Grey, 1 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Cable length How long the cable is. | 1 m |
| Cable standard The category of the cable, which is determined by performance characteristics and test requirements. | Cat6a |
| Cable shielding The protective layer for the cable, typically made of plastic. | S/FTP (S-STP) |
| Connector 1 This is the first connector in the device. | RJ-45 |
| Connector 2 This is the second connector in the device. | RJ-45 |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Connector shielding |
 |
| Connector shield material | Aluminium |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor material | Copper |
| Cable class | Ea |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| AWG wire size | 27 |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 1000 Mbit/s |
| Frequency | 500 MHz |
| Bend radius (min) | 7.2 cm |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Nominal attenuation | 49.3dB/100m @ 500MHz |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 75 °C |
| Weight & dimensions | |
| Outer diameter | 6 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package type The type of product package e.g. box. | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| SKU | 789692 |
| MPN | 47132 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
