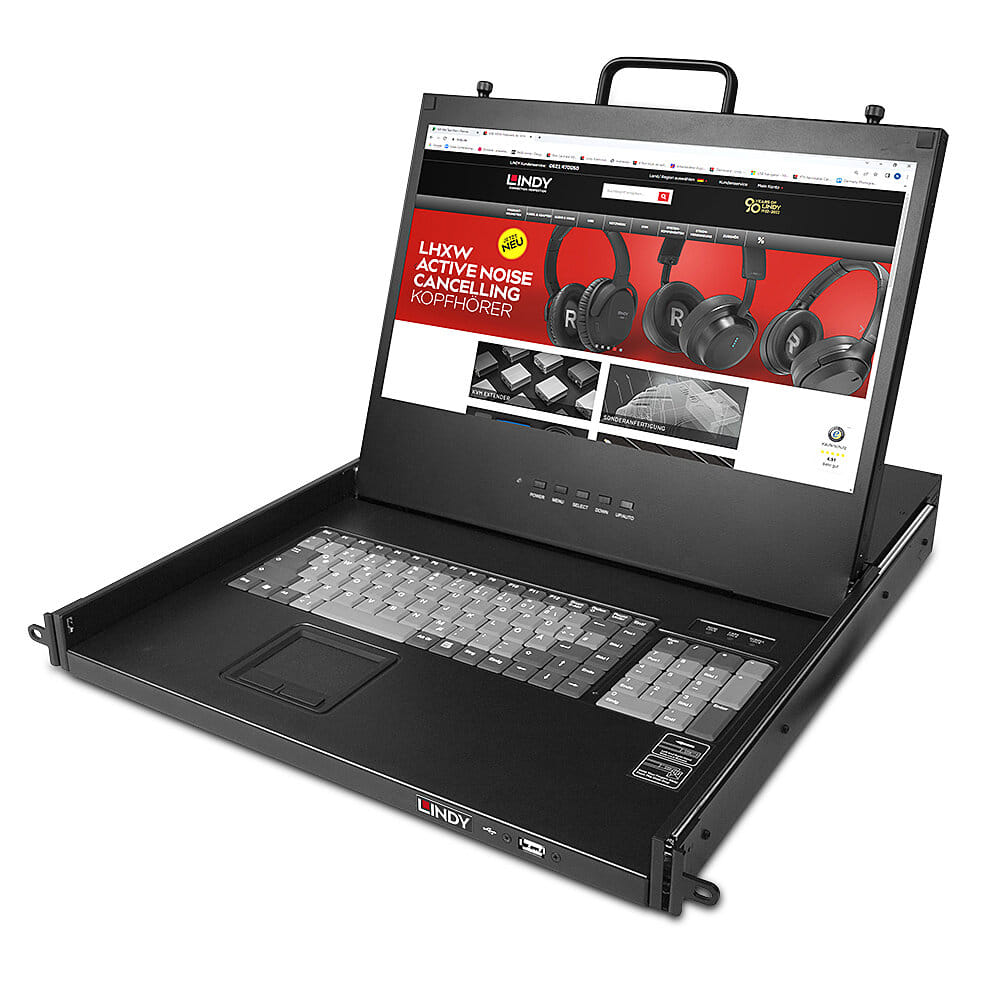

Lindy 21710, 43.2 cm (17"), 1920 x 1080 pixels, 300 cd/m2, 700:1, LCD, 2x DisplayPort , 2x HDMI
A LCD KVM Console allows an operator to conveniently control and manage a PC, server or KVM switch from a single 19" rack mountable keyboard, touchpad and LCD display console.
The Lindy 17" Full HD LCD KVM Console is a hardware solution that allows direct control of a computer from an all-in-one Terminal with keyboard, touchpad and 17" monitor. It s ideal for system administrators who want to control one or multiple computers or servers from a single, centralised location.
The Console is designed to be easily installed into 1 Unit of a 19" server cabinet with front to back rail distance from 52 to 91cm. Display and keyboard are on the same drawer in Single Rail design, can be slided out together, while latch locks mechanism can lock and unlock the drawer.
17" LCD screen supports analog and digital resolutions up to 1920x1080 with auto-off function when the display is closed below 30 degrees. Screen adjustments and Input selection can be access via OSD pushing the buttons under the screen.
The Lindy LCD KVM Console can be connected to a PC, server or KVM Switch via HDMI, DisplayPort or VGA to get the video signal, USB port to control it via keyoboard and touchpad, and to an additional Console if required (it must have the same video connection of the source). Both the LCD console drawer and the local console can be used at the same time. In this way an administrator can access and manage locally or from another console one or several PCs occupying only one unit in a 19" rack. The metal drawer with slide rails on each side are essential also within industrial environments.
The Lindy 17" Full HD LCD KVM Console is a hardware solution that allows direct control of a computer from an all-in-one Terminal with keyboard, touchpad and 17" monitor. It s ideal for system administrators who want to control one or multiple computers or servers from a single, centralised location.
The Console is designed to be easily installed into 1 Unit of a 19" server cabinet with front to back rail distance from 52 to 91cm. Display and keyboard are on the same drawer in Single Rail design, can be slided out together, while latch locks mechanism can lock and unlock the drawer.
17" LCD screen supports analog and digital resolutions up to 1920x1080 with auto-off function when the display is closed below 30 degrees. Screen adjustments and Input selection can be access via OSD pushing the buttons under the screen.
The Lindy LCD KVM Console can be connected to a PC, server or KVM Switch via HDMI, DisplayPort or VGA to get the video signal, USB port to control it via keyoboard and touchpad, and to an additional Console if required (it must have the same video connection of the source). Both the LCD console drawer and the local console can be used at the same time. In this way an administrator can access and manage locally or from another console one or several PCs occupying only one unit in a 19" rack. The metal drawer with slide rails on each side are essential also within industrial environments.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 43.2 cm (17") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1920 x 1080 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 300 cd/m² |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 700:1 |
| On Screen Display (OSD) |
 |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Technical details | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Operating relative humidity (H-H) | 5 - 90% |
| Power requirements | 16.5 W |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Sustainability compliance |
|
| Sustainability certificates | CE, REACH, RoHS, UKCA |
| Warranty period | 2 year(s) |
| Rack capacity The spase that device fill in rack. | 1U |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | 2x DisplayPort , 2x HDMI |
| USB 2.0 Type-A ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 1 |
| Keyboard | |
| Built-in touchpad |
|
| Certificates | |
| Certification | POP |
| Power | |
| AC (power) in |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -5 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 433.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 526.6 mm |
| Depth The distance from the front to the back of something. | 43 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 13 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 16.3 kg |
| Package width The distance from one side of the packaging to the other. | 742 mm |
| Package depth The distance from the front to the back of the packaging. | 602 mm |
| Package height The distance from the top to the bottom of the packaging. | 178 mm |
| Packaging content | |
| Screws included |
|
| Number of screws | 12 |
| Mounting brackets included |
|
| Manual |
|
| Package type The type of product package e.g. box. | Box |
| Packaging content | KVM Terminal 2 x brackets Schuko C13 mains cable, 1.8m 12 x Screw (M5*12) Lindy Manual |
| SKU | 765983 |
| MPN | 21710 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
