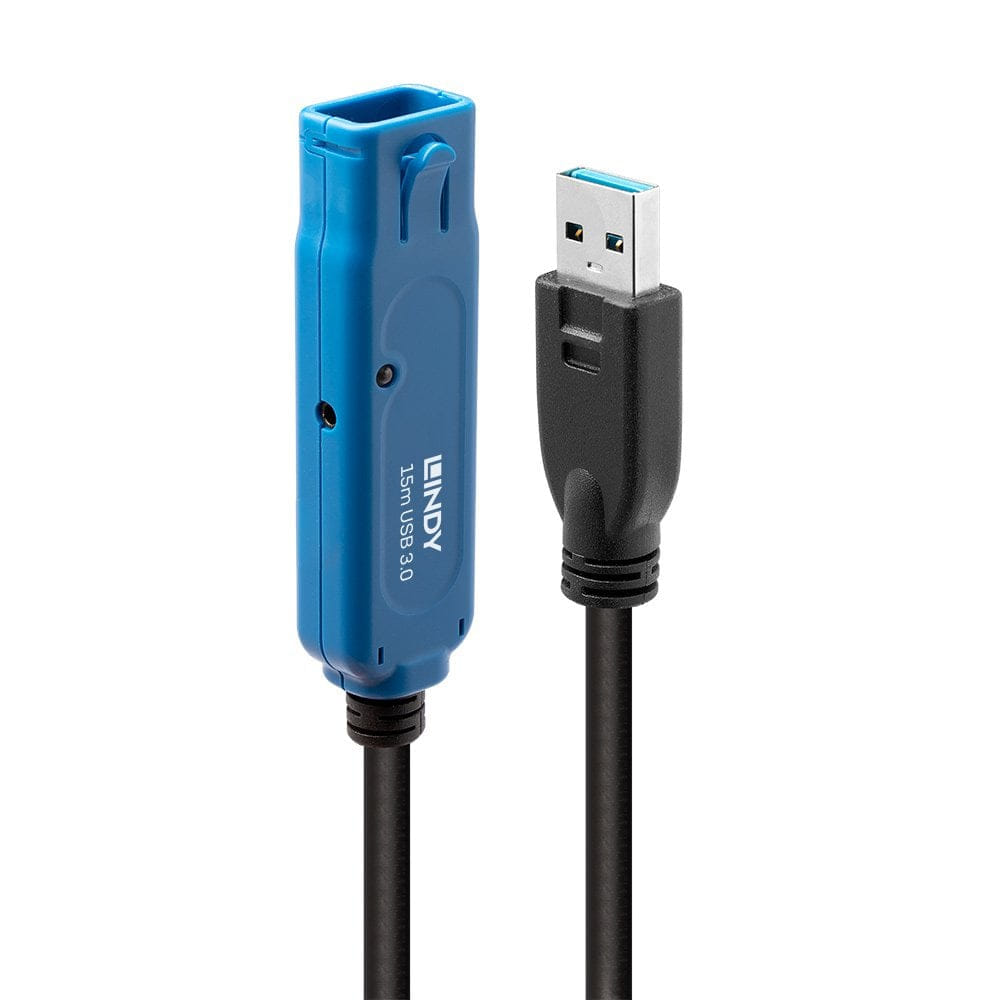

This cable is designed to be used as the starting point in an installation using the Lindy USB 3.0 Active Extension System Pro which gives you access to USB 3.0 SuperSpeed peripherals at long distances
| Features | |
| Cable length How long the cable is. | 15 m |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 This is the first connector in the device. | USB A |
| Connector 2 This is the second connector in the device. | USB A |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 24/24/20 |
| Connector material | Nickel |
| Contact material | Brass |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector housing material | Plastic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 5000 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Transmission medium | Twisted pair |
| Nominal attenuation | 0.064MHz - 0.08dB .256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Power | |
| Power note | 2.5/0.7mm DC Connector |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 7 mm |
| Bend radius (min) | 3.6 cm |
| Connector 1 dimensions (WxDxH) | 15 x 49 x 8 mm |
| Connector 2 dimensions (WxDxH) | 20 x 80 x 13 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 280 mm |
| Package depth The distance from the front to the back of the packaging. | 180 mm |
| Package height The distance from the top to the bottom of the packaging. | 10 mm |
| Package weight Weight of the packaged product. | 1.35 kg |
| Package type The type of product package e.g. box. | Box |
| Other features | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| SKU | 557060 |
| MPN | 43229 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
