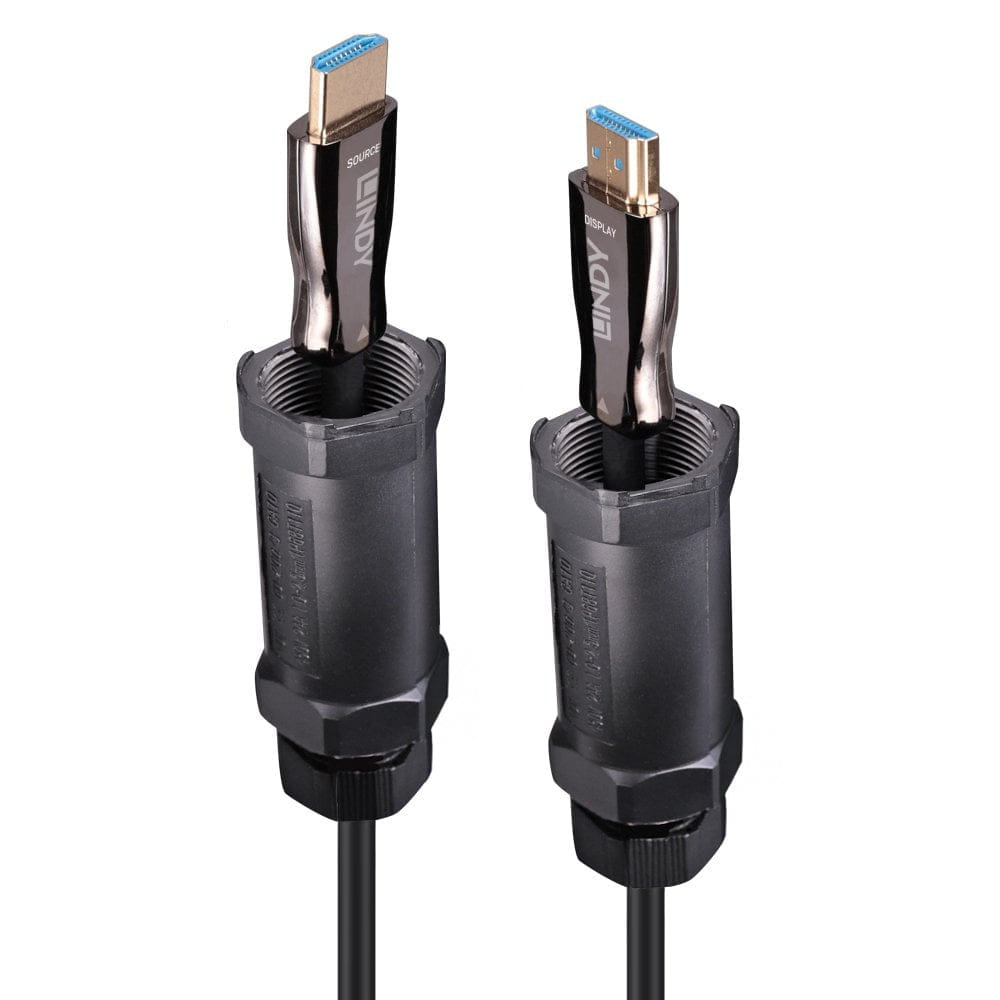

15m Armoured Fibre Optic Hybrid HDMI 8K60 Cable
Lindy's range of Armoured Fibre Optic Hybrid cables are a professional solution for extending HDMI® signals over longer distances. The construction of this extreme rugged HDMI® hybrid cable has under the cable sheath aramid fibres and an additional armoured jacket, maintaining a good flexibility and high EMI & RFI resistance. These hybrid cables are ideal for use in critical AV setups and professional installation such as live events and trade shows.
The maximum pulling force supported is up to 100N with a crush resistance up to 2000N, whilst with 6mm of diameter, the cable is very thin although the aramid fibres and the steel jacket under the TPE sheath.
The connectors are also extremely rugged with gold plated pins, they are enclosed from special protective sleeves, secured against transport damage.
The internal technology provides uncompressed amplification of the HDMI® signal, allowing long distance extension of HDMI® 8K content that is simply not possible with passive cables.
With 48Gbps bandwidth, these cables support HDMI® 2.1 resolutions up to 3840x2160@120Hz, and 7680x4320 / 10240x4320@60Hz. Content can be viewed with incredible detail and clarity at higher refresh rates for optimum viewing of movies, graphics or imagery.
As well as static HDR, HDMI® hybrid cables also brings further support for dynamic HDR formats such as Dolby Vision and HDR10+. This provides every moment of content, whether scene by scene or even frame by frame, with a much wider colour gamut based on the BT.2020 colour space, higher peak brightness and deep blacks for optimum contrasts as well as greater depth of colour.
Lindy's range of Armoured Fibre Optic Hybrid cables are a professional solution for extending HDMI® signals over longer distances. The construction of this extreme rugged HDMI® hybrid cable has under the cable sheath aramid fibres and an additional armoured jacket, maintaining a good flexibility and high EMI & RFI resistance. These hybrid cables are ideal for use in critical AV setups and professional installation such as live events and trade shows.
The maximum pulling force supported is up to 100N with a crush resistance up to 2000N, whilst with 6mm of diameter, the cable is very thin although the aramid fibres and the steel jacket under the TPE sheath.
The connectors are also extremely rugged with gold plated pins, they are enclosed from special protective sleeves, secured against transport damage.
The internal technology provides uncompressed amplification of the HDMI® signal, allowing long distance extension of HDMI® 8K content that is simply not possible with passive cables.
With 48Gbps bandwidth, these cables support HDMI® 2.1 resolutions up to 3840x2160@120Hz, and 7680x4320 / 10240x4320@60Hz. Content can be viewed with incredible detail and clarity at higher refresh rates for optimum viewing of movies, graphics or imagery.
As well as static HDR, HDMI® hybrid cables also brings further support for dynamic HDR formats such as Dolby Vision and HDR10+. This provides every moment of content, whether scene by scene or even frame by frame, with a much wider colour gamut based on the BT.2020 colour space, higher peak brightness and deep blacks for optimum contrasts as well as greater depth of colour.
| Features | |
| Cable length How long the cable is. | 15 m |
| Connector 1 This is the first connector in the device. | HDMI Type A (Standard) |
| Connector 2 This is the second connector in the device. | HDMI Type A (Standard) |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| HDMI version | 2.1 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160, 7680 x 4320 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 48 Gbit/s |
| Maximum refresh rate | 120 Hz |
| AWG wire size | 32 |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Connector material | Zinc alloy |
| Cable material The material e.g. copper, steel from which the cable is made. | Fibre optic/Copper |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Magnetically shielded |
 |
| Shield material | Aluminium |
| Bending radius (min) | 2 cm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 6 mm |
| Connector 1 dimensions (WxDxH) | 18.3 x 38 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 18.3 x 38 x 8.3 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Quantity per pack | 1 pc(s) |
| SKU | 813007 |
| MPN | 38528 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
