Lindy 150m CAT6 TosLink/Coaxial Digital Audio Extender

Item No:
790202
MPN:
70456
$195.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
  • Unavailable at Northmead Store

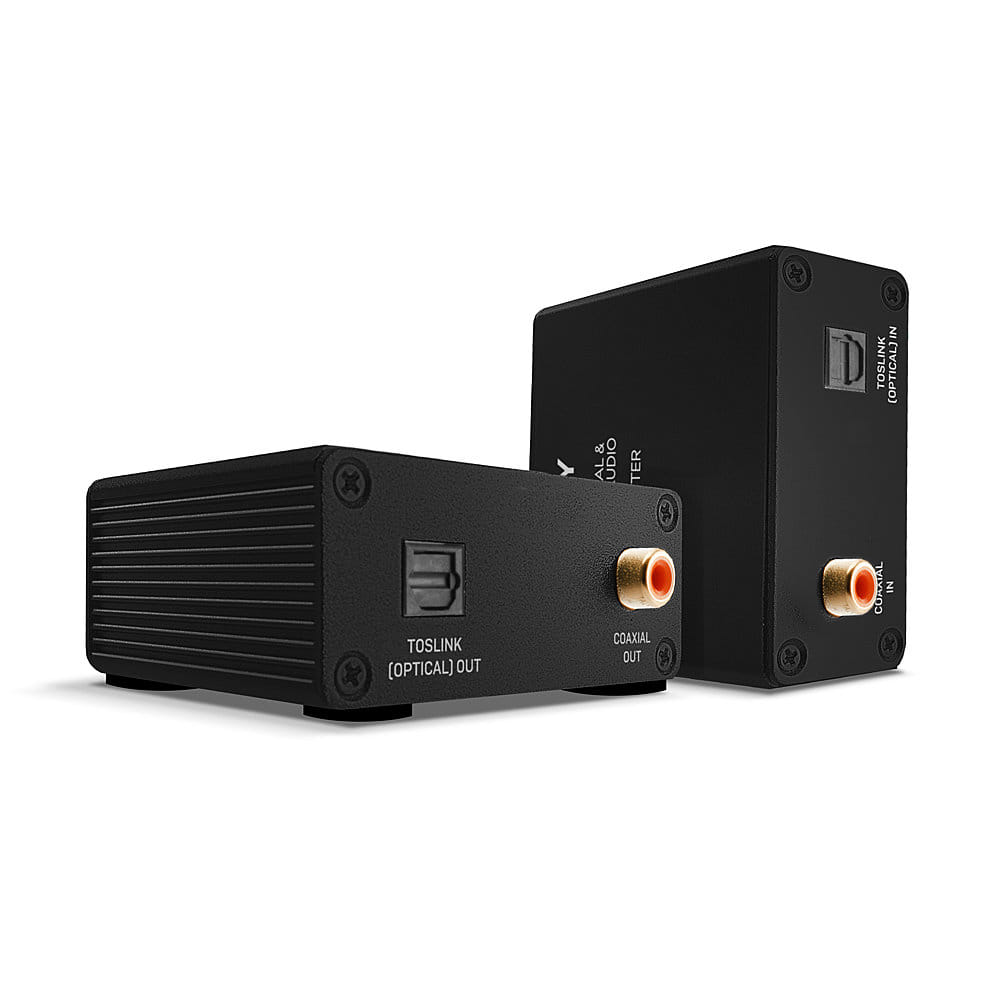

Lindy 150m Cat.6 TosLink (Optical) and Coaxial Digital Audio Extender, AV transmitter & receiver, 150 m, Wired, Black
The Lindy 150m Cat.6 TosLink (Optical) and Coaxial Digital Audio Extender is a high-quality solution for extending digital audio signals over long distances, using standard network cable. With TosLink (Optical) and coaxial inputs and outputs, this extender can be easily used with a variety of AV source devices including TVs and amplifiers, with speakers or soundbars located at the receiver side.Connected audio can be output simultaneously to provide splitting functionality from a single input, great for smaller audio broadcasting setups in underground railway stations, bus depots or medical facilities. This also allows simple conversion of TosLink and Coaxial signals into their opposing output.

Supporting both stereo and multi-channel audio extension, this extender will allow for impressive three-dimensional surround sound performance to compliment films and games when connected to the audio source device, as well as crystal clear speech from user generated audio. This provides the user with an excellent point to point solution, ideal for use in immersive residential cinema rooms or creating a more attractive and enticing retail experience.

PoC (Power over Cable) functionality, the supply of power and data signals over Cat.6 cable on a point to point connection between the transmitter and receiver also brings additional flexibility as only one power supply is required at the transmitter unit, ideal when power outlets are limited at the receiver end of the installation.

Please note: simultaneous output is only possible when identical 96KHz sample rates are used
Features
Type Characteristics of the device. AV transmitter & receiver
Cable types supported Cat5e, Cat6
Maximum transfer distance The greatest distance over which the data/signal can be transferred. 150 m
Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. EL5171/ EL5172
Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. DTS, LPCM
Material The material from which a thing is or can be made e.g. wood, plastic. Metal
Product colour The colour e.g. red, blue, green, black, white. Black
Certification CE, FCC, RoHS, REACH & California Proposition 65
Ports & interfaces
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. Wired
RJ-45 input ports 1
RJ-45 output ports 1
Digital audio coaxial in The socket in the device for the digital audio input. The signal is broight into the device via a coaxial cable with an RCA connector. 1
Digital audio coaxial out The socket in the device for the digital audio output. The signal is carried via a coaxial cable with an RCA connector. 1
Digital audio optical in The socket in the device for the digital audio input. The signal is inputted via an optical cable with an TOSLINK connector. 1
Digital audio optical input type TOSLINK
Digital audio optical out The socket in the device for the digital audio output. The signal is carried via an optical cable with an TOSLINK connector. 1
DC-in jack The socket/plug where the DC electricity supply connects to the device.
Power
Operating voltage (transmitter) 12 V
Current 1.25 A
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -10 - 80 °C
Operating relative humidity (H-H) 5 - 90%
Weight & dimensions
Receiver dimensions (WxDxH) 65.9 x 26.9 x 53.1 mm
Receiver weight 168 g
Transmitter dimensions (WxDxH) 65.9 x 26.9 x 53.1 mm
Transmitter weight 168 g
Packaging data
Package width The distance from one side of the packaging to the other. 190 mm
Package depth The distance from the front to the back of the packaging. 60 mm
Package height The distance from the top to the bottom of the packaging. 145 mm
Package weight Weight of the packaged product. 405 g
Package type The type of product package e.g. box. Box
Packaging content
AC adapter included
Included power plug types EU, UK, US
Manual
Technical details
Sustainability certificates RoHS
