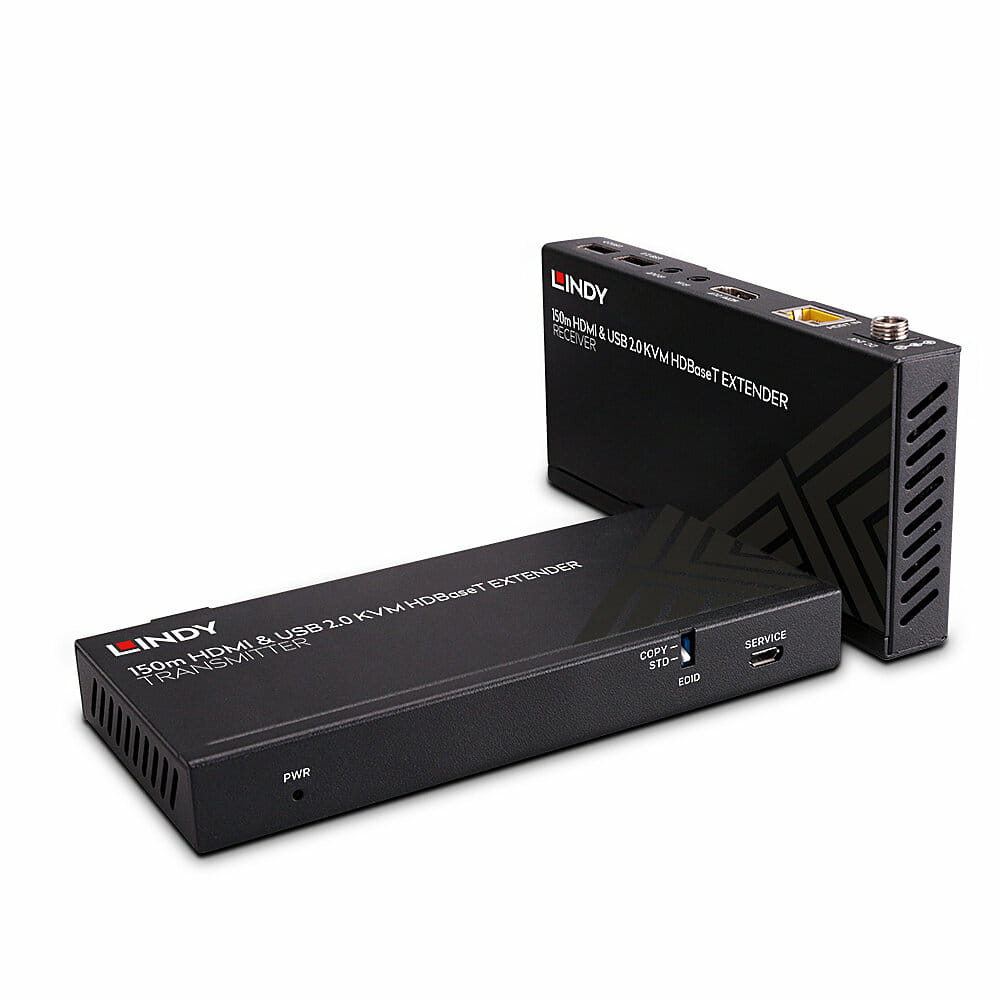

Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender, Transmitter & receiver, Wired, 150 m, 20 - 60 kHz, Cat6, 3840 x 2160 pixels
The Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Setting up HDBT mode, this extender supports USB 2.0 devices like mouse, keyboard, and other peripherals to be connected to the receiver to control a source device such as a PC or laptop or for data transfer while in Long Reach mode only USB HID devices are supported. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT_ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Setting up HDBT mode, this extender supports USB 2.0 devices like mouse, keyboard, and other peripherals to be connected to the receiver to control a source device such as a PC or laptop or for data transfer while in Long Reach mode only USB HID devices are supported. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT_ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 150 m |
| Infrared (IR) frequency range | 20 - 60 kHz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| HDCP version | 2.2 |
| Cable types supported | Cat6 |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Colour depth | 12 bit |
| Supported resolutions | 3840 x 2160 1920 x 1080 |
| Extended display identification data (EDID) |
|
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | VS010-A0 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Bandwidth | 18 Gbit/s |
| Transmitter | |
| Transmitter local video port |
|
| Transmitter local video port type | HDMI |
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter Micro-USB ports quantity | 1 |
| Transmitter USB Type-B ports quantity | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| RJ-45 ports quantity (receiver) | 1 |
| Receiver Micro-USB ports quantity | 1 |
| Receiver USB Type-A ports quantity | 2 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (transmitter) (max) | 13.2 W |
| Power consumption (receiver) (max) | 13.2 W |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Transmitter width | 14 cm |
| Transmitter depth | 6.5 cm |
| Transmitter height | 1.8 cm |
| Transmitter weight | 790 g |
| Receiver width | 14 cm |
| Receiver depth | 6.5 cm |
| Receiver height | 1.8 cm |
| Receiver weight | 790 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 245 mm |
| Package depth The distance from the front to the back of the packaging. | 185 mm |
| Package height The distance from the top to the bottom of the packaging. | 75 mm |
| Package weight Weight of the packaged product. | 1.02 kg |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Packaging content | |
| Cables included | IR, USB Type-A to USB Type-B |
| Manual |
|
| Included power plug types | AU, EU, UK, US |
| Screws included |
|
| Ports & interfaces | |
| HDMI version | 2.0 |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| SKU | 788867 |
| MPN | 39384 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
