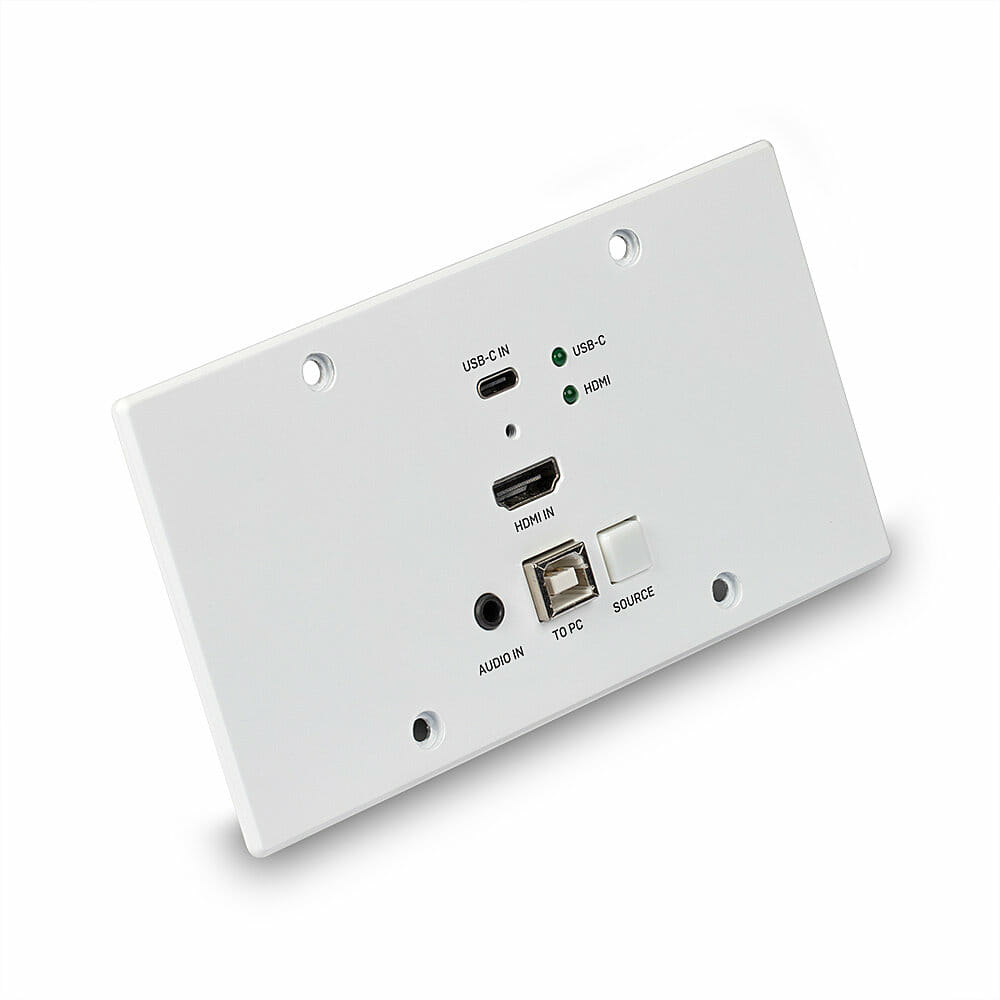

Lindy 150m Cat.6 HDMI 4K60 & Type C HDBaseT EU Wall Plate KVM Extender, Transmitter, Transmitter, Wired, 150 m, Cat6, 3840 x 2160 pixels, 60 Hz
Extends Type C or HDMI and USB signals up to 150m via HDBaseT
The Lindy Cat.6 HDBaseT HDMI 4K60 & Type C Wall Plate Transmitter is one part of a high performance, reliable solution for extending AV and data signals over long distances via Cat.6 network cable.
By combining this Transmitter unit with a compatible HDBaseT Receiver such as Lindy No. 38389, this solution ensures reliable transmission up to 150m.
The following distance and resolution combinations are possible when using high quality Cat.6 or above U/UTP or F/UTP cable:
Standard Mode (STD)
90m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Long Reach Mode (LRM)
150m: 3840x2160@30Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
Pushing the Source button on the front panel allow the user to switch between Type C or HDMI (with USB) inputs in order to control a source such as a PC from a compatible HDBaseT KVM Receiver. Auto switch feature is also supported.
PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block on the rear side of the wall plate.
HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT_ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above cable. Using a different cable type, introducing couplers or patch panels may result in a reduction of possible distances.
The Lindy Cat.6 HDBaseT HDMI 4K60 & Type C Wall Plate Transmitter is one part of a high performance, reliable solution for extending AV and data signals over long distances via Cat.6 network cable.
By combining this Transmitter unit with a compatible HDBaseT Receiver such as Lindy No. 38389, this solution ensures reliable transmission up to 150m.
The following distance and resolution combinations are possible when using high quality Cat.6 or above U/UTP or F/UTP cable:
Standard Mode (STD)
90m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Long Reach Mode (LRM)
150m: 3840x2160@30Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
Pushing the Source button on the front panel allow the user to switch between Type C or HDMI (with USB) inputs in order to control a source such as a PC from a compatible HDBaseT KVM Receiver. Auto switch feature is also supported.
PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block on the rear side of the wall plate.
HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT_ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above cable. Using a different cable type, introducing couplers or patch panels may result in a reduction of possible distances.
| Features | |
| Type Characteristics of the device. | Transmitter |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 150 m |
| Cable types supported | Cat6 |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Colour depth | 8 bit |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal, Plastic |
| LED indicators |
 |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | VS2010 |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Transmitter | |
| Transmitter video port type | HDMI |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| RJ-45 ports quantity (receiver) | 1 |
| Ports & interfaces | |
| USB port type | USB Type-C |
| HDMI version | 2.0 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 24 V |
| Input current | 1 A |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 172 mm |
| Package depth The distance from the front to the back of the packaging. | 98 mm |
| Package height The distance from the top to the bottom of the packaging. | 133 mm |
| Package weight Weight of the packaged product. | 540 g |
| Packaging content | |
| Manual |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Sustainability | |
| Sustainability compliance |
|
| Other features | |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 2.2 |
| Extended display identification data (EDID) |
|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Technical details | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 152 x 33.5 x 81 mm |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 390 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| SKU | 828472 |
| MPN | 38388 |
| Brand | Lindy |
