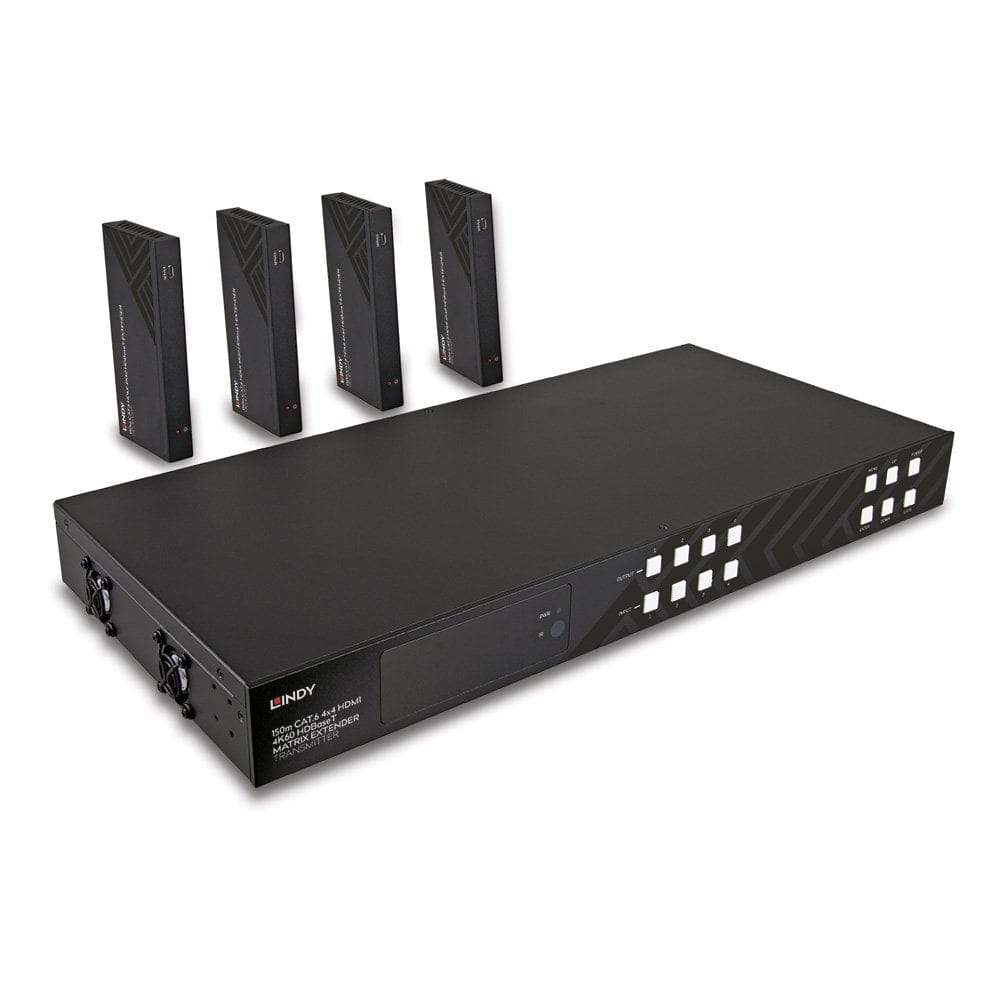

Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender, 3840 x 2160 pixels, AV transmitter & receiver, 150 m, Wired, Black, HDCP
The Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender is an high-end and complete solution to switch and extend 4 HDMI signals to 4 HDBaseT receivers using Cat.6 or above cables up to 150m.
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Matrix Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such as analog and coax de-embedded audio, IR matrix function and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out ports enables simultaneous viewing so that a local display can be connected for monitoring each HDBaseT output, or to create additional viewing zones.
PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver, meaning only the transmitter unit needs to be powered on.
This unit can be managed by pushing the buttons on the front panel via OSD menu with a OLED screen, IR remote control (included), RS-232 or TCP/IP commands and web GUI.
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Matrix Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such as analog and coax de-embedded audio, IR matrix function and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out ports enables simultaneous viewing so that a local display can be connected for monitoring each HDBaseT output, or to create additional viewing zones.
PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver, meaning only the transmitter unit needs to be powered on.
This unit can be managed by pushing the buttons on the front panel via OSD menu with a OLED screen, IR remote control (included), RS-232 or TCP/IP commands and web GUI.
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 150 m |
| High Dynamic Range (HDR) supported |
 |
| EDID management |
|
| HDCP pass-through |
|
| Infrared (IR) frequency range | 20 - 60 kHz |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Bandwidth | 18 Gbit/s |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | LPCM |
| On/off switch The button which is pressed to switch the device on or off. |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | 90 dB |
| HDCP version | 2.2 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | California Proposition 65 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 output ports | 4 |
| HDBaseT port |
|
| HDMI in Port (socket) for HDMI input. | 4 |
| Number of HDMI outputs Port (socket) for HDMI output. | 5 |
| HDMI version | 2.0 |
| RS-232 input ports | 2 |
| Digital audio coaxial out The socket in the device for the digital audio output. The signal is carried via a coaxial cable with an RCA connector. | 4 |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 4 |
| 3.5 mm (1/8-inch) in |
|
| 3.5 mm (1/8-inch) out |
|
| Audio RCA outputs | 4 |
| Power | |
| Power source type What the power source is. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power requirements | 60 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 45 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.31 kg |
| Receiver dimensions (WxDxH) | 140 x 65 x 18 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 510 mm |
| Package depth The distance from the front to the back of the packaging. | 401 mm |
| Package height The distance from the top to the bottom of the packaging. | 98 mm |
| Package weight Weight of the packaged product. | 6.33 kg |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Manual |
|
| Packaging content | 4x4 HDBaseT Extender Matrix - Transmitter 4 x HDBaseT Receivers 5 x IR Emitter Cable, 1.5m 5 x IR Receiver Cable, 1.5m 10 x Mounting Ears & Screws 4 x 3-Pin Terminal Block 4 x 5-Pin Terminal Block RS-232 Male to Female cable, 1.5m 4 x mains cables (EU, UK, US & AUS), 1.5m Lindy Manual |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Warranty period | 2 year(s) |
| SKU | 788693 |
| MPN | 38345 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter, HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
