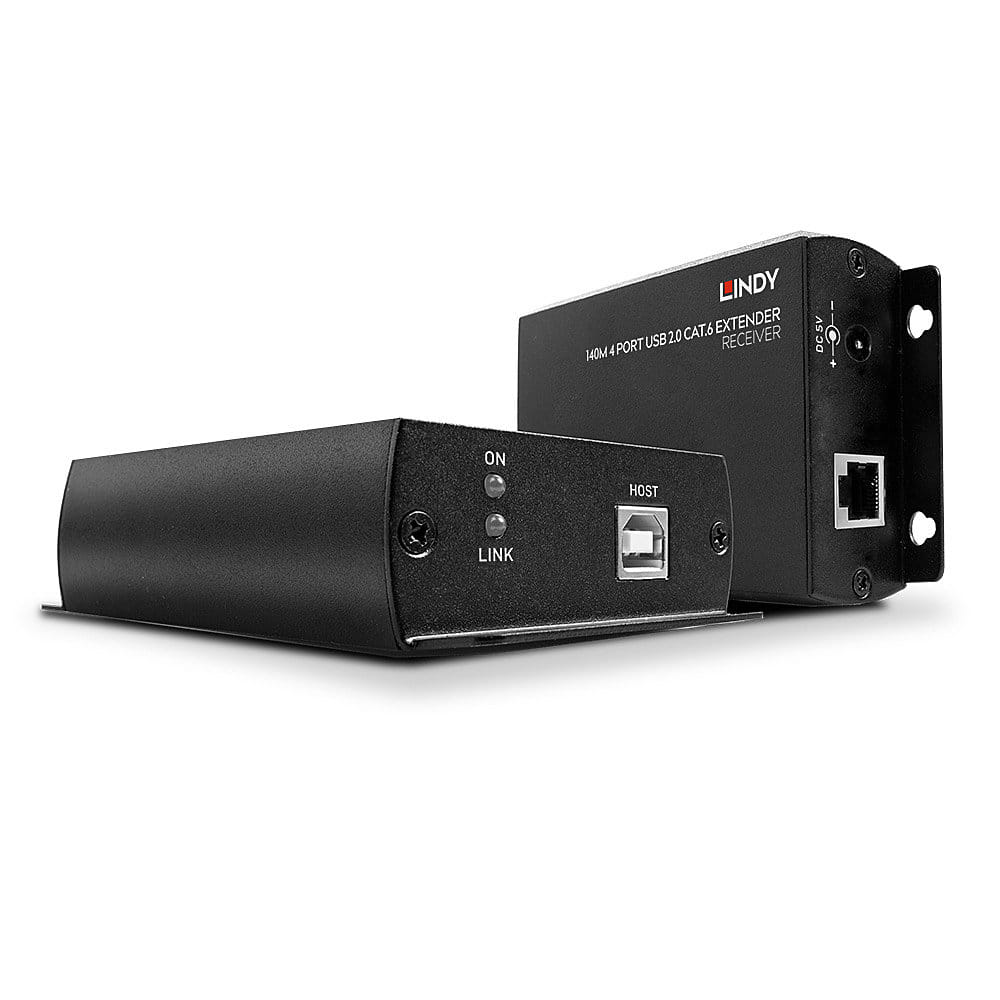

Lindy 140m 4 Port USB 2.0 Cat.6 Extender, Transmitter & receiver, Wired, 140 m, Cat5e, Cat6, Black, Aluminium
The Lindy USB 2.0 Cat.6 Extender extends the distance between four USB peripheral devices and a PC over distances up to 140m using a single Cat.6 UTP or higher network cable. Cat.5e UTP/STP cable can be used in lengths up to a maximum of 120m. For best performance and compatibility, we recommend the use of solid core patched cables. For best performance and compatibility, we recommend the use of solid core patched cables.
This Extender is a two-part hardware solution comprising of a transmitter that connects directly to your computer and a receiver that connects to the USB device.
With a robust aluminium housing and mounting points, it is the ideal solution for providing remote access to printers, scanners, webcams* and external HDD and flash drive storage. The Extender is also perfect for digital signage applications, home network integration, industrial control, security, USB device sharing, and KVM extension. The included power supply for the receiver unit ensures secure and uninterrupted power to all devices.
*tested with Logitech C310, Logitech C920e, V-Gear Talkcam LIVE 09-VTL480, I-Family IF-008B
For the latest firmware fixing compatibility issue, please contact our support team.
Please note: Through the use of the Signal Repeater No. 42709 distances can be doubled up to 280m.
Information about USB 3.0, 3.1 and 3.2USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
This Extender is a two-part hardware solution comprising of a transmitter that connects directly to your computer and a receiver that connects to the USB device.
With a robust aluminium housing and mounting points, it is the ideal solution for providing remote access to printers, scanners, webcams* and external HDD and flash drive storage. The Extender is also perfect for digital signage applications, home network integration, industrial control, security, USB device sharing, and KVM extension. The included power supply for the receiver unit ensures secure and uninterrupted power to all devices.
*tested with Logitech C310, Logitech C920e, V-Gear Talkcam LIVE 09-VTL480, I-Family IF-008B
For the latest firmware fixing compatibility issue, please contact our support team.
Please note: Through the use of the Signal Repeater No. 42709 distances can be doubled up to 280m.
Information about USB 3.0, 3.1 and 3.2USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 140 m |
| Cable types supported | Cat5e, Cat6 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 5 |
| USB data transfer rates | 480 Mbit/s |
| LED indicators |
 |
| Certification | CE, FCC, RoHS & REACH, CP65 |
| Transmitter | |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2.6 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Transmitter width | 12 cm |
| Transmitter depth | 6.7 cm |
| Transmitter height | 2.7 cm |
| Transmitter weight | 190 g |
| Receiver width | 13 cm |
| Receiver depth | 6.7 cm |
| Receiver height | 2.7 cm |
| Receiver weight | 210 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 240 mm |
| Package depth The distance from the front to the back of the packaging. | 150 mm |
| Package height The distance from the top to the bottom of the packaging. | 55 mm |
| Package weight Weight of the packaged product. | 1.32 kg |
| Packaging content | |
| AC adapter included |
|
| Cables included | USB Type-A to USB Type-B |
| Manual |
|
| Included power plug types | EU, UK, US |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| SKU | 789215 |
| MPN | 42710 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter, USB Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
