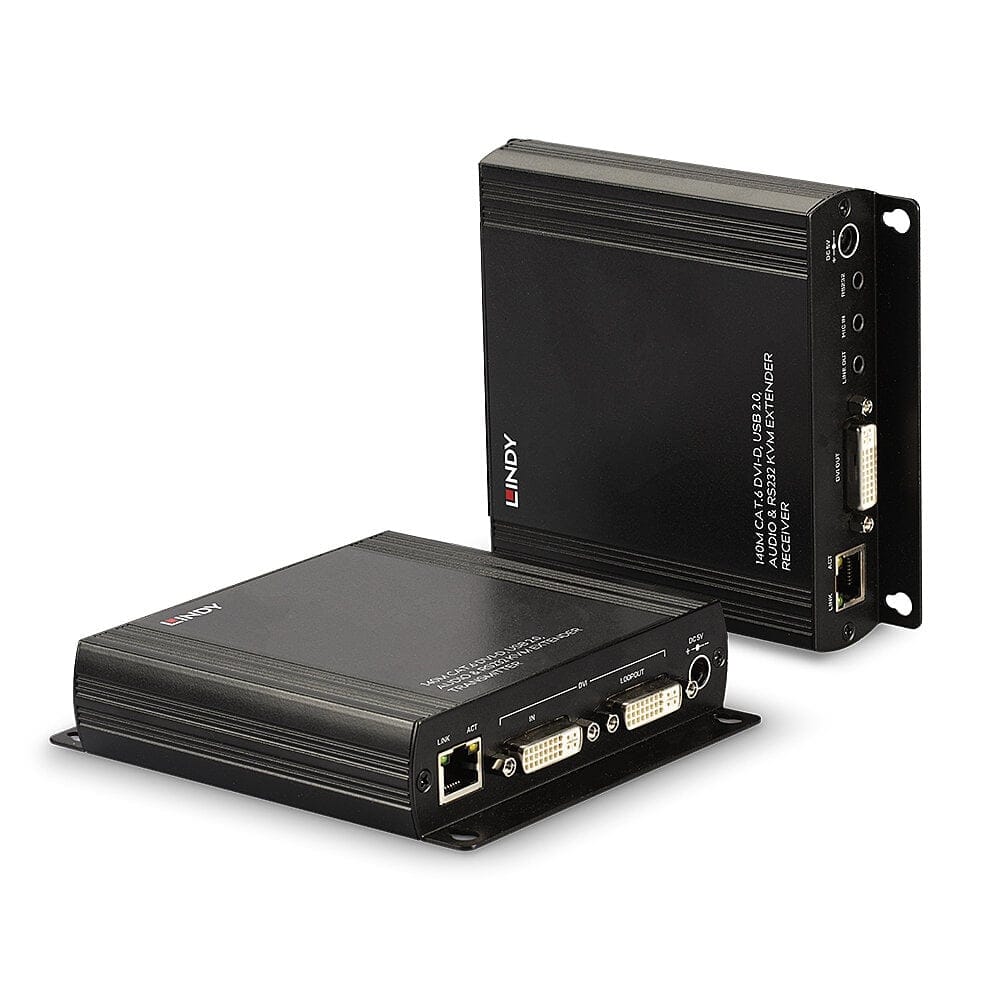

Lindy 140m Cat.6 DVI-D, USB, Audio and RS-232 KVM Extender, Transmitter & receiver, Wired, 140 m, Cat6, 60 Hz, Black
The Lindy Cat.6 DVI-D Single Link, USB, Audio and RS-232 KVM Extender allows users to control a source device such as a PC from a single keyboard, mouse and display up to 140m using a Cat.6 RJ-45 cable. Supports single link resolutions up to 1920x1200 and HDMI signals including Full HD 1080p, 3D and HDCP 1.4. Ideal for KVM applications, the Extender consists of a transmitter and a receiver unit. The transmitter must be connected to a source such as a PC or KVM Switch, while the console with display, keyboard and mouse must be connected to the receiver. It s also possible to connect additional USB 2.0 devices such as storage and hard drives (webcams are not supported).
The extenders built-in EDID function ensures maximum compatibility with the display or projector at the receiver or even at the loop out DVI port on the transmitter, while analogue audio 3.5mm inputs and outputs allow users to connect speakers, microphones and a line-in interface.
RS-232 connections also allow for integration into pre-installed control systems.
This extender provides a simple plug and play installation, with no additional drivers required, great for both professional and first time users. In addition to point-to-point applications, it can be used also via a gigabit network, a rotary switch on both units can pair transmitters with receivers.
Please note: to reach distances longer that 140m, it is possible to add a gigabit network switch or the repeater 42709 inbetween transmitter and receiver (with 42709 the total length supported is up to 280m).
The extenders built-in EDID function ensures maximum compatibility with the display or projector at the receiver or even at the loop out DVI port on the transmitter, while analogue audio 3.5mm inputs and outputs allow users to connect speakers, microphones and a line-in interface.
RS-232 connections also allow for integration into pre-installed control systems.
This extender provides a simple plug and play installation, with no additional drivers required, great for both professional and first time users. In addition to point-to-point applications, it can be used also via a gigabit network, a rotary switch on both units can pair transmitters with receivers.
Please note: to reach distances longer that 140m, it is possible to add a gigabit network switch or the repeater 42709 inbetween transmitter and receiver (with 42709 the total length supported is up to 280m).
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 140 m |
| Cable types supported | Cat6 |
| Maximum refresh rate | 60 Hz |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Transmitter | |
| Transmitter video port type | DVI-I |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | DVI-I |
| RJ-45 ports quantity (receiver) | 1 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Transmitter width | 12.5 cm |
| Transmitter depth | 14 cm |
| Transmitter height | 3 cm |
| Receiver width | 12.5 cm |
| Receiver depth | 14 cm |
| Receiver height | 3 cm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 355 mm |
| Package depth The distance from the front to the back of the packaging. | 195 mm |
| Package height The distance from the top to the bottom of the packaging. | 60 mm |
| Package weight Weight of the packaged product. | 1.52 kg |
| Technical details | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Power requirements | 5VDC 2.6A |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.27 kg |
| Packaging content | |
| AC adapter included |
 |
| Screwdriver included |
|
| Cables included | Audio (3.5mm), RS-232, USB Type-A to USB Type-B |
| Manual |
|
| Ports & interfaces | |
| USB port type | USB Type-A/USB Type-B |
| RJ-45 ports quantity | 2 |
| PC Audio in The socket (port) for the PC audio input. |
|
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| SKU | 788831 |
| MPN | 39245 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
