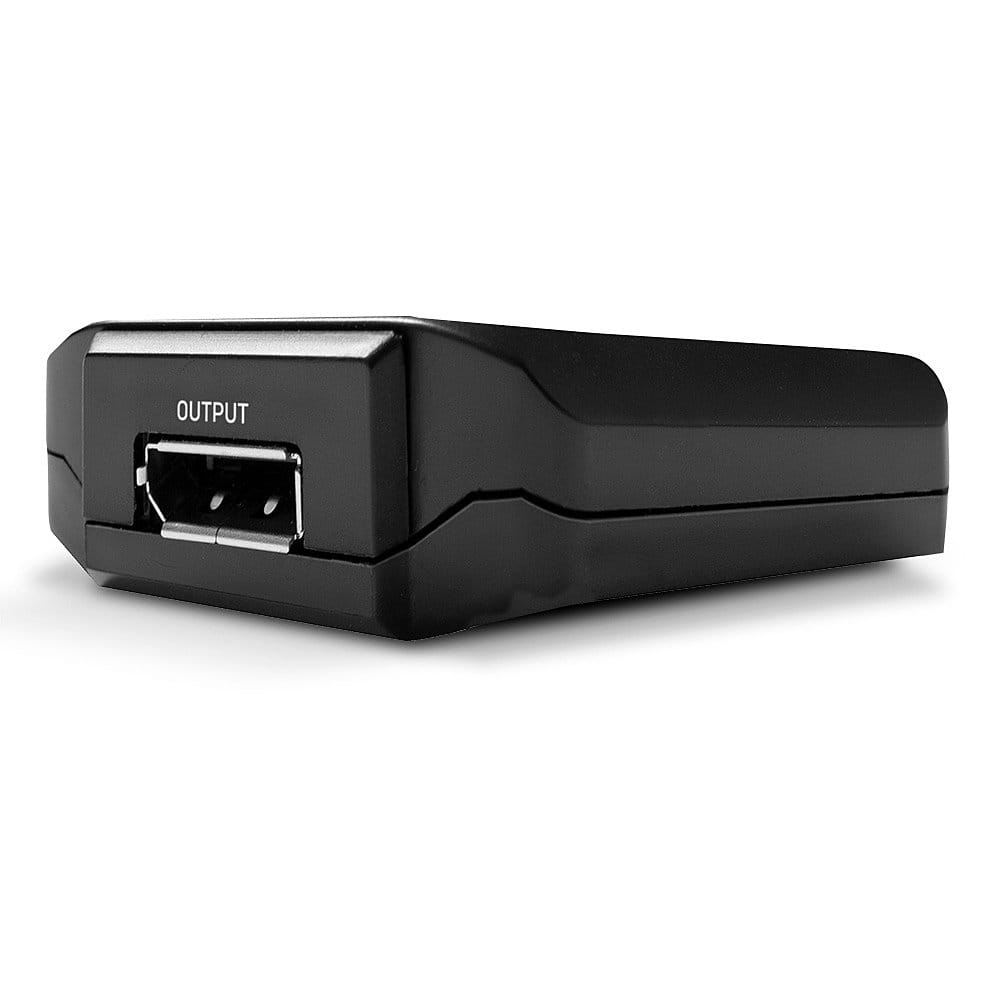

Lindy 12m DisplayPort 1.4 Repeater, 7680 x 4320 pixels, AV repeater, 35 m, Wired, Black, HDCP
Extends DisplayPort 1.4 UHD signals over distances up to 35m
Supports resolutions up to 7680x4320@60Hz 4:2:0 8bit and HDR
Five level cascade functionality allows the extension of 8K UHD content up to 32m
Compact form factor for discreet installation in presentation, conference and education spaces
2-year warranty
The Lindy DisplayPort 1.4 Repeater is an active solution for amplifying and extending high-resolution 8K UHD DisplayPort signals up to distances of 12m, or up to five repeaters can be cascaded together to extend 8K signals up to 32m. 4K UHD and Full HD resolutions can also be extended at distances up to 35m using a single repeater.
Support for 8K UHD resolutions and HDR are combined to create an exceptional viewing experience with enhanced brightness, greater contrasts and a much wider colour gamut. HDMI and multi-channel audio formats such as Dolby Atmos, Dolby TrueHD & DTS-X help to create a true sense of immersion when coupled with UHD resolutions and high refresh rates up to 144Hz in PC gaming and other applications. HDCP and DPCP 1.0 support ensures maximum compatibility with copy protected digital content from streaming services or media players.
By amplifying an input signal, the repeater overcomes the limitations of passive copper cables and can extend DisplayPort signals without errors over greater distances than traditional cables.
The repeater
Supports resolutions up to 7680x4320@60Hz 4:2:0 8bit and HDR
Five level cascade functionality allows the extension of 8K UHD content up to 32m
Compact form factor for discreet installation in presentation, conference and education spaces
2-year warranty
The Lindy DisplayPort 1.4 Repeater is an active solution for amplifying and extending high-resolution 8K UHD DisplayPort signals up to distances of 12m, or up to five repeaters can be cascaded together to extend 8K signals up to 32m. 4K UHD and Full HD resolutions can also be extended at distances up to 35m using a single repeater.
Support for 8K UHD resolutions and HDR are combined to create an exceptional viewing experience with enhanced brightness, greater contrasts and a much wider colour gamut. HDMI and multi-channel audio formats such as Dolby Atmos, Dolby TrueHD & DTS-X help to create a true sense of immersion when coupled with UHD resolutions and high refresh rates up to 144Hz in PC gaming and other applications. HDCP and DPCP 1.0 support ensures maximum compatibility with copy protected digital content from streaming services or media players.
By amplifying an input signal, the repeater overcomes the limitations of passive copper cables and can extend DisplayPort signals without errors over greater distances than traditional cables.
The repeater
| Features | |
| Type Characteristics of the device. | AV repeater |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 35 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 32.4 Gbit/s |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | CE, FCC, REACH & California Proposition 65 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Operating voltage Defines the range of operating voltages available | 5 V |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 54 mm |
| Depth The distance from the front to the back of something. | 54 mm |
| Height The measurement of the product from head to foot or from base to top. | 19 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 32 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 55 mm |
| Package depth The distance from the front to the back of the packaging. | 100 mm |
| Package height The distance from the top to the bottom of the packaging. | 140 mm |
| Package weight Weight of the packaged product. | 168 g |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 788759 |
| MPN | 38415 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | DisplayPort Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
