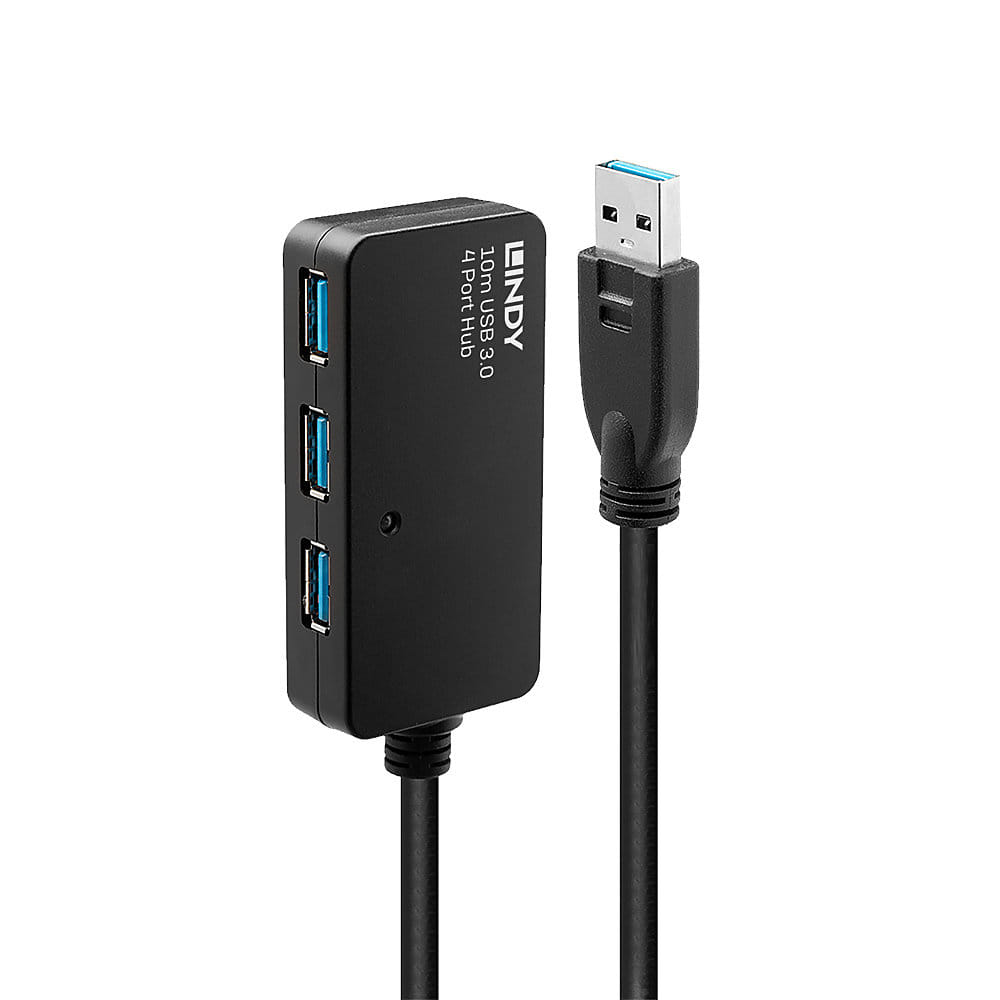

This cable can only be used as the final segment in a long distance USB 3.0 extender installation using the LINDY USB 3.0 Active Extension System Pro
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 5000 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| LED indicators |
|
| Plating material | Nickel |
| AWG wire size | 24/24/20 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable length How long the cable is. | 10 m |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 7 mm |
| Conductor material | Tinned copper |
| Contact material | Brass |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Bend radius (min) | 3.6 cm |
| Transmission medium | Twisted pair |
| Nominal attenuation | 0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Power | |
| Power note | 3.5/1.35mm DC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 38 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 790 g |
| Connector 1 dimensions (WxDxH) | 15 x 42 x 8 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 240 mm |
| Package depth The distance from the front to the back of the packaging. | 200 mm |
| Package height The distance from the top to the bottom of the packaging. | 70 mm |
| Package weight Weight of the packaged product. | 900 g |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Manual |
|
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °F |
| Design | |
| Cable shielding The protective layer for the cable, typically made of plastic. | Aluminum mylar foil |
| Other features | |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| SKU | 557039 |
| MPN | 43159 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
