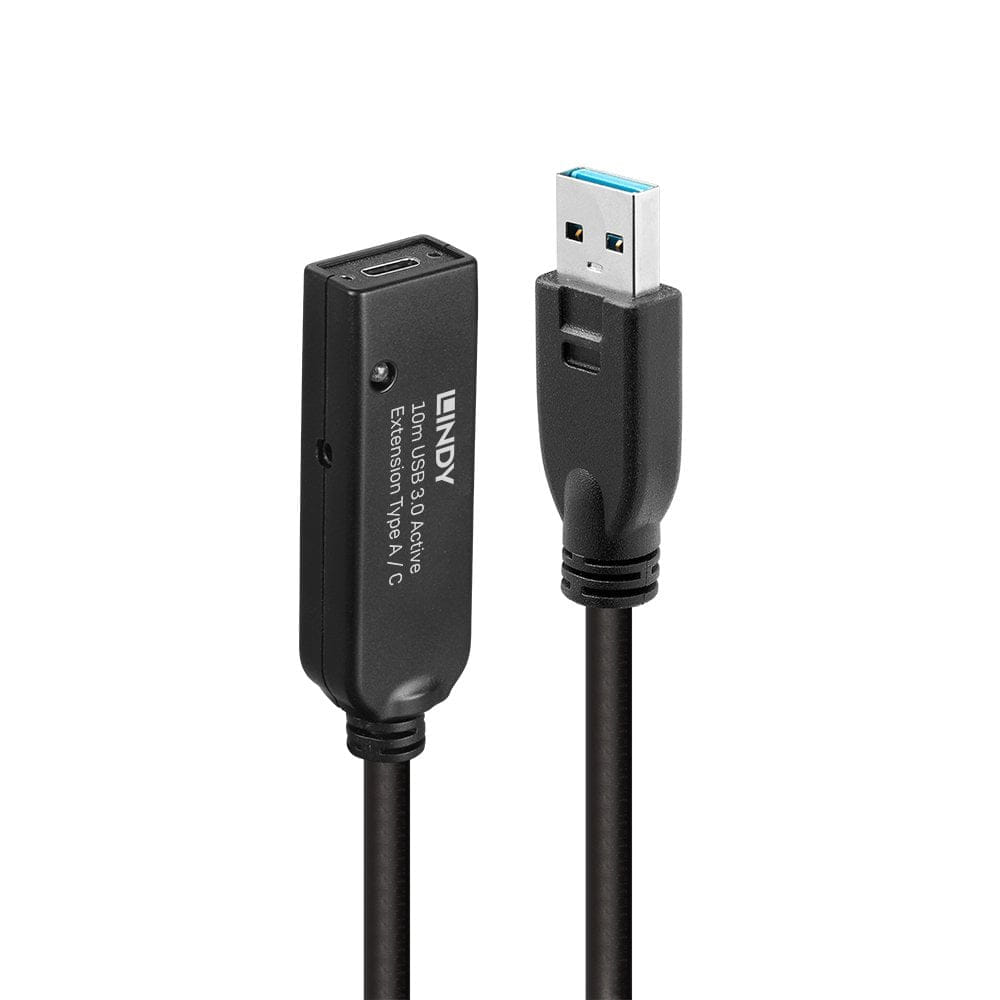

Lindy 10m USB 3.0 Active Extension Type A to C, 10 m, USB A, USB C, USB 3.2 Gen 1 (3.1 Gen 1), 5000 Mbit/s, Black
This Lindy 10m USB Active Extension Cable is a high performance active cable that allows access to USB Type C peripherals like webcams or storage devices over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.
This 10m extension cable can be used standalone or - for distances up to 38m - as part of the Lindy USB 3.0 Active Extension System Pro (No. 43157, 43158, 43229 or 43361). Please note that only No. 43157, 43158, 43229 or 43361 (depending on the maximum required distance) can be connected directly to your computer as first unit. The final part of the extension shall always be the 10m USB Type A to C Active Extension No. 43376.
A USB to DC adapter cable for power supply is included. Usually a 5V 1A power supply of a smartphone is enough to drive the connected device.For USB devices with high power demands, such as a USB Hub or storage device, it may be necessary to connect a bigger power supply with an output voltage and amperage up to 5V 3A.
This cable features industry-proven active technology and screw-lock connectors to ensure full signal integrity in the most demanding environments.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
This 10m extension cable can be used standalone or - for distances up to 38m - as part of the Lindy USB 3.0 Active Extension System Pro (No. 43157, 43158, 43229 or 43361). Please note that only No. 43157, 43158, 43229 or 43361 (depending on the maximum required distance) can be connected directly to your computer as first unit. The final part of the extension shall always be the 10m USB Type A to C Active Extension No. 43376.
A USB to DC adapter cable for power supply is included. Usually a 5V 1A power supply of a smartphone is enough to drive the connected device.For USB devices with high power demands, such as a USB Hub or storage device, it may be necessary to connect a bigger power supply with an output voltage and amperage up to 5V 3A.
This cable features industry-proven active technology and screw-lock connectors to ensure full signal integrity in the most demanding environments.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Features | |
| Cable length How long the cable is. | 10 m |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 This is the first connector in the device. | USB A |
| Connector 2 This is the second connector in the device. | USB C |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 24/24/20 |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shielding |
 |
| Connector housing material | Plastic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 5000 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Certification | California Proposition 65 |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 7 mm |
| Connector 1 dimensions (WxDxH) | 15 x 49 x 8 mm |
| Connector 2 dimensions (WxDxH) | 9.86 x 9.15 x 2.96 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 800 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 230 mm |
| Package depth The distance from the front to the back of the packaging. | 198 mm |
| Package height The distance from the top to the bottom of the packaging. | 63 mm |
| Package weight Weight of the packaged product. | 1 kg |
| Package type The type of product package e.g. box. | Box |
| Sustainability | |
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Technical details | |
| Warranty period | 2 year(s) |
| SKU | 789407 |
| MPN | 43376 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
