Lindy 38360, 100 m, OM3, MPO, MPO
The Lindy MPO Fibre Optic HDMI® 8K60 Extender is an effective, reliable solution for extending UHD HDMI® transmissions over distances up to 100m using one Type A MPO OM3 multimode fibre optic cable.
The extender can transmit 7680x4320@60Hz 4:4:4 10bit signals up to 100m with a MPO cable with no compression, allowing for distribution of lossless UltraHD content. With HDR (High Dynamic Range), HLG and Dolby Vision support, content can be seen enhanced contrast, and a much wider colour gamut and the support for lossless audio formats including Dolby Atmos & Dolby TrueHD adds powerful multi-channel sound to video content, provide an enhanced experience and sense of realism to the viewer.
The use of MPO multi-mode fibre optic cabling allows for the transmission of high bandwidth data over long distances. Fibre optic cables are also completely immune to any electromagnetic and radio frequency interference which makes this extender an ideal solution for installations within environments susceptible to high interference such as medical, aerospace and manufacturing facilities. The compact size and flexibility also allow for easy installation under floors and within wall partitions.

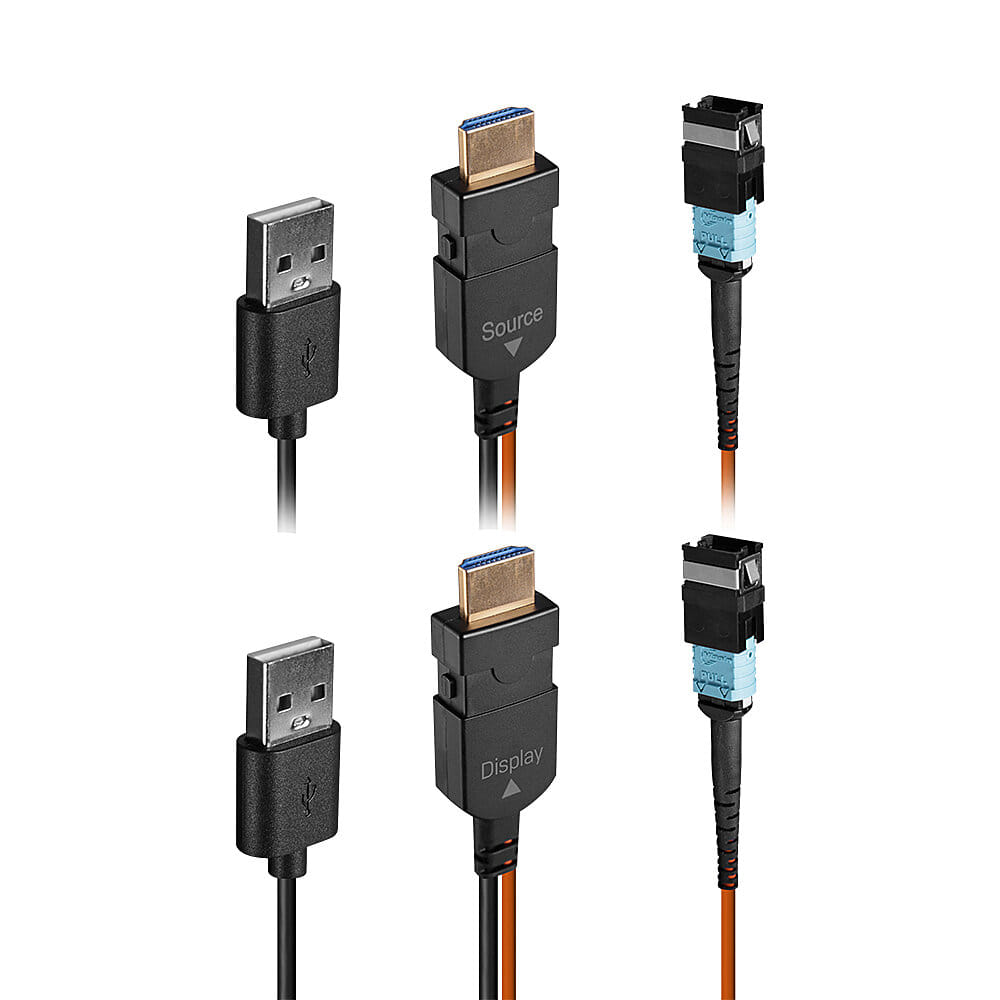

The low power requirement and super slim form factor provide invaluable flexibility when incorporating this extender into new and existing installations. Both units have integrated fibre optic cables with MPO Male connectors, a Type A MPO Female to Female cable (not included) can be connected to the units using two included MPO couplers.
Both units also have integrated USB cables to provide power, the transmitter unit can be powered by the HDMI® source while the receiver needs to be powered via USB port connecting it to a 5V USB charger or any powered USB port.
The extender can transmit 7680x4320@60Hz 4:4:4 10bit signals up to 100m with a MPO cable with no compression, allowing for distribution of lossless UltraHD content. With HDR (High Dynamic Range), HLG and Dolby Vision support, content can be seen enhanced contrast, and a much wider colour gamut and the support for lossless audio formats including Dolby Atmos & Dolby TrueHD adds powerful multi-channel sound to video content, provide an enhanced experience and sense of realism to the viewer.
The use of MPO multi-mode fibre optic cabling allows for the transmission of high bandwidth data over long distances. Fibre optic cables are also completely immune to any electromagnetic and radio frequency interference which makes this extender an ideal solution for installations within environments susceptible to high interference such as medical, aerospace and manufacturing facilities. The compact size and flexibility also allow for easy installation under floors and within wall partitions.
The low power requirement and super slim form factor provide invaluable flexibility when incorporating this extender into new and existing installations. Both units have integrated fibre optic cables with MPO Male connectors, a Type A MPO Female to Female cable (not included) can be connected to the units using two included MPO couplers.
Both units also have integrated USB cables to provide power, the transmitter unit can be powered by the HDMI® source while the receiver needs to be powered via USB port connecting it to a 5V USB charger or any powered USB port.
| Features | |
| Cable length How long the cable is. | 100 m |
| Fibre optic type The standardised properties of the fiber optic cable. | OM3 |
| Cable shape | Round |
| Connector type The type of connector e.g. USB. | HDMI, MPO, USB Type A |
| Connector 1 This is the first connector in the device. | MPO |
| Connector 2 This is the second connector in the device. | MPO |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Product colour The colour e.g. red, blue, green, black, white. | Multicolour |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 48 Gbit/s |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65, medical compliance |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 75 °C |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 240 mm |
| Package depth The distance from the front to the back of the packaging. | 240 mm |
| Package height The distance from the top to the bottom of the packaging. | 65 mm |
| Package weight Weight of the packaged product. | 180 g |
| Package type The type of product package e.g. box. | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| SKU | 828468 |
| MPN | 38360 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
