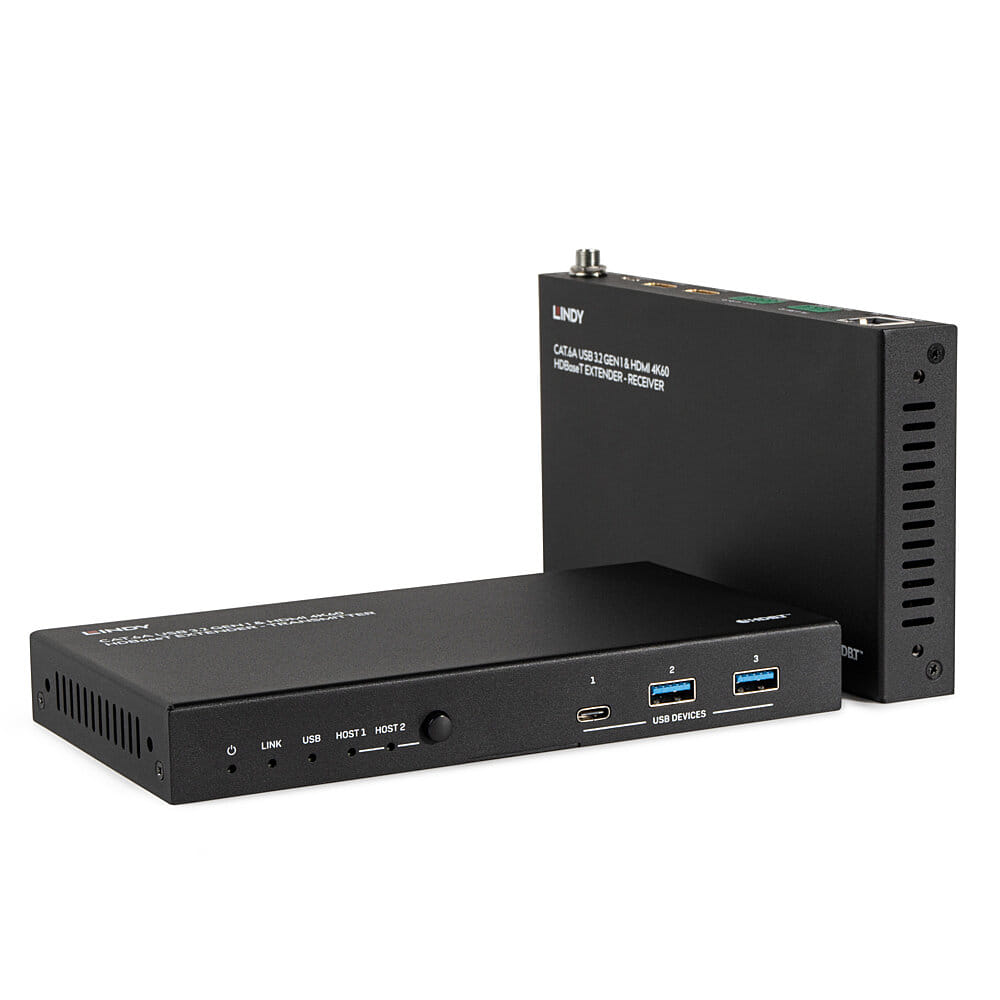

Lindy 100m Cat.6A 2 Host USB 3.2 Gen 1 & HDMI 4K60 HDBaseT Extender, Network transmitter & receiver, 100 m, 480 Mbit/s, Cat6a, VS6320, Phosphor bronze
This Lindy USB 3.2 Gen 1 & HDMI® 4K60 HDBaseT Extender can be used to extend the distance between 2 host computers and a console with 2 HDMI® displays and USB peripheral devices by up to 100m. Supports multiple USB signals, control, bulk, interrupt and isochronous data transfer.
A Cat.6A or above network cable* (not included) is used to bridge the connection between the transmitter and the receiver unit at the maximum supported distance of 100m (328.08ft).
The Extender features Power over Cable, which requires a single power supply only to be connected either to the transmitter unit or to the receiver unit. The Transmitter has 2 Type C switchable host ports, one of them supports Power Delivery up to 100W connecting an additional USB power supply from a dedicated Type C power port. Both units have local device ports, 1 Type A and 2 Type A each unit, while the Receiver features 2 HDMI® ports supporting Ultra HD resolutions up to 4K60.
Status LEDs help the user to check power, active host, link between Transmitter and Receiver and if data transfer is running while additional RS232 and FSYNC GPIO pass-though ports allow sending bi-directional commands also for industrial cameras. Switching between the 2 hosts can be done via front panel button on the Transmitter or can be set as automatic, it's also possible to control the extender via API commands.
With robust metal housing and mounting brackets, this Extender is the ideal solution for professional applications and industrial environments.
The power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
*: To get the best performances we recommend using HDBaseT-certified Cat.6A (or above) cables.
Please Note: switching between the 2 hosts can take a few seconds, please download the latest DisplayLink drivers.
This extender is certified by HDBaseT Alliance.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT Trade Mark and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
A Cat.6A or above network cable* (not included) is used to bridge the connection between the transmitter and the receiver unit at the maximum supported distance of 100m (328.08ft).
The Extender features Power over Cable, which requires a single power supply only to be connected either to the transmitter unit or to the receiver unit. The Transmitter has 2 Type C switchable host ports, one of them supports Power Delivery up to 100W connecting an additional USB power supply from a dedicated Type C power port. Both units have local device ports, 1 Type A and 2 Type A each unit, while the Receiver features 2 HDMI® ports supporting Ultra HD resolutions up to 4K60.
Status LEDs help the user to check power, active host, link between Transmitter and Receiver and if data transfer is running while additional RS232 and FSYNC GPIO pass-though ports allow sending bi-directional commands also for industrial cameras. Switching between the 2 hosts can be done via front panel button on the Transmitter or can be set as automatic, it's also possible to control the extender via API commands.
With robust metal housing and mounting brackets, this Extender is the ideal solution for professional applications and industrial environments.
The power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
*: To get the best performances we recommend using HDBaseT-certified Cat.6A (or above) cables.
Please Note: switching between the 2 hosts can take a few seconds, please download the latest DisplayLink drivers.
This extender is certified by HDBaseT Alliance.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT Trade Mark and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
| Performance | |
| Type Characteristics of the device. | Network transmitter & receiver |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 480 Mbit/s |
| Cable types supported | Cat6a |
| Chipset (transmitter) | VS6320 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| USB Type-C ports quantity (transmitter) | 4 |
| USB Type-C ports quantity (receiver) | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Contact material | Phosphor bronze |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Connector material | Gold |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Certification | CE, UKCA, FCC, RoHS & REACH, CP65 |
| Power | |
| External power adapter |
|
| Output voltage | 24 V |
| Output current | 3.75 A |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power note | 5.5/2.1mm DC |
| Included power plug types | AU, EU, UK, US |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 180 mm |
| Depth The distance from the front to the back of something. | 95 mm |
| Height The measurement of the product from head to foot or from base to top. | 23 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.58 kg |
| Packaging content | |
| Cables included | DC |
| Manual |
|
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Package width The distance from one side of the packaging to the other. | 260 mm |
| Package depth The distance from the front to the back of the packaging. | 252 mm |
| Package height The distance from the top to the bottom of the packaging. | 85 mm |
| Package volume | 1890 cm³ |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 828486 |
| MPN | 39365 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
