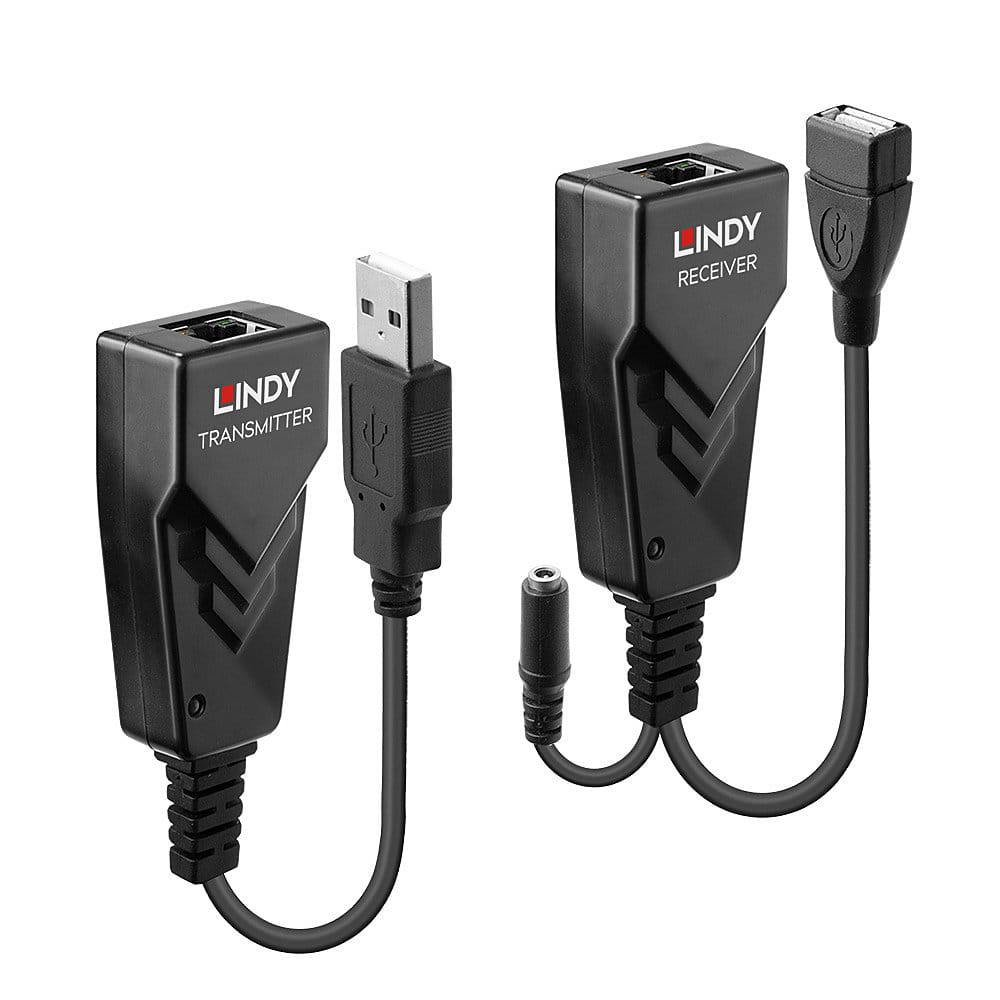

Lindy 100m USB 2.0 Cat.5 Extender, Network transmitter & receiver, 100 m, 480 Mbit/s, Cat5e,Cat6, CH317Q, CH536G, Black
Extends a single USB port up to 100m using Cat.5e network cable (not included)_x000D_
Plug & Play installation, OS independent_x000D_
Perfect for use with USB 2.0 devices such as storage devices, printers, scanners, mice and keyboards*_x000D_
Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed_x000D_
2 year warranty_x000D_
_x000D_
The Lindy 100m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 100m. It consists of a transmitter unit which connects to the computer and a receiver unit that connects to the device. Standard Cat.5e network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables._x000D_
_x000D_
For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required._x000D_
_x000D_
*Please note: This extender might not support USB devices that require high bandwidths such as FullHD webcams._x000D_
_x000D_
Plug & Play installation, OS independent_x000D_
Perfect for use with USB 2.0 devices such as storage devices, printers, scanners, mice and keyboards*_x000D_
Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed_x000D_
2 year warranty_x000D_
_x000D_
The Lindy 100m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 100m. It consists of a transmitter unit which connects to the computer and a receiver unit that connects to the device. Standard Cat.5e network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables._x000D_
_x000D_
For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required._x000D_
_x000D_
*Please note: This extender might not support USB devices that require high bandwidths such as FullHD webcams._x000D_
_x000D_
| Performance | |
| Type Characteristics of the device. | Network transmitter & receiver |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 480 Mbit/s |
| Cable types supported | Cat5e,Cat6 |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | CH317Q, CH536G |
| Ports & interfaces | |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Certification | CE, FCC, REACH, CP65 |
| Power | |
| Output voltage | 5 V |
| Output current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 36 mm |
| Depth The distance from the front to the back of something. | 22 mm |
| Height The measurement of the product from head to foot or from base to top. | 69 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 50 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Packaging content | |
| Manual |
 |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 200 mm |
| Package height The distance from the top to the bottom of the packaging. | 48 mm |
| Package weight Weight of the packaged product. | 250 g |
| SKU | 630798 |
| MPN | 42674 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
