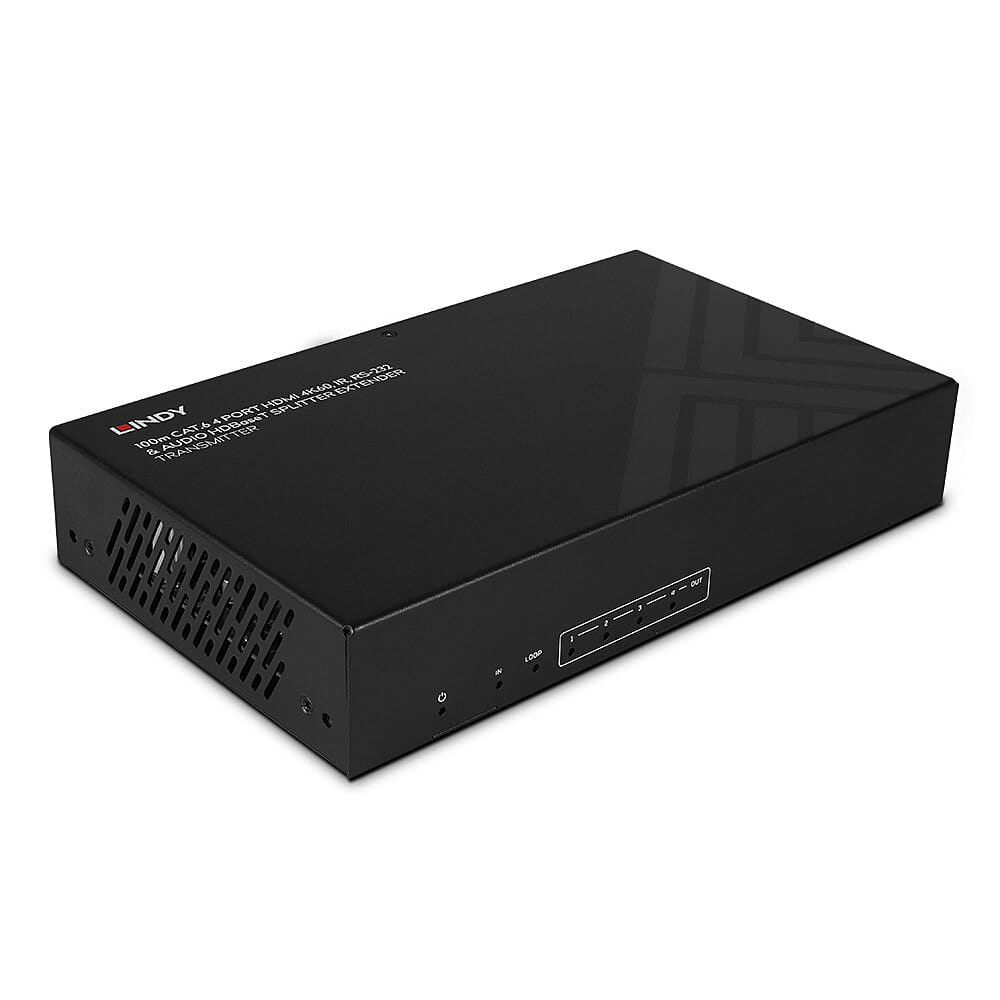

Lindy 100m Cat.6 4 Port HDMI 4K60 HDBT Splitter Extender, HDMI, HDMI, 3.5 mm, 3840 x 2160 pixels, Black, Metal
The Lindy 100m Cat.6 4 Port HDMI 4K60 HDBaseT Splitter Extender is an high end solution to Extend HDMI signals to 4 HDBaseT receivers (not included) using Cat.6 or above cables up to 100m.Compatible with most HDBaseT receivers on the market like N. 38342 and 38214.
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Splitter Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such asdigital and analog de-embedded audio, IR and RS-232 control or pass-through signals. An advanced EDID management allow the userto select different EDID modes while the integrated HDMI loop-out port enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone.
PoC (Power over Cable) functionality can be switched on and off to provide additional flexibility; this allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver with this function, meaning only a single power supply is required at the transmitter unit.
Please Note:Receviers are not included, ensure to use HDBaseT receivers that support all the required features.
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Splitter Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such asdigital and analog de-embedded audio, IR and RS-232 control or pass-through signals. An advanced EDID management allow the userto select different EDID modes while the integrated HDMI loop-out port enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone.
PoC (Power over Cable) functionality can be switched on and off to provide additional flexibility; this allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver with this function, meaning only a single power supply is required at the transmitter unit.
Please Note:Receviers are not included, ensure to use HDBaseT receivers that support all the required features.
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| Video out | HDMI |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| Video ports quantity The number of ports (sockets) for video input or output. | 2 |
| Audio ports quantity | 8 |
| Headphone out The socket for connecting headphones to the device. |
 |
| Headphone connectivity How headphones connect to a device e.g. wirelessly or via a cable and connector. | 3.5 mm |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum operating distance The maximum distance from which you can operate the device. | 100 m |
| Colour depth | 8 bit |
| Maximum refresh rate | 60 Hz |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 18 Gbit/s |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Cable types supported | Cat6 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 220 mm |
| Depth The distance from the front to the back of something. | 130 mm |
| Height The measurement of the product from head to foot or from base to top. | 40 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.4 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 285 mm |
| Package depth The distance from the front to the back of the packaging. | 274 mm |
| Package height The distance from the top to the bottom of the packaging. | 100 mm |
| Package weight Weight of the packaged product. | 1.89 kg |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Manual |
|
| Cables included | IR, Power |
| AC adapter included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| SKU | 788699 |
| MPN | 38355 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter, HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
