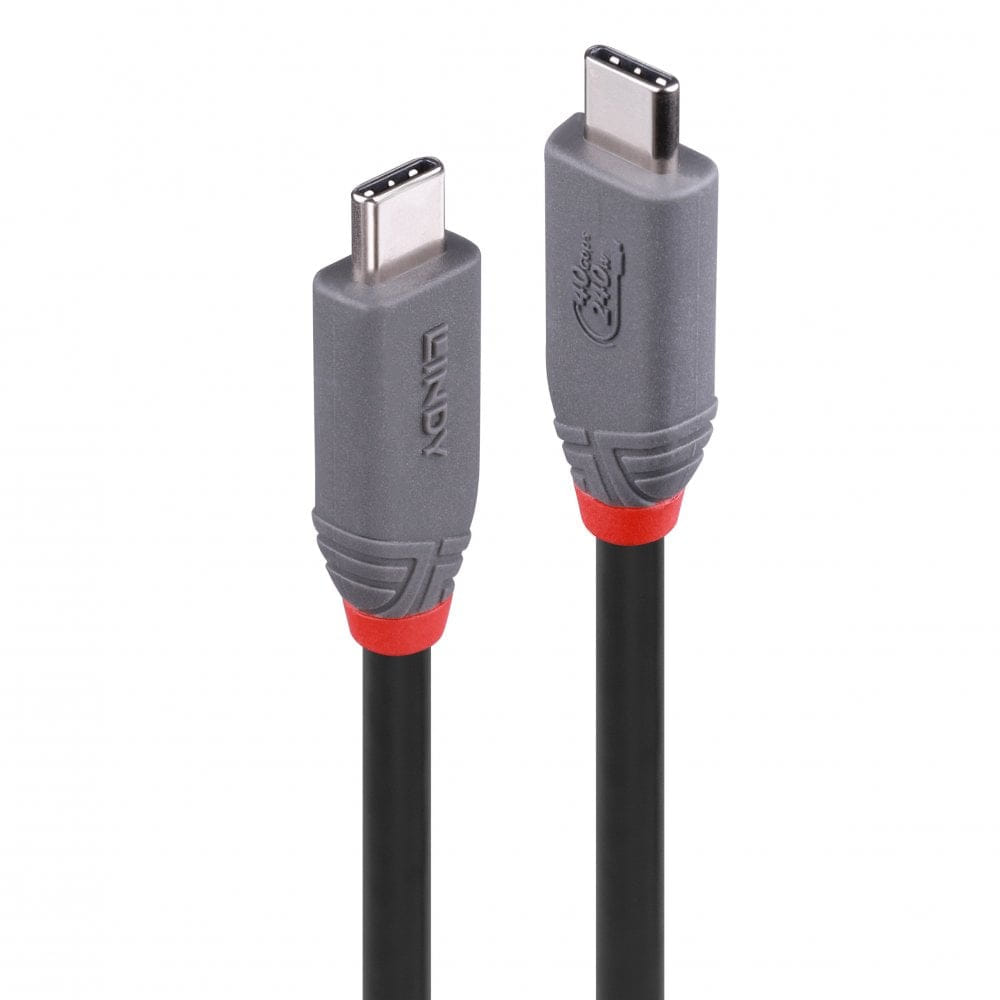

Lindy 0.8m USB 4 240W Type C Cable, Anthra Line, 0.8 m, USB C, USB C, USB4 Gen 3x2, 40000 Mbit/s, Black
The fully-featured Anthra Line USB 4 Type C to C cable from Lindy s Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
| Features | |
| Cable length How long the cable is. | 0.8 m |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | USB4 Gen 3x2 |
| Connector 1 This is the first connector in the device. | USB C |
| Connector 2 This is the second connector in the device. | USB C |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 23/30/34 |
| Connector material | Nickel |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Conductor material | Copper |
| Connector shielding |
 |
| Connector shield material | Copper |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 40000 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| USB Power Delivery |
|
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 240 W |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Certification | RoHS, REACH, California Proposition 65 & UL |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 4.8 mm |
| Bend radius (min) | 2.88 cm |
| Connector 1 dimensions (WxDxH) | 30 x 12.4 x 6.5 mm |
| Connector 2 dimensions (WxDxH) | 30 x 12.4 x 6.5 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | REACH, RoHS, UL ECOLOGO |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 80 °C |
| Certificates | |
| UN number | ` |
| Technical details | |
| Warranty period | 2 year(s) |
| SKU | 788519 |
| MPN | 36956 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
