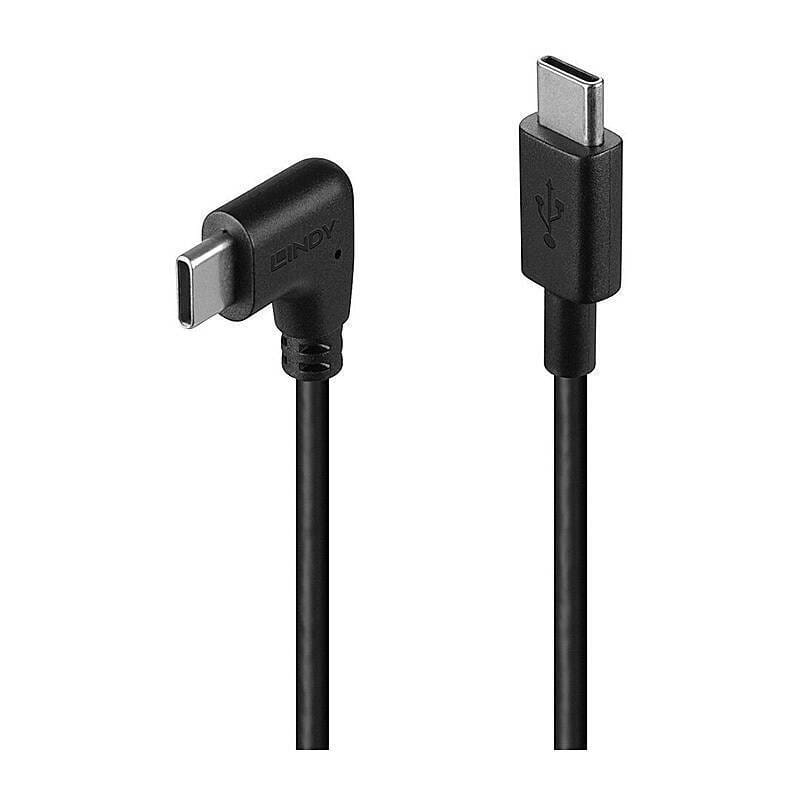

Lindy 0.5m USB 2.0 Type C Cable, 90Deg Right Angle
Features:
- Professional choice USB 2.0 Type C to C cable for commercial and high-performance AV and IT installations
- Supports data transfer speeds up to 480Mbps
- Robust PVC housing, gold-plated connectors and contacts
- Double-shielded cable, corrosion-resistant tinned copper conductors
- USB 2.0, 480Mbps; 10 year warranty
Specifications:
- Supported Bandwidth: 480Mbps
- Nominal Attenuation: 0.5-3m: 0.5Mhz – 400Mhz < 5.8db
- Minimum Bend Radius: 45mm (1.77in)
- Operating Temperature: -20°C - 80°C (-4°F - 176°F)
- Storage Temperature: -25°C - 85°C (-13°F - 185°F)
Connectors:
- Connector A: USB 2.0 Type C Male
- Connector B: USB 2.0 Type C Male
- Housing Material: PVC
- Connector Plating: 24K Gold Plated
- Pin Construction: Phosphor Bronze
- Pin Plating: 24K Gold Plated
- Dimensions, (approx.) WxDxH: 11.0x7.3x21.65mm (0.43x0.29x0.85in)
Cable Construction:
- Standard: USB 2.0
- Colour: Black
- Type: Round
- Jacket Diameter: 4.5mm (0.18in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge: 24/28/32AWG
- Shielding: Copper Braid 85%
Miscellaneous:
- Packaging Type: Polybag
- Warranty (Years): 10
- Certificated: RoHS, REACH, UL
| Features | |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | USB 2.0 |
| Connector 1 This is the first connector in the device. | USB C |
| Connector 2 This is the second connector in the device. | USB C |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Angled |
| AWG wire size | 22/28 |
| Connector material | Gold |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| Cable jacket material | Nylon/Polyvinyl Chloride (PVC) |
| Conductor material | Copper |
| Connector shielding |
 |
| Connector shield material | Aluminium |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| USB Power Delivery up to | 60 W |
| Nominal attenuation | 0.5Mhz- 400Mhz < 5.8db |
| Weight & dimensions | |
| Cable length How long the cable is. | 0.5 m |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 3.8 mm |
| Bend radius (min) | 5 cm |
| Connector 1 dimensions (WxDxH) | 6.5 x 23.7 x 10.9 mm |
| Connector 2 dimensions (WxDxH) | 7 x 24 x 6.8 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 0 - 70 °C |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Certification | RoHS, REACH, California Proposition 65 |
| Logistics data | |
| Warranty period | 10 year(s) |
| SKU | 809888 |
| MPN | 32004 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
