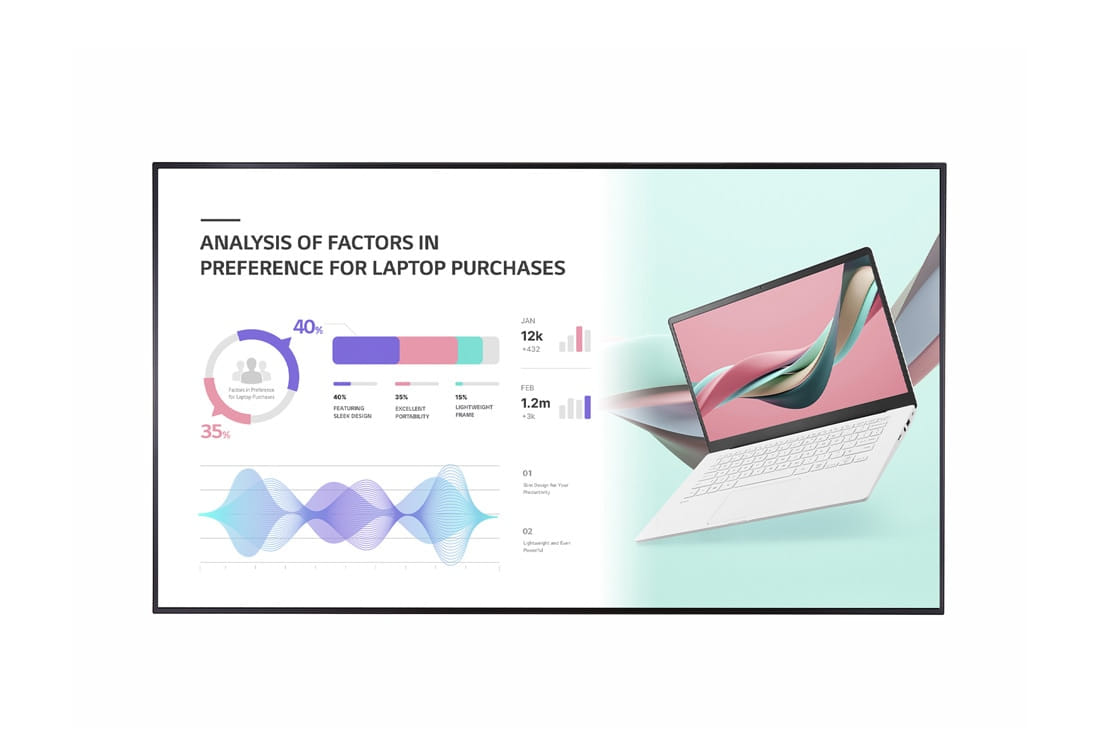

LG UH5J 86" UHD LED 500Nits 24/7 Digital Display
Item No:
691649
MPN:
86UH5J-H
$7,499.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
LG 86UH5J-H, Digital signage flat panel, 2.18 m (86"), IPS, 3840 x 2160 pixels, Wi-Fi, 24/7
Proper Display Brightness
With a recommend brightness of 500 cd/m 2 for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.
Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.
With a recommend brightness of 500 cd/m 2 for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.
Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.
| Display | |
| LED backlighting type Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit. | Edge-LED |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 2.18 m (86") |
| Display technology The technology used in the display e.g. plasma, LED. | IPS |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 3840 x 2160 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 500 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 8 ms |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1100:1 |
| Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing. | 1000000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display number of colours | 1.07 billion colours |
| Panel life The length of time that the panel can be used for. | 50000 h |
| Native refresh rate | 120 Hz |
| Haze rate | 28% |
| RGB colour space | NTSC |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 3 |
| HDMI version | 2.2/1.4 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
 |
| DVI-D ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB ports quantity | 1 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable). | 1 |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| RS-232C |
|
| Infrared data port A data port that uses infra-red data association (irDA) as the standard for wireless communications between computer and mobile phone devices. For example, to update the phone list on your irDA-enabled PC, you would line up the infra-red ports on each device and then transfer the phone information to your PC. This is a wireless transfer, so you don't need a cable or extra software. |
|
| Remote (IR) input | 1 |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Digital signage flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 600 x 400 mm |
| Bezel width (bottom) | 1.43 cm |
| Bezel width (side) | 1.43 cm |
| Bezel width (top) | 1.43 cm |
| Performance | |
| Purpose What the product is used for. | Commercial |
| On Screen Display (OSD) |
|
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish |
| Ambient light sensor |
|
| Operating hours (hours/days) | 24/7 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP5X |
| HDCP version | 1.4/2.2 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 215 W |
| Power consumption (sleep) | 0.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50-60 Hz |
| Heat dissipation The heat generated by the power supply. | 733.69 BTU/h |
| Computer system | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 16 GB |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Web OS |
| Weight & dimensions | |
| Display width | 1926.2 mm |
| Display depth | 60.6 mm |
| Display height | 1097.2 mm |
| Display weight | 49 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 2073 mm |
| Package depth The distance from the front to the back of the packaging. | 285 mm |
| Package height The distance from the top to the bottom of the packaging. | 1250 mm |
| Package weight Weight of the packaged product. | 72.5 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Batteries included |
|
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Features | |
| Heat dissipation (max) | 955.5 BTU/h |
| SKU | 691649 |
| MPN | 86UH5J-H |
| Brand | LG |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.lg.com/ |
