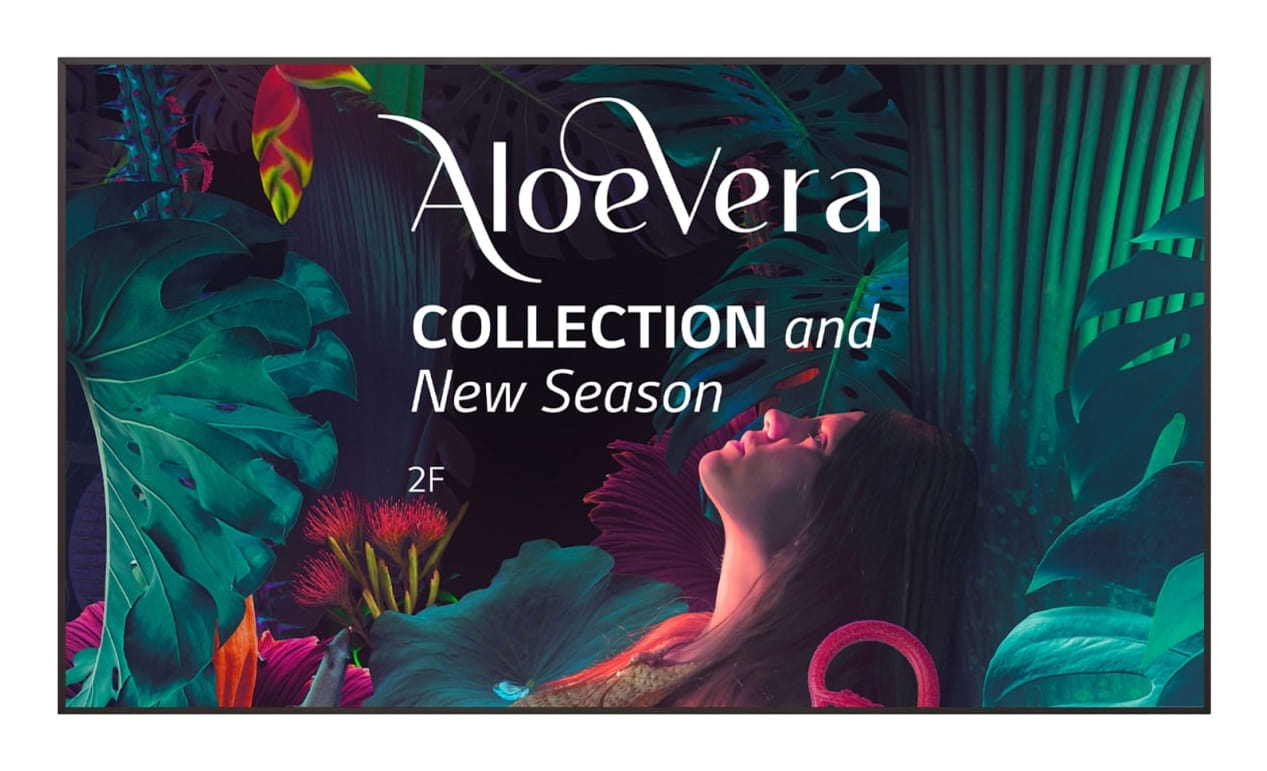

LG 86UH5N-M 86" Slim Pro 4K IPS 500Nits 24/7 Digital Signage Display
Item No:
816851
MPN:
86UH5N-M
$7,919.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
LG 86UH5N-M, Digital signage flat panel, 2.18 m (86"), LED, 3840 x 2160 pixels, Wi-Fi, 24/7
Large UHD Signage Display with Slim Design
Eye-catching Large Screen
A large screen effectively captures people's attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation.
Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.
Slim Depth with Even Bezel
Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.
Versatile Operation with Multi-USB
With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.
Enhanced Security Features
The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Eye-catching Large Screen
A large screen effectively captures people's attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation.
Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.
Slim Depth with Even Bezel
Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.
Versatile Operation with Multi-USB
With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.
Enhanced Security Features
The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
| Display | |
| Panel type | IPS |
| LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display. |
 |
| LED backlighting type Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit. | Edge-LED |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 2.18 m (86") |
| Display technology The technology used in the display e.g. plasma, LED. | LED |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 3840 x 2160 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 500 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 8 ms |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1200:1 |
| Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing. | 1000000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display number of colours | 1.07 billion colours |
| Panel life The length of time that the panel can be used for. | 50000 h |
| Colour depth | 8 bit |
| Native refresh rate | 120 Hz |
| Haze rate | 25% |
| Colour gamut | 95% |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 3 |
| HDMI input ports quantity | 3 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
|
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB ports quantity | 2 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| RS-232C |
|
| Remote (IR) input | 1 |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 20 W |
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Digital signage flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Orientation | Horizontal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 600 x 400 mm |
| Bezel width (bottom) | 1.34 cm |
| Performance | |
| Purpose What the product is used for. | Universal |
| On Screen Display (OSD) |
|
| Operating hours (hours/days) | 24/7 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Automatic brightness control |
|
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP5X |
| HDCP version | 1.4/2.2/2.3 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 197 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| Power consumption (max) The maximum amount of power used by the device. | 297 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50-60 Hz |
| Heat dissipation The heat generated by the power supply. | 672 BTU/h |
| Computer system | |
| Computer system |
|
| Computer system type | System on Chip (SoC) |
| Internal memory A computer's memory which is directly accessible to the CPU. | 16 GB |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | WebOS |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 6.0 |
| Weight & dimensions | |
| Display width | 1928.8 mm |
| Display depth | 29.7 mm |
| Display height | 1099.8 mm |
| Display weight | 52.7 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 2100 mm |
| Package depth The distance from the front to the back of the packaging. | 253 mm |
| Package height The distance from the top to the bottom of the packaging. | 1250 mm |
| Package weight Weight of the packaged product. | 65.5 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Batteries included |
|
| Cables included | AC, Phone |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Features | |
| Heat dissipation (max) | 1013 BTU/h |
| Technical details | |
| Real Time Clock (RTC) |
|
| Other features | |
| Audio output The type of audio output that the device produces, and the connector(s). | 1 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| SKU | 816851 |
| MPN | 86UH5N-M |
| Brand | LG |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.lg.com/ |
