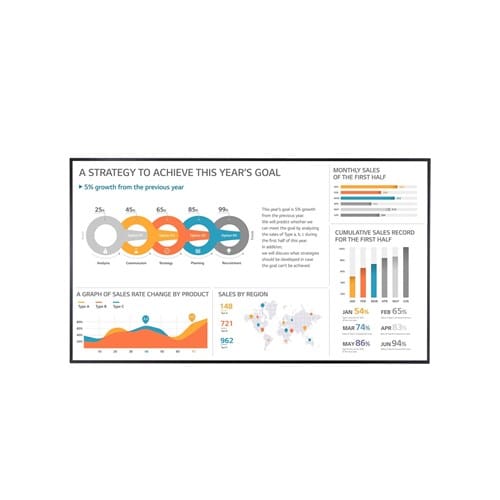

LG 86" 4K UHD 500Nits Haze Signage Display
Payment options
- Unavailable for shipping
- This product is not currently available for purchase
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
SUPERB PICTURE QUALITY
Clear View with Anti-Glare Coating
Viewers can be distracted by reflections and glare when watching a screen in a brightly lit environment. The UH5F-H series has increased levels of haze surface treatment which can enhance visibility and text readability.&8203;
SUPERB PICTURE QUALITY
ULTRA HD Resolution
The UHD resolution allows users to view details even when zooming in on the display with four times higher definition than FHD. LG IPS panels allow you to enjoy lifelike picture quality with minimal variation from wide viewing angles. &8203;
SLEEK AND PRACTICAL DESIGN
Narrow Bezel & Slim Depth
Compared to previous models the UH5F-H series has a reduced bezel size to provide a more immersive viewing experience. The slim depth also means that the immersive view is attained while maintaining a sleek look.&8203;
Top/Right/Left bezels as compared to the UH5E&8203;
PRODUCT RELIABILITY
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust reducing the risk of performance degradation.
PRODUCT RELIABILITY
30° Tilting Installation
When a display is installed in a high location it can be titled for a comfortable viewing experience. The UH5F-H series can be installed with 30° of tilt.&8203;
EASY INSTALLATION
Auto Screen Rotation
The UH5F-H series automatically detects its orientation landscape or portrait mode during the initial setup so manual menu rotation is not required. The direction of the on-screen display and background content will already be set when you turn a display on for the first time.&8203;
MEETING ROOM SOLUTION COMPATIBILITY
Compatible with AV Control System
The UH5F-H series has Crestron Connected Certification a function and network-based control system that is dedicated to meeting rooms and that meets a growing need in the corporate meeting space market.&8203;
MEETING ROOM SOLUTION COMPATIBILITY
Compatible with Video Conference System
For the optimal video meeting experience the UH5F-H series has certified its compatibility with Cisco Spark Room Kits a system that offers powerful and integrated control for a smarter video conference eliminating a waste of time to set up the picture quality or to change input on incoming calls.&8203;
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 2.18 m (86") |
| Display technology The technology used in the display e.g. plasma, LED. | IPS |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 3840 x 2160 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 500 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Panel life The length of time that the panel can be used for. | 50000 h |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 3 |
| HDMI input ports quantity | 3 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
 |
| DVI-D ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 2 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB ports quantity | 2 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable). | 1 |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| RS-232C |
|
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Digital signage flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 600 x 400 mm |
| Performance | |
| Purpose What the product is used for. | Corporate |
| Operating hours (hours/days) | 24/7 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 215 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Web OS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 1926.2 mm |
| Depth The distance from the front to the back of something. | 60.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 1097.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 49 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 2073 mm |
| Package depth The distance from the front to the back of the packaging. | 292 mm |
| Package height The distance from the top to the bottom of the packaging. | 1260 mm |
| Package weight Weight of the packaged product. | 61.1 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| SKU | 655179 |
| MPN | 86UH5F-H |
| Brand | LG |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Contact | https://www.lg.com/ |
