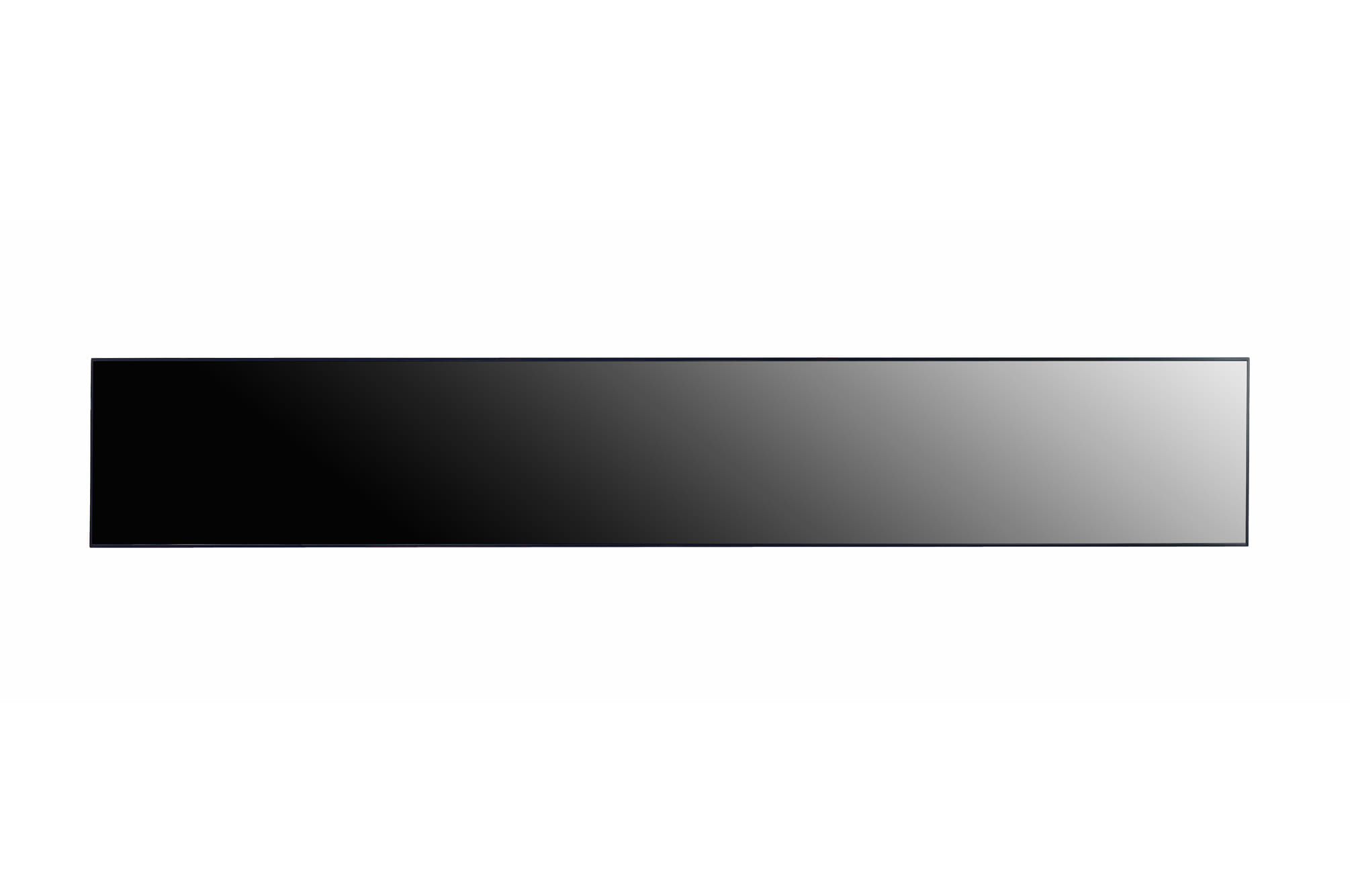

LG 86BH5F-M 86" UHD IPS 500NITS Commercial Panel
Item No:
727067
MPN:
86BH5F-M
$7,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
LG 86 86BH5F 4K 500NITS 11001 CONTRAST ULTRASTRETCH WEBOS 4.0 589 PANEL
Key Feature
- BrightnessTyp. 500 cd/m²
- Aspect Ratio 589
- Bezel 4.4 mmL/R 5.9 mmT/B
- Depth 81.7mm
- Interface HDMI 3 DP USB2 Audio DVI D RS232C RJ45 IR
589 Space Fitting Wide Screen
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 589 widescreen format. It can bring unused & leftover space to life by being installed without restriction.589 Extended Wide Format
It is a unique wide screen with 589 bar type which provides much more flexibility in playing content than the conventional display of 169 ratio.Ultra HD Resolution 3840 x 600
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.Multi Screen Mode with 4PBP
The Picture by Picture PBP feature allows you to show multi content in one single display by up to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen or provide visual impact to your customers in a different way.IP5x Certified Design
The IP5x Dust Proof Certification ensures that the product is completely protected from dust eliminating the risk of performance degradation.User Friendly UX
The 86BH5F is equipped with a user friendly UX to simplify approach flows groups similar functions together and adopts an intuitive GUI for ease of use. When using the display in portrait mode OSD can also be adjusted accordingly.LAN Daisy Chain Management
By using this daisy chained network feature you can execute commands such as controlling monitoring and even updating firmware.Real Time Monitoring with LG ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare. It remotely manages the status of displays in client workplaces for fault diagnosis and remote control services ensuring the stable operation of clients businesses.| Display | |
| Panel type | IPS |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 2.18 m (86") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 3840 x 600 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 500 cd/m² |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 8 ms |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1100:1 |
| Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing. | 500000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display number of colours | 1.07 billion colours |
| Haze rate | 3% |
| RGB colour space | NTSC |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 3 |
| HDMI version | 2.2 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
 |
| DVI-D ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 2 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB ports quantity | 2 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable). | 1 |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| RS-232C |
|
| Remote (IR) input | 1 |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Digital signage flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 600 x 200 mm |
| Bezel width (bottom) | 5.9 mm |
| Bezel width (side) | 4.4 mm |
| Bezel width (top) | 5.9 mm |
| Performance | |
| Purpose What the product is used for. | Retail |
| Operating hours (hours/days) | 24/7 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 220 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Heat dissipation The heat generated by the power supply. | 751 BTU/h |
| Computer system | |
| Computer system |
|
| Internal memory A computer's memory which is directly accessible to the CPU. | 8 GB |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Web OS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 2158.3 mm |
| Depth The distance from the front to the back of something. | 81.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 348.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 20.5 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Cables included | AC, DisplayPort, IR, IR sensor |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Technical details | |
| Special features | CB, NRTL, FCC Class "A", CE, KC, |
| Sustainability certificates | ErP |
| SKU | 727067 |
| MPN | 86BH5F-M |
| Brand | LG |
| Product Condition | Brand New/Unused |
| Screen Size (Inches) | 86.00 Inch |
| Refresh Rate (Hz) | 60Hz |
| Screen Resolution | 3840x600 |
| Input | DisplayPort / DP, DVI, HDMI |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lg.com/ |
